28 units will be available shortly.

Express post shipping available (product is on backorder)

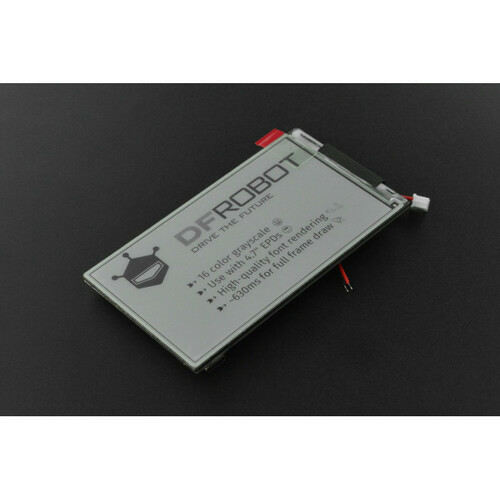

Integrated with the ESP32-D0WD, this 540*960 4.7" E-ink display comes with 16MB Flash and 8MB PSRAM, which can work well with other touch screens. It supports 16 grayscale levels and partial refresh. Compared with a regular LCD, E-ink displays are easier on the eyes, which makes them a good choice for reading or viewing for longer periods. Meanwhile, E-ink screens are low power consumption and have the ability to retain the image even if power to the display is terminated.

A 6pin touch screen interface is reserved as an optional accessory to facilitate your application. There are 5 buttons on the side: 3 of them are custom buttons, which can define functions flexibly; and one of them is the reset button. It also reserves 7 expansion IO ports for connecting other devices. Its back is designed with a PH 2.0 pitch 3.7V battery connector.


  • Desktop weather station
  • STEM education
  • IoT equipment
  • Shelf label
  • Message board

  • Specification
  • Controller: ESP32-WROVER-E (ESP32-D0WDQ6 V3)
  • Flash: 16MB
  • PSRAM: 8MB
  • Resolution: 540(H)×960(V)
  • Display Grayscale Level: 16 levels
  • Custom Buttons: 3
  • IO Port: 7
  • Battery Connector: PH 2.0 interface
  • Battery Charge and Discharge Protection Chip: HX6610S
  • Display Size: 4.7 inches
  • Partial Refresh: support
  • Touch Screen Interface: 6pin touch screen interface

  • Documents

  • Product wiki

  • Shipping List
  • E-ink Screen 4.7" x1
  • USB to Type-C Data Cable (30CM) x1
  • Power Cable x1
  • The 4.7" E-ink Screen for ESP32 appears in the following collections:

    SKU DF-DFR0835
