JST to Breadboard Jumper (3-pin)
This is a simple jumper adapter cable that comes pre-terminated with a female JST connector on one end and a breadboard hookup pigtail on the other. This cab...

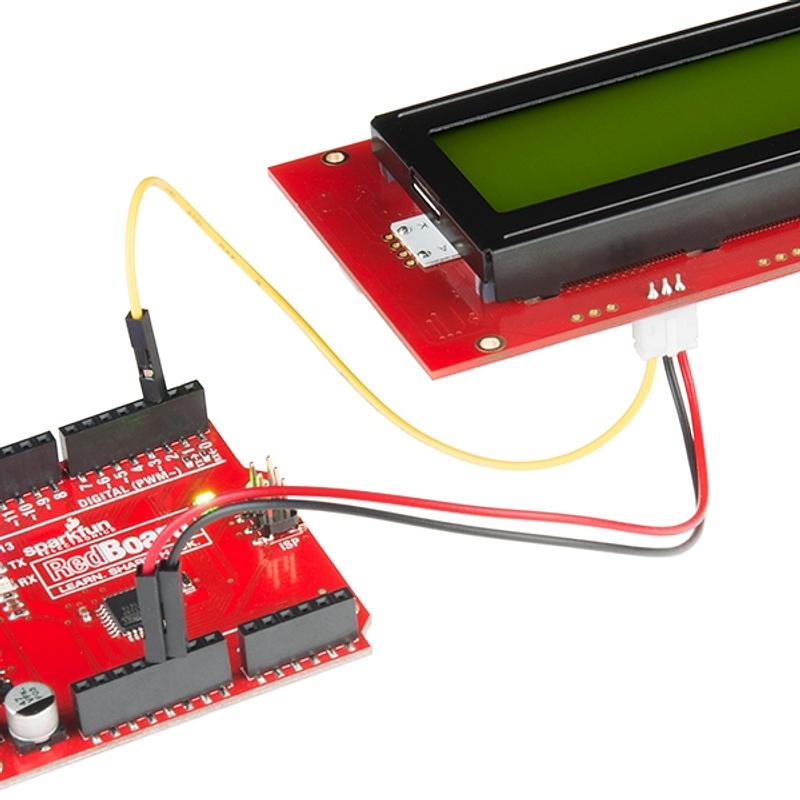

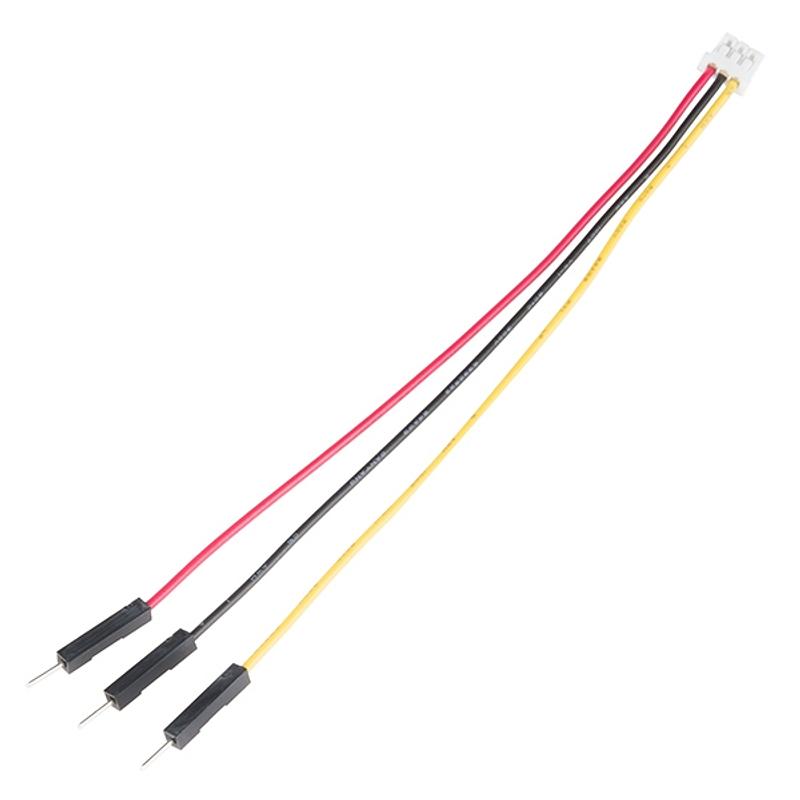

This is a simple jumper adapter cable that comes pre-terminated with a female JST connector on one end and a breadboard hookup pigtail on the other. This cable makes it easy to connect components with a JST connector to a breadboard or an Arduino-based device’s pins.

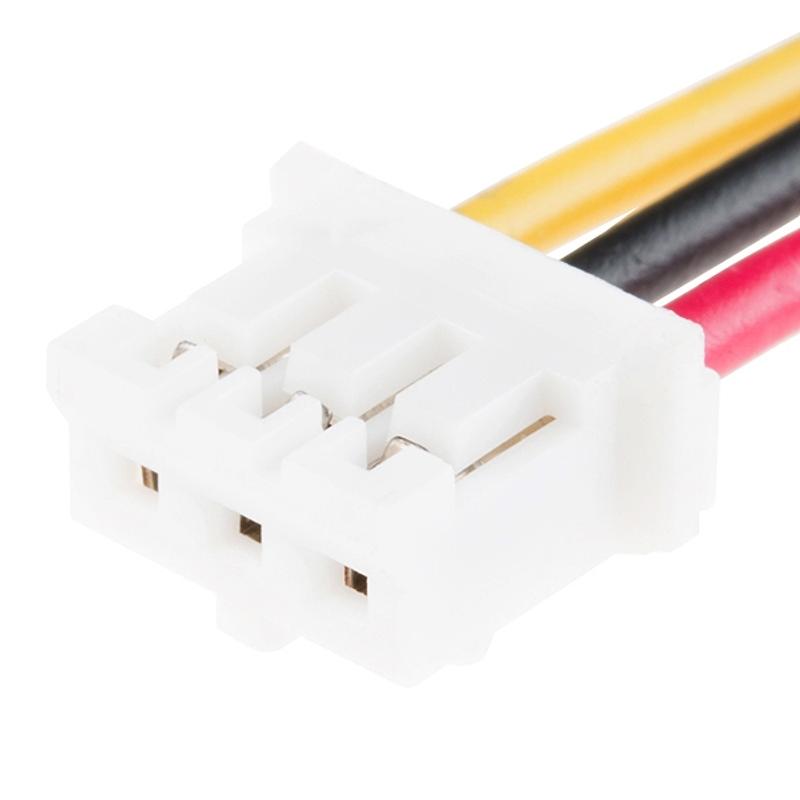

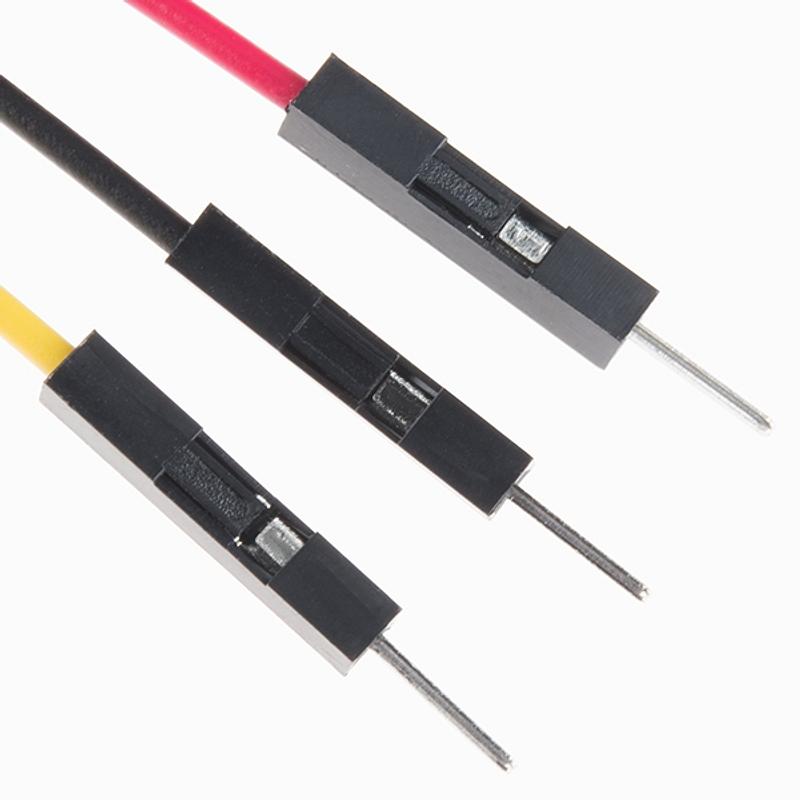

Wire length is 140mm (about 5.5 inches) long. The adapter’s wires have been color coded to Red, Black, and Yellow. Additionally, the female JST connector featuring a basic 2mm pitch while the male hookup pins can easily insert into a standard 0.1" connector.
Documents
Jargon buster
Plain-language definitions for the technical terms used above.
- 2mm pitch
- Pitch is the distance between the centres of neighbouring pins on a connector. A 2mm pitch header is smaller than the common 2.54mm breadboard spacing, so you need matching cables and headers rather than standard breadboard jumper leads.
