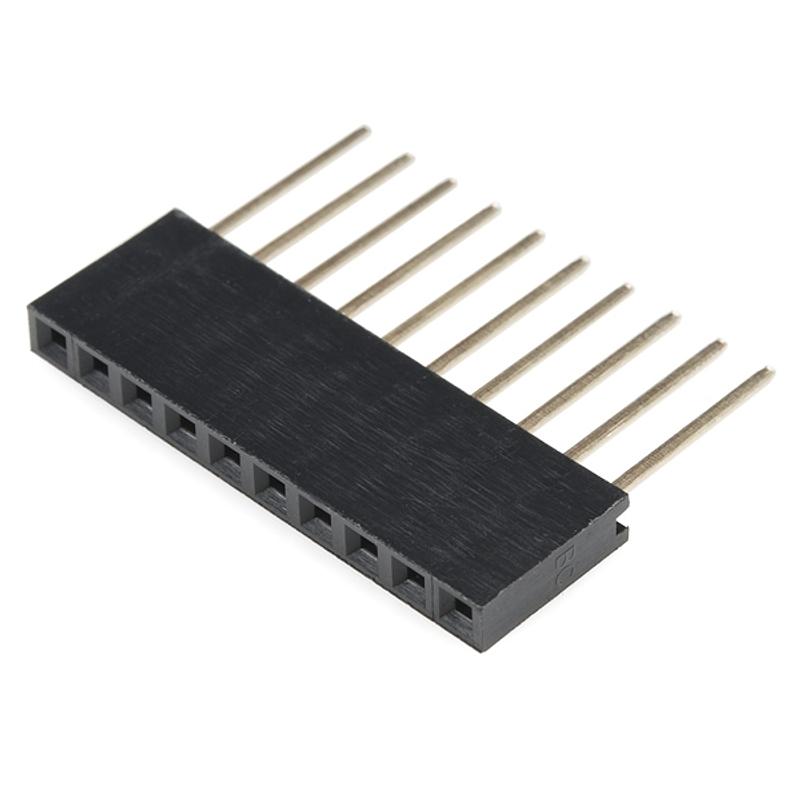

Arduino Stackable Header - 10 Pin
A 10-pin female header with extra-long legs, designed for stacking Arduino R3-compatible shields. The extended pins pass through a shield's PCB and connect t...
Get notified when back in stock
A 10-pin female header with extra-long legs, designed for stacking Arduino R3-compatible shields. The extended pins pass through a shield's PCB and connect to the board below, letting you stack multiple shields on a single Arduino.
Key Features
- 10-Pin Female Header – Standard 0.1″ (2.54 mm) pitch
- Extra-Long Legs – Designed for shield stacking
- Arduino R3 Compatible – Matches standard Arduino header layout
Specifications
- Pins: 10
- Pitch: 0.1″ (2.54 mm)
- Type: Female, stackable
Ideal For
- Stacking Arduino shields
- Prototyping with multiple expansion boards
- Replacing or adding headers to custom shields
Package Contents
- 1× 10-Pin Stackable Header
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
