SparkFun Solder-able Breadboard
A solderable PCB that mirrors the layout of a standard solderless breadboard, with the same pin connections and power rails. Once you've finished prototyping...
Get notified when back in stock

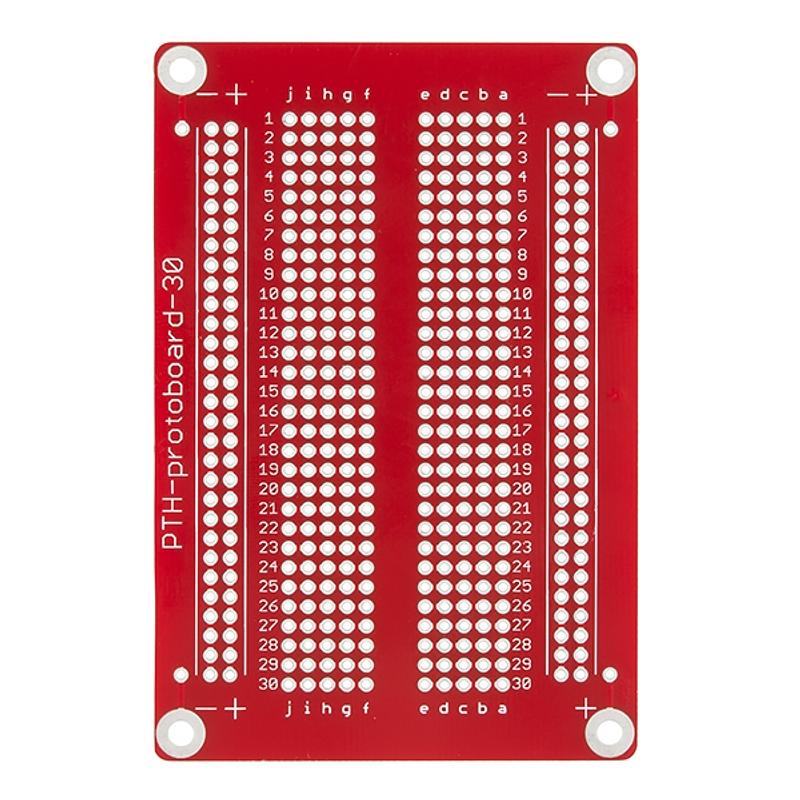

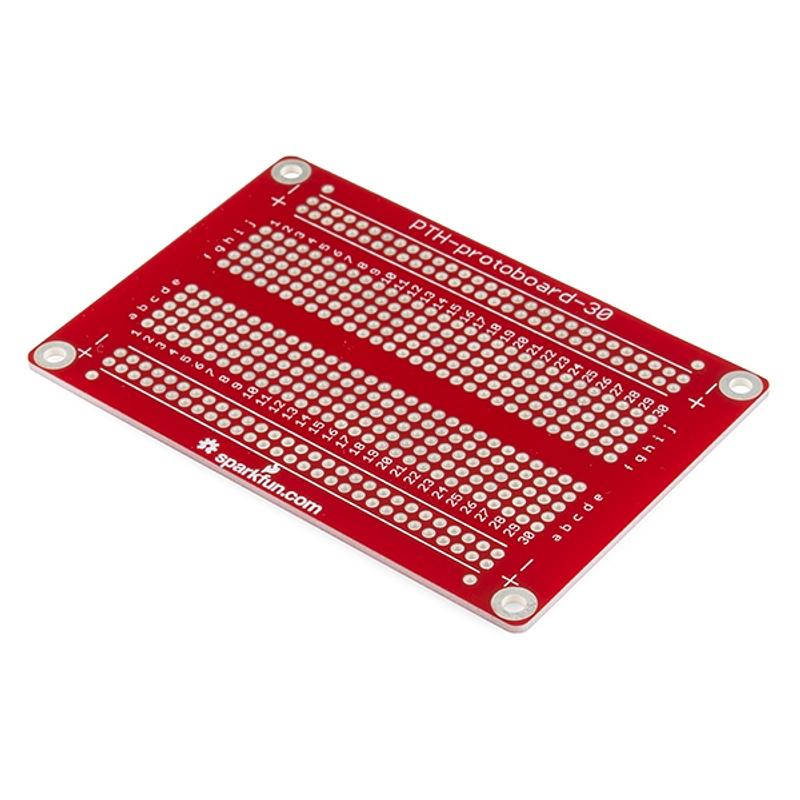

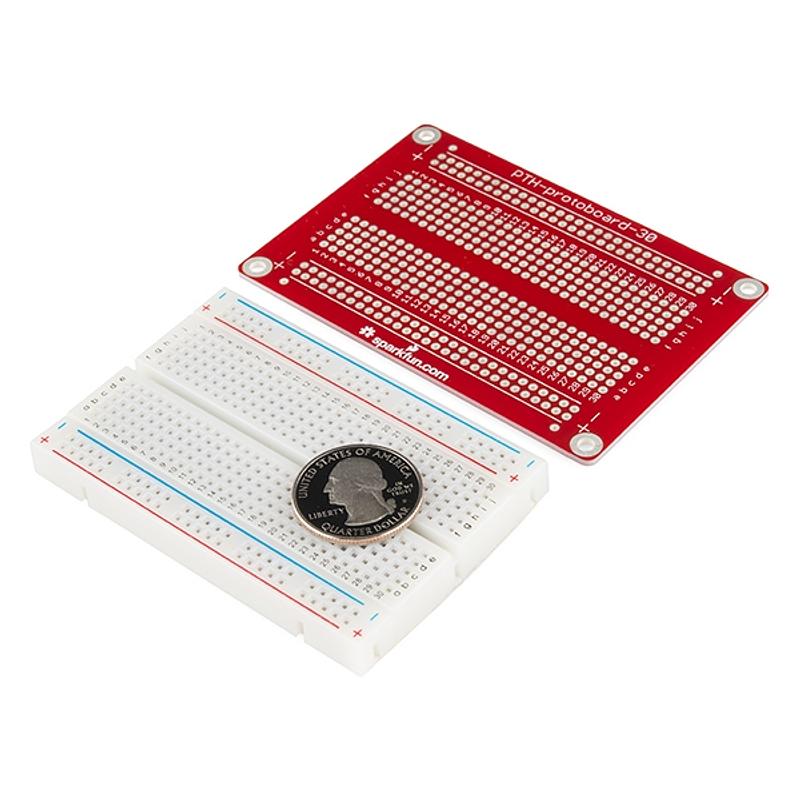

A solderable PCB that mirrors the layout of a standard solderless breadboard, with the same pin connections and power rails. Once you've finished prototyping on a breadboard, transfer your circuit to this board and solder everything in place for a permanent, reliable version of your project.
Key Features
- Breadboard Layout – Matching pin rows and power rails for direct transfer from a solderless breadboard
- Through-Hole Pads – Standard pitch for DIP components, headers, and discrete parts
- Permanent Prototyping – Solder connections in place for a durable finished circuit
Ideal For
- Making breadboard prototypes permanent
- One-off circuit builds that don't justify a custom PCB
- Educational projects and electronics coursework
Package Contents
- 1× Solderable breadboard PCB
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- PCB
- A printed circuit board (PCB) is a board, usually rigid, with etched copper tracks that connect electronic components together without loose wiring. Components are mounted on the board and signals route between them through the copper layout.
- solderless breadboard
- A reusable board with rows of internally connected holes for building circuits by pushing in components and jumper wires, with no soldering required. It lets you prototype and rewire a circuit quickly and reversibly before committing to a permanent, soldered build.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
Find this product in
Brands
Prototyping & Wiring
SparkFun Solder-able Breadboard Schematic
Schematic · 64.1 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 560.3 KB · Click any page to view full size
Resources & Downloads
Guides, code examples, and more
Source Code
Open-source libraries, firmware & example projects for this product
Solderable breadboard that mirrors the SIK solderless board.
d2f918f
about 1 year ago
· 8 commits
- hardware Changed after reviewing prototype over 12 years ago
- .gitignore Initial commit. almost 13 years ago
- README.md Update README.md about 1 year ago
