2inch LCD Display Module for Raspberry Pi Pico, 65K Colors, 320×240, SPI
We have ✅ 1 available of the WS-19888 in our Sydney warehouse. An extra 10 units available with a short lead time.

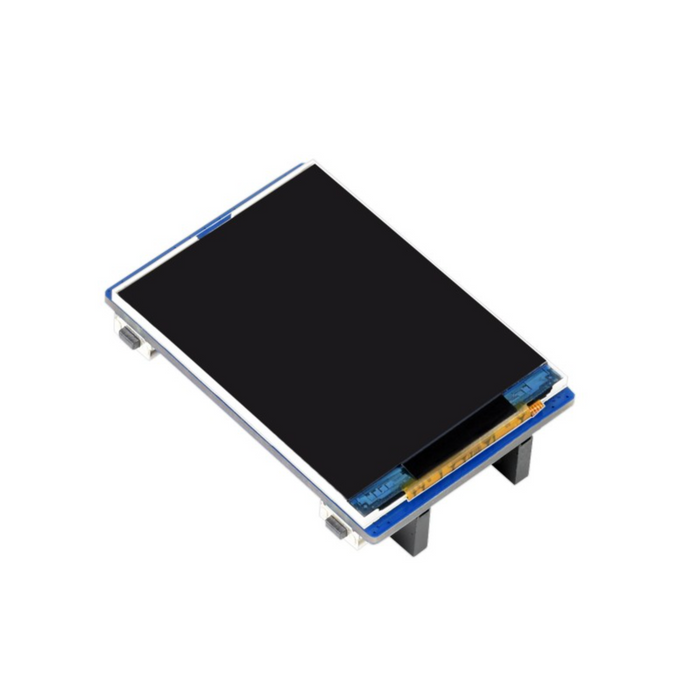

The Waveshare Pico-LCD-2 is a 2-inch IPS LCD display module designed to plug directly onto a Raspberry Pi Pico via its onboard female pin header. With 320×240 resolution and 65K RGB colours, it delivers clear, vibrant visuals for your Pico projects.
The module uses an SPI interface requiring minimal IO pins, and includes four user buttons for easy interaction. Development resources are provided for both C/C++ and MicroPython.
Key Features
- 2-inch IPS Display – 320×240 resolution with 65K RGB colours for clear, colourful output
- SPI Interface – 4-wire SPI bus requiring minimal IO pins
- ST7789VW Driver – Embedded display driver for reliable performance
- Direct Pico Mounting – Female pin header for plug-and-play attachment to Raspberry Pi Pico
- 4× User Buttons – Built-in buttons for easy user interaction
- Wide Voltage Range – Operates from 2.6 V to 5.5 V
Specifications
- Display Size – 2 inches
- Resolution – 320×240 pixels
- Display Panel – IPS
- Colour Depth – 65K RGB
- Driver IC – ST7789VW
- Interface – 4-wire SPI
- Operating Voltage – 2.6–5.5 V
- Pixel Size – 0.1275 × 0.1275 mm
- Active Area – 40.80 × 30.60 mm
- Board Dimensions – 52.00 × 35.00 mm
Ideal For
- Raspberry Pi Pico display projects
- Handheld devices and portable instruments
- Status displays and dashboards
- Learning embedded graphics programming with MicroPython or C/C++
Package Contents
- 1× 2-inch LCD Display Module for Raspberry Pi Pico
