960×680, 13.3inch E-Ink display HAT (K) for Raspberry Pi, SPI interface
960×680, 13.3inch E-Ink display HAT (K) for Raspberry Pi, SPI interface

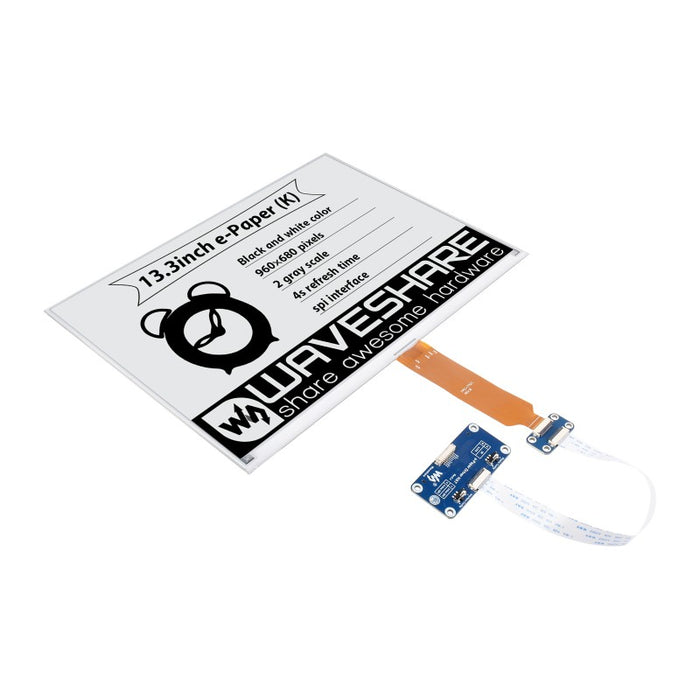

13.3" e-Paper HAT (K)
low power consumption, wide viewing angle, paper-like displaying without electricity
Ideal for price tags, shelf labels, industrial instruments...
- Size13.3"
- Resolution960×680
- Viewing Angle>170°
- Display ColorBlack / White
- Grey Scale2
- CommunicationSPI
- Display PanelE-paper
- ExperiencePaper-like
- EnvironmentAmbient Light Required
- Display TypePassively Reflective
Features at a glance
- No backlight, keeps displaying last content for a long time even when power down
- Ultra low power consumption, basically power is only required for refreshing
- Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards, Jetson Nano
- SPI interface, for connecting with controller boards like Raspberry Pi/Jetson Nano/Arduino/STM32, etc.
- Onboard voltage translator, compatible with 3.3V / 5V MCUs
- Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)
Specifications
Advantages of EINK
E-paper display utilizes microcapsule electrophoretic technology for displaying, the principle is: charged particles suspended in clear fluid will move to sides of microcapsule when electric field is applied, making the microcapsule become visible by reflecting ambient light, just as traditional printed paper.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
E-paper display will clearly display images/texts under lamplight or natural light, requires no backlight, and features nearly up to 180° viewing angle. It is usually used as e-reader due to its paper-like effect.
Standard Raspberry Pi 40PIN GPIO header
compatible with Raspberry Pi series boards, Jetson Nano
Raspberry Pi in the photo is NOT included.
Onboard SPI control interface
for use with other controller boards like Raspberry Pi/Jetson Nano/STM32/Arduino
Application examples
Suitable for price Tags, asset/equipment Tags, shelf labels, conference name tags...
Product show
Outline dimensions
Resources & Services
* Resources for different product may vary, please check the wiki page to confirm the actually provided resources.
- It usually takes about 0.3s for partial refresh
- Pi Header: standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards
- 13.3inch e-Paper (K) x1
- e-Paper Driver HAT x1
- RPi screws pack (2pcs) x1
- GH1.25 9PIN cable ~20cm x1
1
2
3
4
