SparkFun Solder-able Breadboard - Mini
This is the Mini SparkFun Solder-able Breadboard. A bare PCB that is the exact size as our mini modular breadboards with the same connections to pins. This b...
Get notified when back in stock

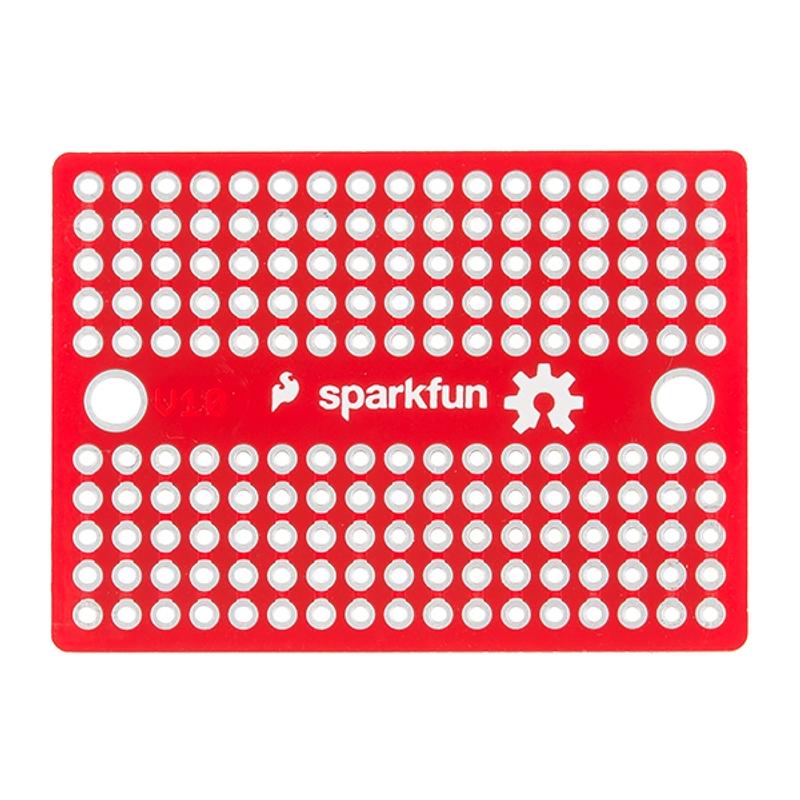

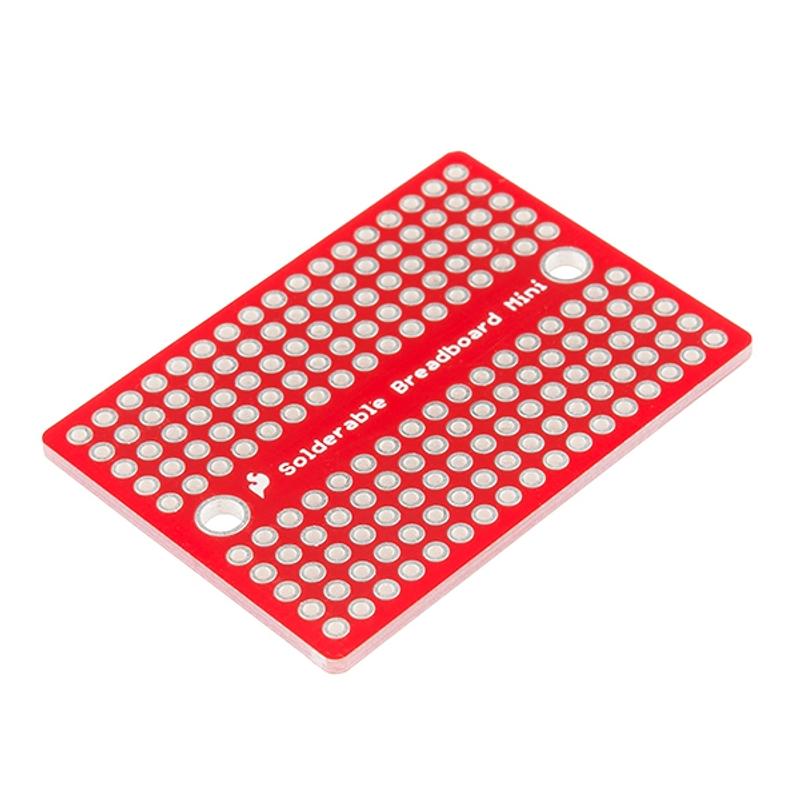

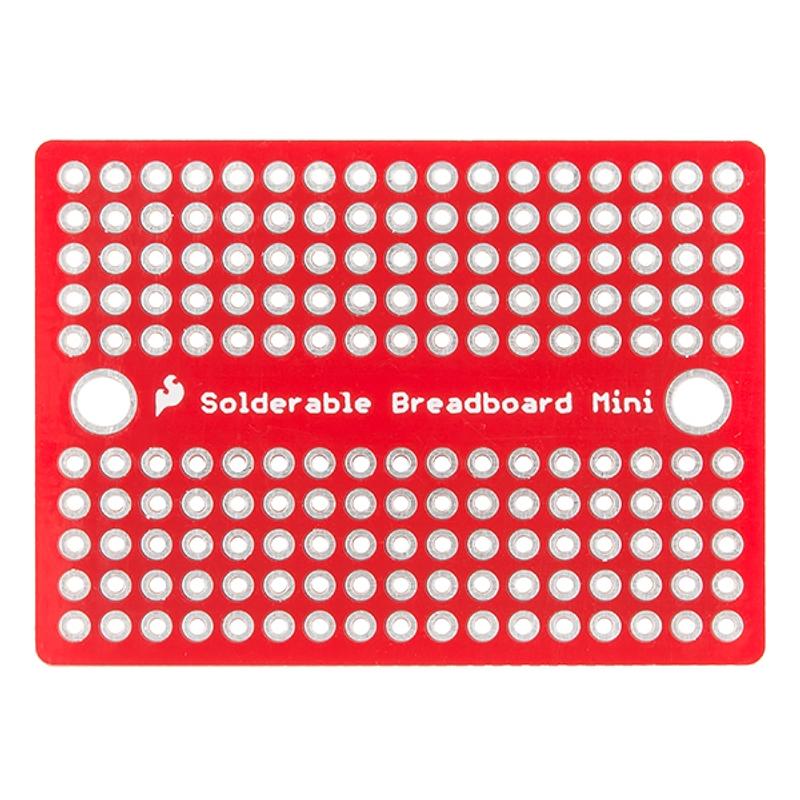

This is the Mini SparkFun Solder-able Breadboard. A bare PCB that is the exact size as our mini modular breadboards with the same connections to pins. This board is especially useful for preserving a prototype or experiment you just created on a solderless breadboard by soldering all the pieces in place.
Documents:
- Schematic
- Eagle Files
- GitHub (Design Files)
