Rain Drop Sensor Module
Give your projects weather awareness in seconds. This compact module detects the very first drop of rain and reports the strength of the shower, making it i...
Get notified when back in stock
Give your projects weather awareness in seconds. This compact module detects the very first drop of rain and reports the strength of the shower, making it ideal for smart gardens, automatic window controls, mini weather stations and more.
View the step-by-step tutorial ›
Pin-out
- VCC (3 · 3 V) – connect to the 3 · 3 V pad on the micro:bit
- GND – common 0 V reference
- DO • Digital Output – goes HIGH when rain is detected (trigger level set by the onboard potentiometer)
- AO • Analogue Output – 0 – 3 · 3 V signal proportional to rainfall intensity
How it works

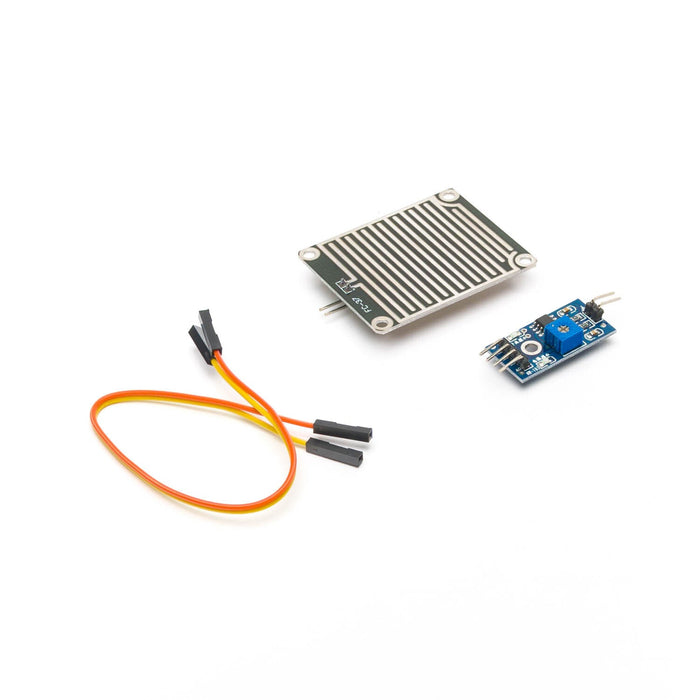

The removable top plate is etched with interleaved tracks. When raindrops bridge these tracks the module’s comparator activates, sending a HIGH on DO while AO delivers a rising analogue voltage you can read with pin1.read_analog().
The two-wire cable linking the main board to the sensor plate is clearly marked — the lead with the ⏚ symbol must be connected to GND.
Jargon buster
Plain-language definitions for the technical terms used above.
- GND
- GND is the ground or reference connection (0 V) for a circuit. When connecting two devices together, their grounds must be joined so both agree on what counts as a low or high signal.
- potentiometer
- A variable resistor usually turned with a knob or shaft to create an adjustable electrical signal. It is often used for inputs such as volume, brightness or position, so it helps beginners learn how a microcontroller reads changing values.
- VCC
- VCC is the positive power-supply connection on a chip or module. Connecting it to the correct supply voltage is needed for the part to power on and helps avoid damaging the electronics.
