P-Channel MOSFET 60V 27A
$4.19
|
In stock
The FQP27P06 is a P-channel enhancement-mode power MOSFET rated for −60V and −27A. With a very low on-resistance of 70 mΩ and a gate threshold compatible wit...
Estimated Delivery
Arrives
Disclaimer
Secure checkout

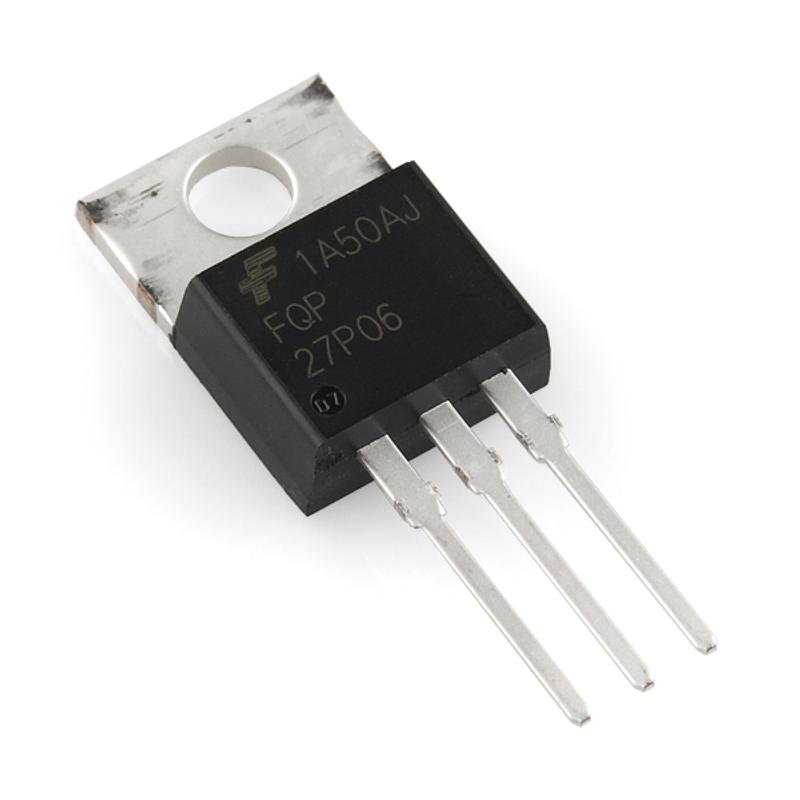

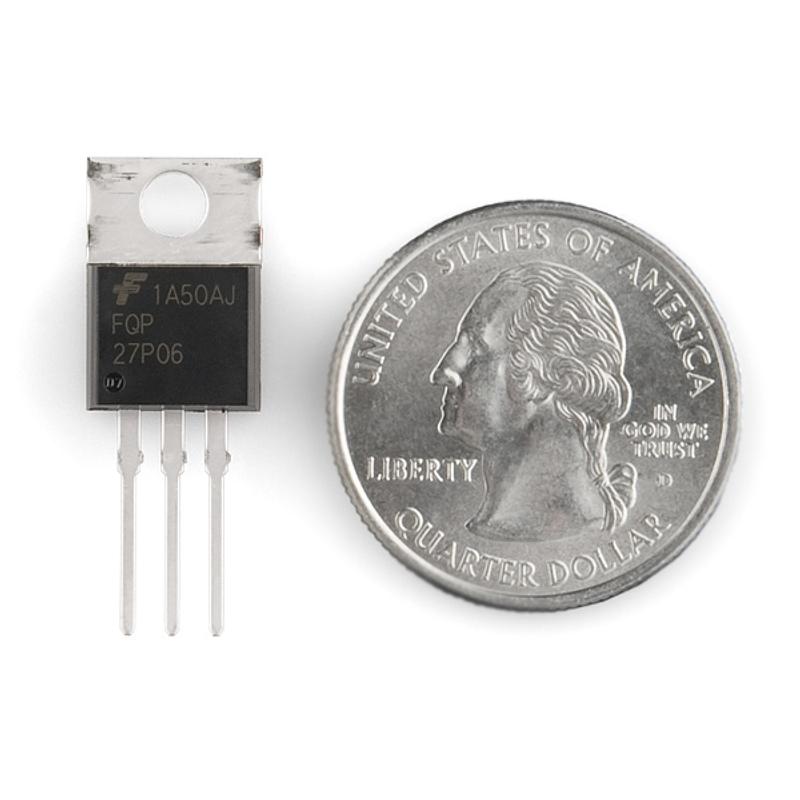

The FQP27P06 is a P-channel enhancement-mode power MOSFET rated for −60V and −27A. With a very low on-resistance of 70 mΩ and a gate threshold compatible with 5V logic, it is well suited for high-side switching controlled by microcontrollers or mechanical switches.
Specifications
- Type – P-Channel enhancement mode MOSFET
- Drain-Source Voltage (Vds) – −60V
- Continuous Drain Current (Id) – −27A
- On-Resistance (Rds(on)) – 70 mΩ
- Gate Drive – 5V logic compatible

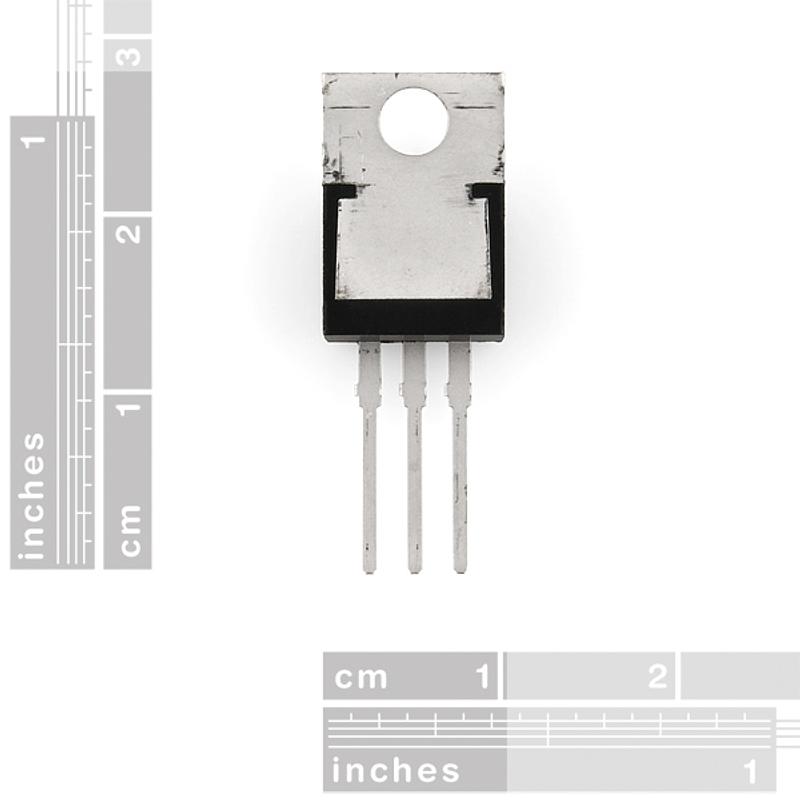

- Package – TO-220
Ideal For
- High-side load switching from a microcontroller
- DC motor control
- Switched-mode power supplies
- Reverse polarity protection
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- microcontroller
- A microcontroller is a small computer on a chip that runs your program and controls connected inputs and outputs. For this product, it is the part that reads buttons and sensors, drives the display and speaker, and communicates over Bluetooth.
- reverse polarity protection
- A circuit feature that helps protect the board if power is connected the wrong way around. It matters because it can reduce the chance of damaging the breakout during wiring mistakes, especially in classroom or prototyping use.
