Freetronics
Microcontroller Labels - Arduino pinout
All Products
Australian Made
New Arrivals
Robotics & Coding
Arduino
Arduino Breadboards and Prototyping Accessories
High School
Microcontrollers & Development Boards
Arduino Education
Digital Technologies
Education
$3.00
|
Only 4 left
A set of 10 self-adhesive pinout labels for ATmega328 and ATmega168 microcontrollers. Stick one on top of your DIP-package chip and instantly see the Arduino...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

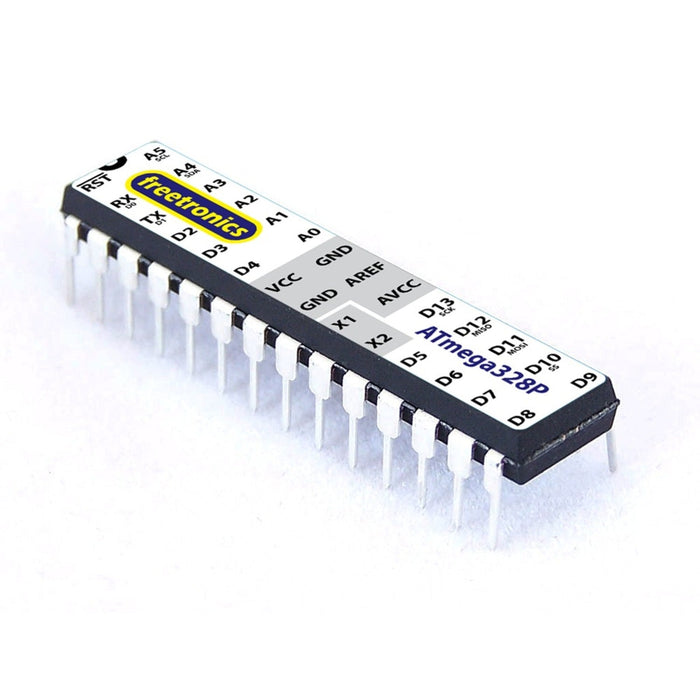

A set of 10 self-adhesive pinout labels for ATmega328 and ATmega168 microcontrollers. Stick one on top of your DIP-package chip and instantly see the Arduino pin mapping for each physical pin — no more checking datasheets mid-project.
Key Features
- Arduino Pin Mapping – Shows Arduino pin numbers alongside physical chip pins
- Self-Adhesive – Peel-and-stick application directly on the microcontroller
- ATmega328/168 Compatible – Fits standard DIP-28 package chips
Ideal For
- Breadboard Arduino projects
- Standalone ATmega328/168 circuits
- Prototyping and development
Package Contents
- 10× Self-adhesive microcontroller pinout labels
Note: Microcontroller not included.
Jargon buster
Plain-language definitions for the technical terms used above.
- microcontroller
- A microcontroller is a small computer on a single chip that runs a stored program and controls connected inputs and outputs such as buttons, sensors, displays and communication interfaces. In a device built around one, it is the part that executes the code and coordinates the device's behaviour.
