MDV 2x2A DC Motor Controller

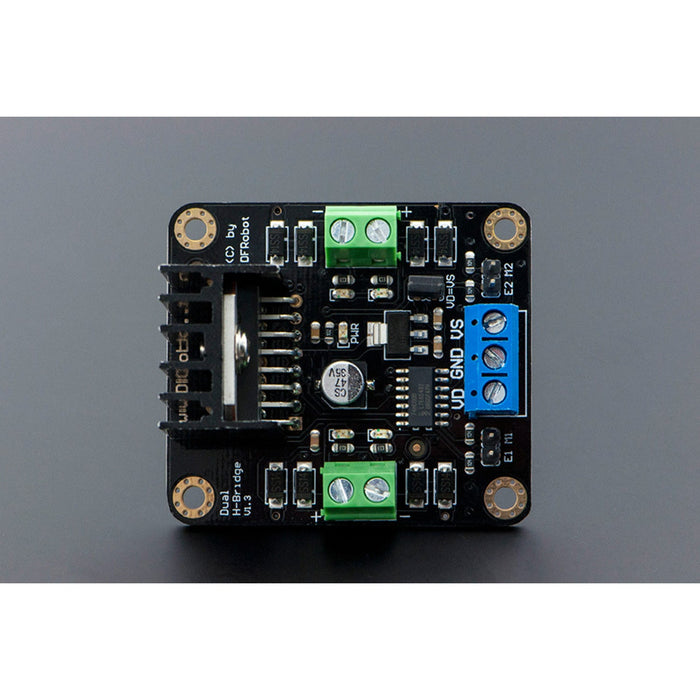

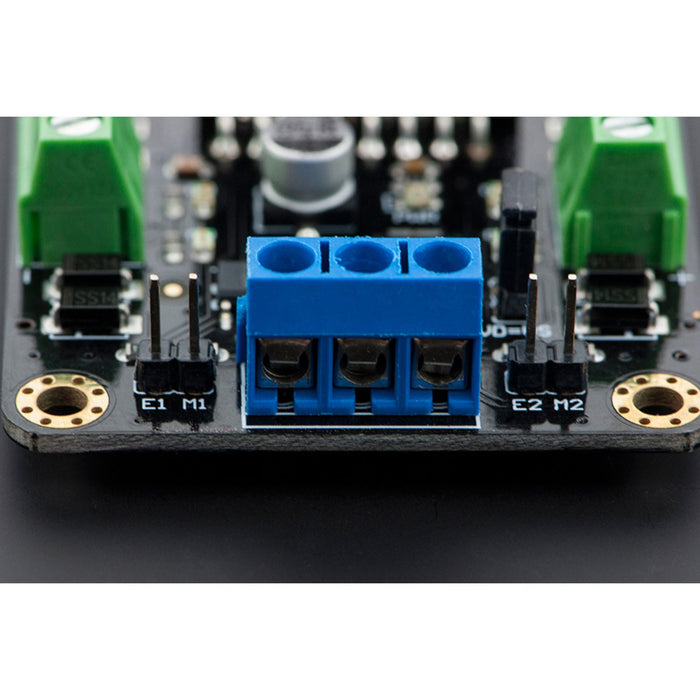

A dual H-bridge DC motor controller based on the L298N driver chip, capable of driving two bi-directional DC motors at up to 2 A per channel. The module acce...

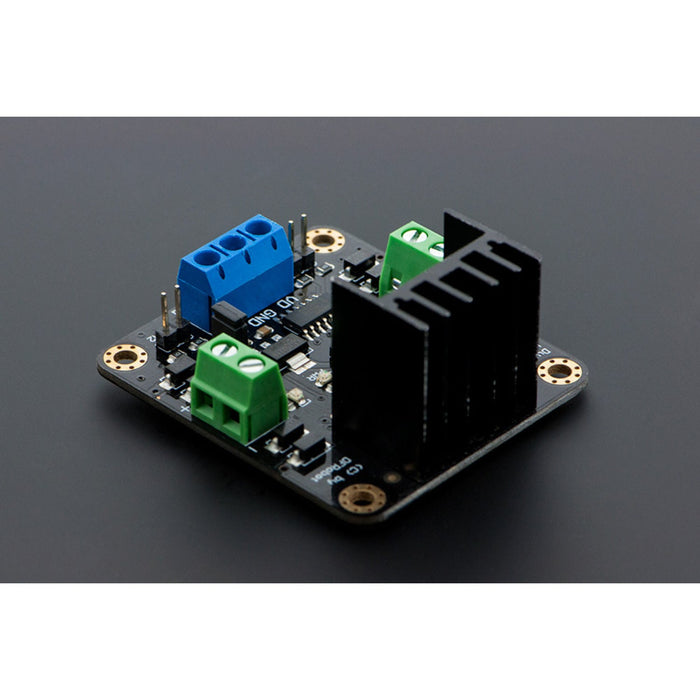

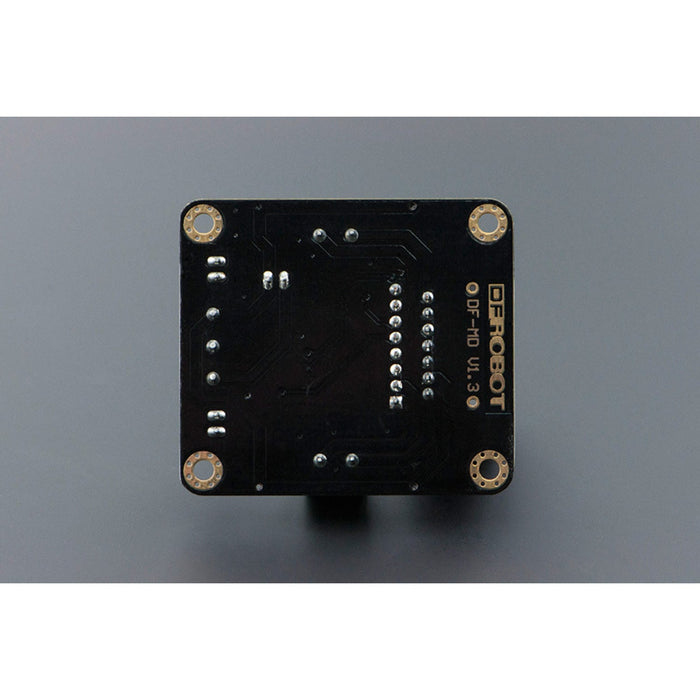

A dual H-bridge DC motor controller based on the L298N driver chip, capable of driving two bi-directional DC motors at up to 2 A per channel. The module accepts a wide motor supply voltage of 4.8–46V and includes high-speed protection diodes and an enlarged heatsink for improved thermal performance.
With standard screw-hole mounting and a breakout module design, it's ideal for flat-mount applications where a stacked Arduino shield isn't practical.
Specifications
- Driver Chip – L298N dual H-bridge
- Motor Supply Voltage (Vs) – 4.8–46V
- Logic Supply Voltage – 6–12V
- Drive Current – Up to 2 A per channel
- Logic Current – 36 mA
- Max Power Dissipation – 25W (at 75°C)
- Control Signal Levels – High: 2.3V–Vss, Low: -0.3V–1.5V
- Operating Temperature – -25°C to +130°C
- Dimensions – 47 × 53 mm
- Weight – ~29 g
Ideal For
- Dual DC motor control in robotics
- Bi-directional motor driving applications
- Flat-mount projects where stacked shields aren't suitable
Package Contents
- 1× 2A Dual Motor Controller (MDV)
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout is a small circuit board that makes a tiny or hard-to-solder component easier to connect to with standard pins. It matters because this OLED module can be wired into a microcontroller project without needing to solder directly to the display’s fine contacts.
- Power dissipation
- Power dissipation is electrical energy being turned into heat inside a component. It matters because too much heat can reduce efficiency, affect reliability, or require a larger component or better cooling.
- Shield
- An add-on board that plugs into a main controller board to give it extra features such as sensing, motor control or communication. Knowing a product supports shields helps you judge whether it can connect neatly into an existing maker-board setup.
