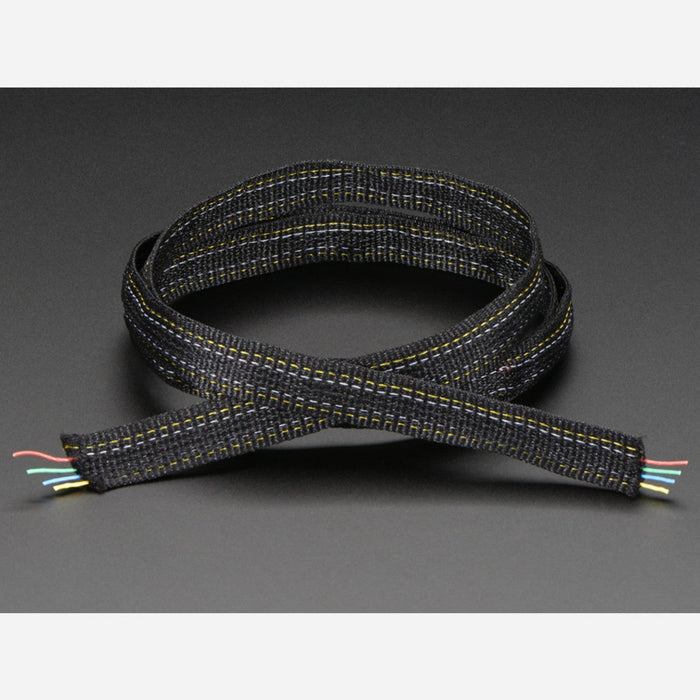

Fabric Ribbon 4-Channel Wire - 1 yard

$11.56

Part Number:  AF-1373
Brand:  Adafruit Australia

DescriptionThis lightweight, flexible fabric ribbon channel contains four individual wires, perfect for wiring up theyarables where flexibility is key. This ribbon has 4 x 28AWG stranded-core wires, easy to solder but also quite flexible. There's no risk of accidental shorts since each wire is sleeved, and you can also pass a fair bit of current Features: Ultra-low resistance: ~0.25 Ω / m 4 Conductor connections...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

This lightweight, flexible fabric ribbon channel contains four individual wires, perfect for wiring up theyarables where flexibility is key. This ribbon has 4 x 28AWG stranded-core wires, easy to solder but also quite flexible. There's no risk of accidental shorts since each wire is sleeved, and you can also pass a fair bit of current

Features:

  • Ultra-low resistance: ~0.25 Ω / m
  • 4 Conductor connections
  • Power and data applications
  • Sewable - they suggest straight-stitching on the edges
  • Washable and dryable
  • Foldable onto itself without shorting
  • 100% Nylon: Black color with two red & white pinstripes
  • Sold in 1 yard lengths

This ribbon is ideal for when you'd like to make soldered connections, a rugged sewable data bus or pass higher current than is possible with stainless thread. This ribbon can handle 250mA continuous load & spikes of 1A.

Fabric Ribbon 4-Channel Wire - 1 yard (9:14)

Technical Details

  • Dimensions: 927.1mm / 36.5" x 12.5mm / 0.5"
  • Weight: 11.11g
