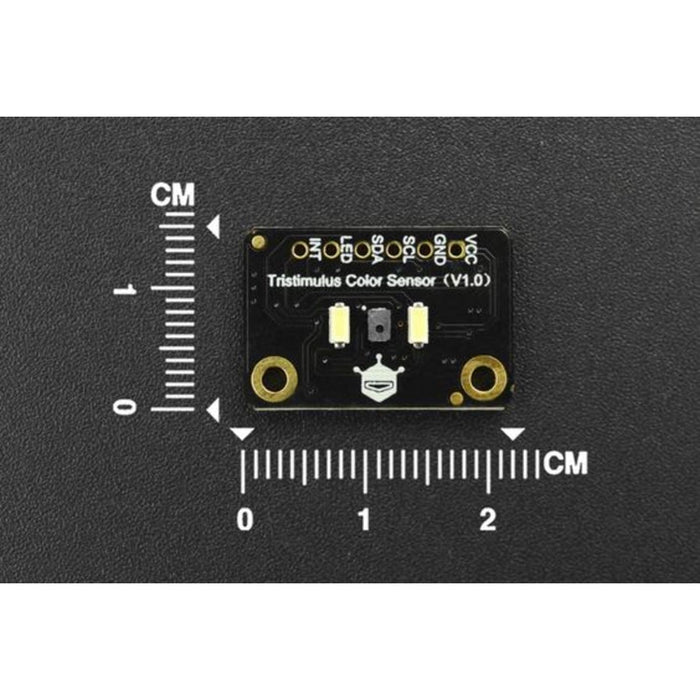

Fermion: TCS3430 Tristimulus Color Sensor (Breakout)
We have ✅ 2 available of the DF-SEN0403 in our Sydney warehouse. An extra 28 units will be available shortly.
DFRobot TCS3430 XYZ Tristimulus Color Sensor employs the new generation of TCS3430 spectral sensor IC launched by the well-known AMS company. It features advanced digital ambient light sensing(ALS) and CIE 1931 tristimulus color sensing(XYZ). Each of the channels has a filter to control its optical response, which allows the device to accurately measure ambient light and sense color. These measurements are used to calculate chromaticity, illuminance, and color temperature, all of which are used to support various potential applications.
You can learn more about the CIE 1931-XYZ system here:
Board Overview
FEATURES
- XYZ Tristimulus Filter
- Capable of ±10% illuminance and correlated color temperature accuracy
- Wide dynamic range and high sensitivity
- Programmable gain and integration time
APPLICATIONS
- Color detection
- Brightness detection
- White balance detection
- Color temperature measurement
SPECIFICATION
- Power Supply: 3.3V~5V
- Operating Current: ＜5mA
- LED Operating Current: ＜15mA
- I2C Address: 0x39
- Operating Temperature Range: -30℃~85℃
- Dimension: 22*15mm/0.87*0.59”
DOCUMENTS
- Product wiki
- CIE 1931-XYZ system
SHIPPING LIST
- Fermion:TCS3430 Tristimulus Color Sensor(Breakout) x1
- 2.54-6P Black Single Row Pin Header x1
