2.8inch Touch Display Module for Raspberry Pi Pico, 262K Colors, 320×240, SPI
10 units available with a short lead time.

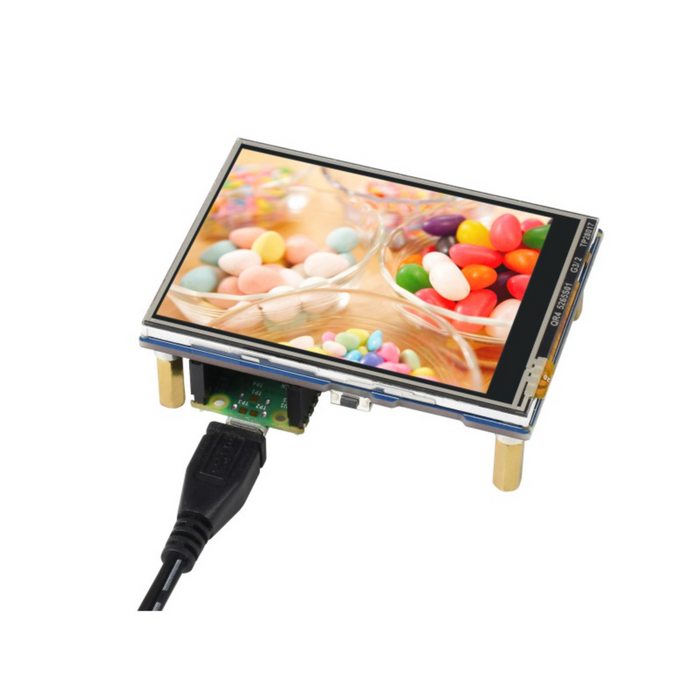

The 2.8" Touch Display Module is designed for the Raspberry Pi Pico, featuring a 320×240 IPS screen with 262K colours and a resistive touchscreen. It connects via the onboard female pin header for direct attachment to the Pico — no wiring required.
Driven by the ST7789 display controller and XPT2046 touch controller over SPI, the module includes a MicroSD card slot for image storage and programmable backlight control. Demo code is provided for both C/C++ and MicroPython.
Key Features
- 2.8" IPS Display – 320×240 resolution with 262K colours for vivid output
- Resistive Touchscreen – XPT2046 dedicated touch controller for smooth input
- Direct Pico Attachment – Female pin header for plug-and-play connection
- MicroSD Card Slot – Store and display images directly
- Programmable Backlight – Software-controlled brightness for power saving
- Demo Code Included – C/C++ and MicroPython examples for Raspberry Pi Pico
Specifications
- Display Driver: ST7789
- Touch Controller: XPT2046
- Resolution: 320×240 pixels
- Pixel Size: 0.18 × 0.18mm
- Display Panel: IPS
- Colour Depth: 262K colours
- Communication: SPI
- Operating Voltage: 5V
- Voltage Regulator: RT9193-33 (3.3V LDO)
- Display Area: 57.60 × 43.20mm
- Module Dimensions: 70.20 × 50.20mm
Ideal For
- Raspberry Pi Pico display projects
- Touch-based MicroPython interfaces
- Portable sensor dashboards
- Image slideshow displays
Package Contents
- 1× 2.8" Touch Display Module for Raspberry Pi Pico
Note: Raspberry Pi Pico and MicroSD card are not included.
