Overview

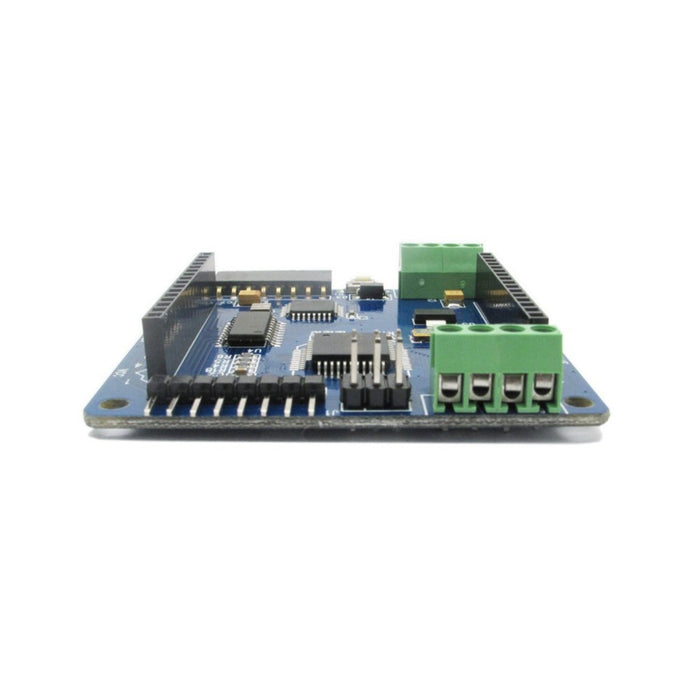

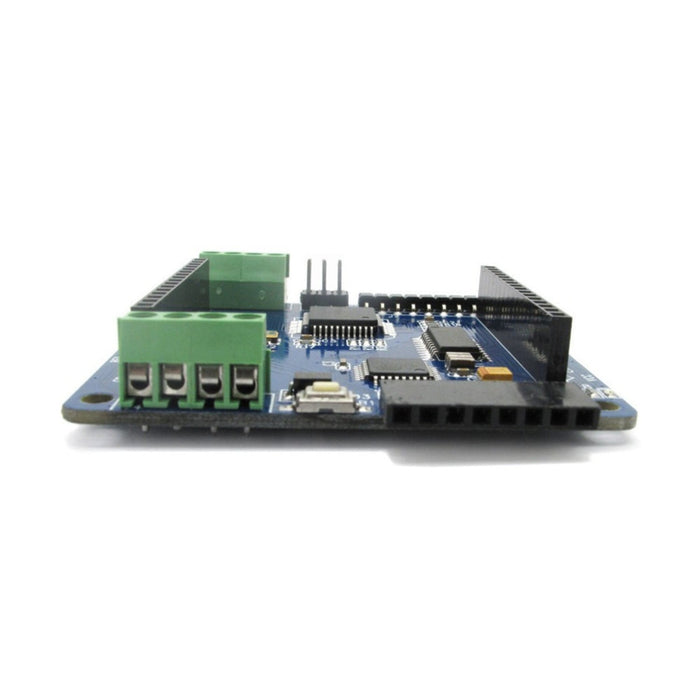

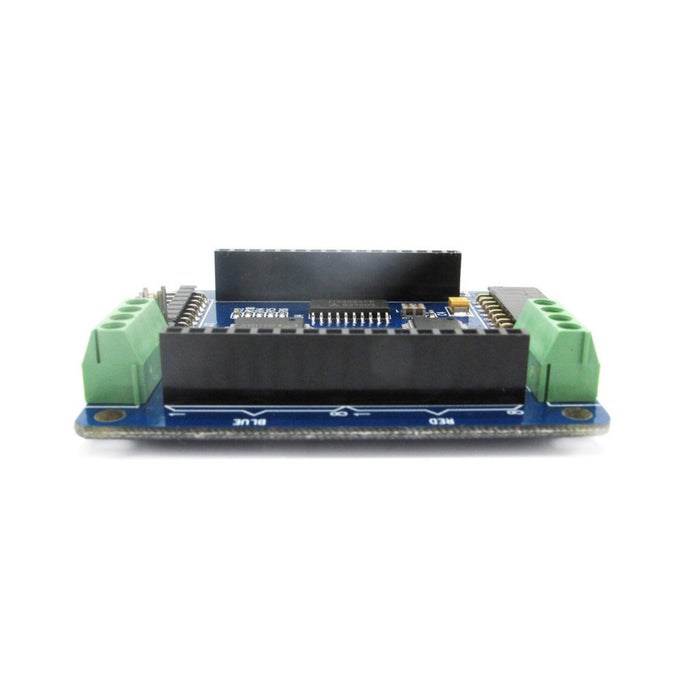

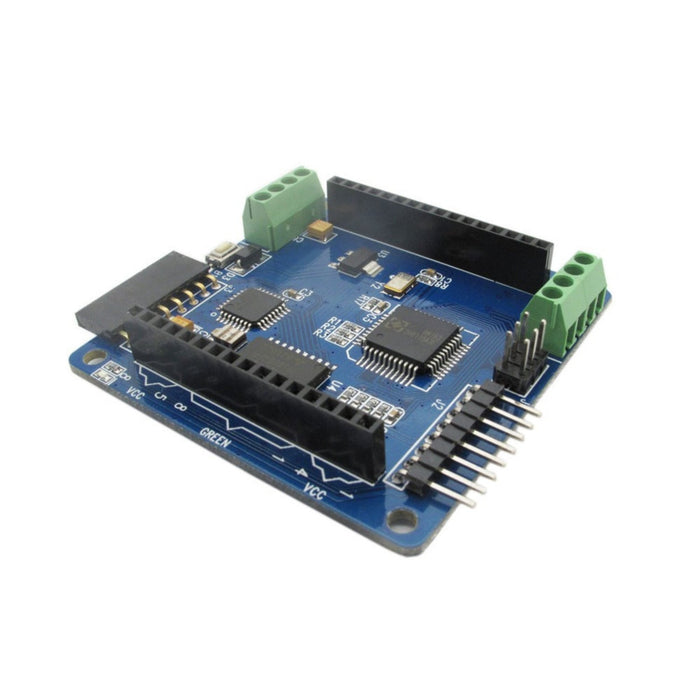

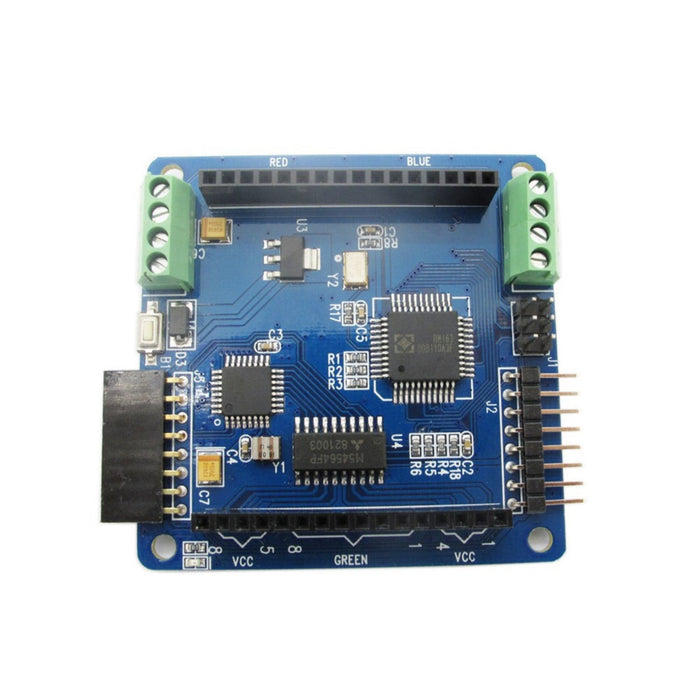

Colorduino is an RGB LED dot-matrix driver compatible with Arduino . Colorduino pairs the M54564 with a single DM163 constant current driver. By using the DM163, Colorduino gains three 8+6-bit channels of hardware PWM control of the LED's freeing up the MCU from having to implement it in software. This gives the ATmega328 more CPU bandwidth for performing other tasks. Colorduino is easy to cascade by IIC and Power interface.
Note: 1.4 version has removed the switch compared to 1.3 version.

  • 8bits colors support with 6bits correction for each color in every dots
  • Hardware 16MHz PWM support
  • Without any external circuits, play and shine
  • Dedicated GPIO and ADC interface
  • Hardware UART and IIC communication with easy cascading
  • 24 constant current channels of 100mA each
  • 8 super source driver channels of 500mA each
Specification
PCB size | 60mm X 60mm X 1.6mm
Microprocessor | Atmega328P
Indicator | PWR State
Power supply | 5V~7.5V DC(7.5V Max)
Cascade power connector | Terminal Blocks
Program interface | UART/ISP
Expansion socket | 100mil bended pin header pair
Communication protocols | UART/IIC
RoHS | Yes
Electronic Characteristics
Specification | Min. | Typical Value | Max. | Unit
Power Voltage(VIN) | 6.5 |   | 7.5 | VDC
Power Voltage(VDD) | 4.5 | 5 | 5.5 | VDC
Input Voltage VH: | 4.5 | 5 | 5.5
Input Voltage VL: | -0.3 | 0 | 0.5 | V
Current Consumption(Except LED matrix) | - | 20 | 40 | mA
Drive current(Every channel) |   |  | 500 | mA
Drive current(Every dot) |   |  | 58 | mA
Circuit response time | 10 |   |  | ns
RGB LED-Matrix color resolution per dot |   |  | 16M |
Uart Baud rate | 9600 |   | 115200 | bps
