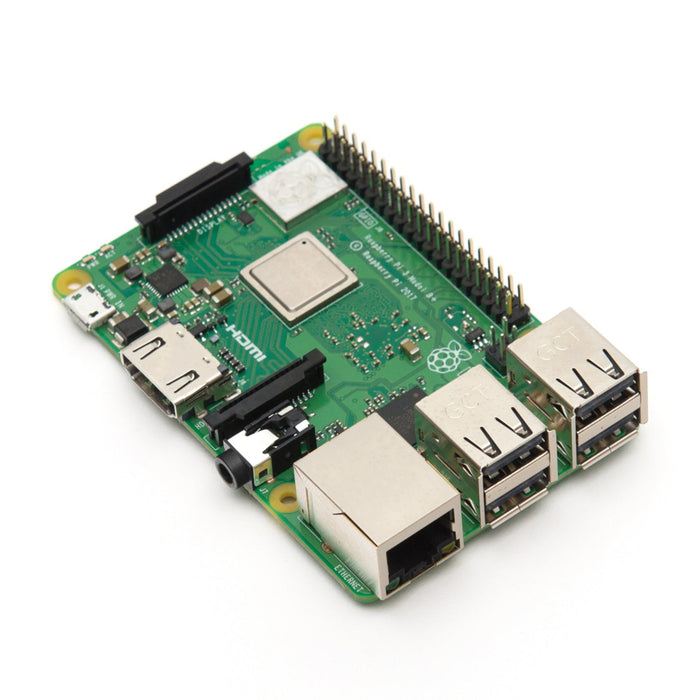

Raspberry Pi 3 Model B+

The Raspberry Pi 3 Model B+ is a credit-card-sized single-board computer powered by a 1.4 GHz quad-core ARM Cortex-A53 processor with 1GB RAM. Add a keyboard, mouse, display, power supply, and a microSD card with your chosen Linux distribution and you have a fully functional desktop computer, media centre, or development platform.

This model adds 802.11ac dual-band Wi-Fi, Bluetooth 4.2 with BLE, and Gigabit Ethernet (limited to 300 Mbps over USB 2.0) — a significant upgrade over the Pi 3 Model B. Power over Ethernet is supported with an optional PoE HAT.

Key Features

• 1.4 GHz Quad-Core – Broadcom BCM2837B0, 64-bit ARMv8 Cortex-A53
• 1GB RAM – LPDDR2 SDRAM
• Dual-Band Wi-Fi – 802.11ac (2.4 GHz and 5 GHz)
• Bluetooth 4.2 + BLE – Built-in wireless connectivity
• Gigabit Ethernet – 10/100/1000BASE-T (up to 300 Mbps)
• 4× USB 2.0 Ports – For peripherals and storage
• 40-Pin GPIO – Full HAT compatibility
• PoE Ready – With optional PoE HAT

Specifications

• SoC – Broadcom BCM2837B0
• CPU – Quad-core Cortex-A53 @ 1.4 GHz (64-bit ARMv8)
• GPU – Dual-core VideoCore IV @ 400 MHz (OpenGL ES 2.0, 1080p30 H.264 decode)
• Memory – 1GB LPDDR2
• Storage – microSD card slot
• Wireless – 802.11b/g/n/ac Wi-Fi + Bluetooth 4.2 BLE
• Ethernet – Gigabit (300 Mbps max)
• Video Output – HDMI, 3.5mm composite
• Audio Output – HDMI (multichannel), 3.5mm analogue
• USB – 4× USB 2.0
• Camera – CSI port
• Display – DSI port
• GPIO – 40-pin header
• Power – 5V / 2.5A via Micro USB
• Weight – 42 g

Ideal For

• Desktop computing and learning Linux
• Media centres (LibreELEC, OSMC)
• IoT and home automation
• Retro gaming (RetroPie)
• Programming and electronics education

Package Contents

• 1× Raspberry Pi 3 Model B+ (board only)
