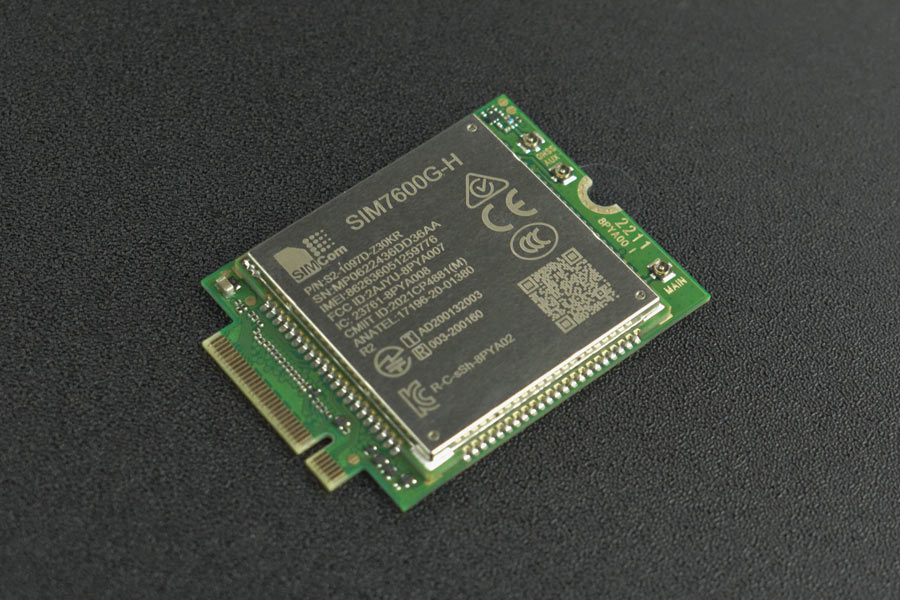

SIM7600G-H-M2 4G Communication Module
33 units will be available shortly.
The SIM7600G-H-M2 is the LTE Cat 4 module that supports wireless communication modes of LTE-TDD, LTE-FDD, HSPA+, GSM, GPRS, EDGE, etc. It supports maximum 150Mbps downlink rate and 50Mbps uplink rate.
The SIM7600G-H-M2 adopts M.2 form factor and M.2 B KEY interface and consists of a SIM7600-H module and a M.2 adapter board. It is easy for customers to integrate. The module integrates multiple satellite high-accuracy positioning GNSS systems with multiple built-in network protocols, which is suitable for LTE, UMTS, and GSM networks with global coverage and supports drivers for main operation systems(Windows, Linux, and Android, etc.) and software functions like FOTA, LBS, TLS, etc. Users can debug the module via AT commands of all kinds.
Meanwhile, the SIM7600G-H-M.2 integrates mainstream industrial standard interfaces, with powerful expansibility, including abundant interfaces such as UART, USB, and GPIO, which is suitable for main IoT applications such as telematics, surveillance devices, CPE, industrial routers, and remote diagnostics, etc.
Features
Supports maximum 150Mbps downlink rate and 50Mbps uplink rate
Integrates mainstream industrial standard interfaces
Applications
Telematics
Surveillance devices
CPE
Industrial routers
Remote diagnostics
Specification
Frequency Band
LTE-FDD: BI, B2, B3, B4, B5, B7, B8, B12, BI3, B18, B19, B20, B25, B26, B28, B66
LTE-TDD: B34, B38, B39, B40, B41
WCDMA: BI, B2, B4, B5, B6, B8, B19
GSM: 850, 900, 1800, 1900MHz
GNSS: GPS, Beidou, GLONASS, GALILEO, QZSS
Data Transfer
LTE: 150 Mbps (DL) / 50 Mbps (UL)
HSPA+: 42 Mbps (DL) / 5.76 Mbps (UL)
WCDMA: 384 Kbps (DL) / 384 Kbps (UL)
EDGE: 236.8 Kbps (DL) / 236.8 Kbps (UL)
GPRS: 85.6 Kbps (DL) 1 85.6 Kbps (UL)
Software Features
Operating System: Windows/Linux/Android
Protocol: TCP, IP, IPV4, IPV6, Multi-PDP, FTP, FTPS, HTTP, HTTPS, DNS
SMS: supports MT, MO, CB, Text, PDU
Firmware Upgrade: USB/FOTA
Hardware Specifications
SIM Card: 1.8V/3.0V
Antenna Interface: IPEX4 Connector(LTE main antenna+LTE diversity antenna + GNSS antenna)
Power Supply: 3V-4.2V
Form Factor: M.2 B KEY
Dimensions: 42.0*31.4*3.8mm/1.65*1.24*0.15”
Operating Temperature: -40°C to +85°C
Documents
Shipping List
SIM7600G-H-M2 4G Communication Module x1
