Gravity: CO Sensor (Calibrated) - I2C & UART
45 units will be available shortly.
This is a sensor that detects carbon monoxide and supports three output modes: analog, I2C, and UART. The probe has been calibrated at the factory, which can quickly and accurately measure the concentration of carbon monoxide in the environment. Can be widely applied to fields like portable devices, air quality monitoring devices, industries, mines, warehouses, and other spaces where the air is not easy to circulate.
The probe adopts the electrochemical principle, has the characteristics of strong anti-interference ability, high stability, high sensitivity, etc., and the service life is as long as two years. The sensor has 32 modifiable I2C addresses, an integrated temperature compensation algorithm, and a threshold alarm function, It has good compatibility with mainstream main control devices such as Arduino, ESP32, and Raspberry Pi. The easy-to-use Gravity interface, coupled with our sample code, can quickly build a carbon monoxide detector.
DFRobot has introduced 12 gas detection sensors in this series, CO, O2, NH3, H2S, NO2, HCL, H2, PH3, SO2, O3, CL2, HF, which are used in exactly the same way and data format, so you can combine them according to your needs.
Features
Strong anti-interference ability
High stability
High sensitivity
Applications
Petrochemical carbon monoxide detection
Metallurgy carbon monoxide detection
Mining carbon monoxide detection
Environmental protection
Specification
Detection Gas: Carbon Monoxide (CO)
Detection range: 0-1000ppm
Working Voltage: 3.3~5.5V DC
Working Current: <5mA
Output Signal: I2C, UART (0~3V), analog voltage
Working Temperature: -20~50°C
Working Humidity: 15~90%RH (non-condensing)
Storage Temperature: -20~50°C
Storage Humidity: 15~90%RH (non-condensing)
Lifespan: >2 years (in the air)
Adapter Plate Size: 37*32mm
Compatibility: Arduino, ESP32, Raspberry pi
Documents

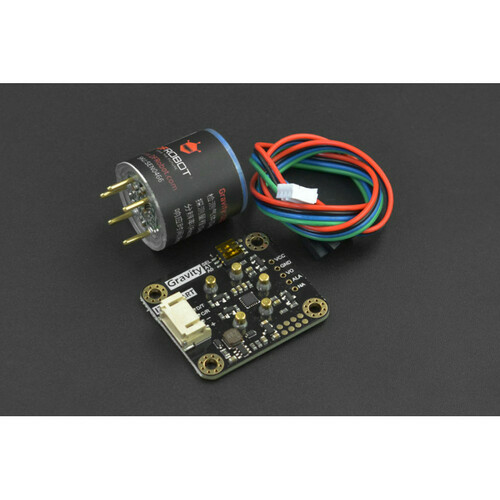

Shipping List
Gravity: CO Signal Conversion Board x1
CO sensor probe x1
Gravity - 4pin Cable x1
The Gravity: CO Sensor (Calibrated) - I2C & UART appears in the following collections:
SKU DF-SEN0466
by Little Bird
