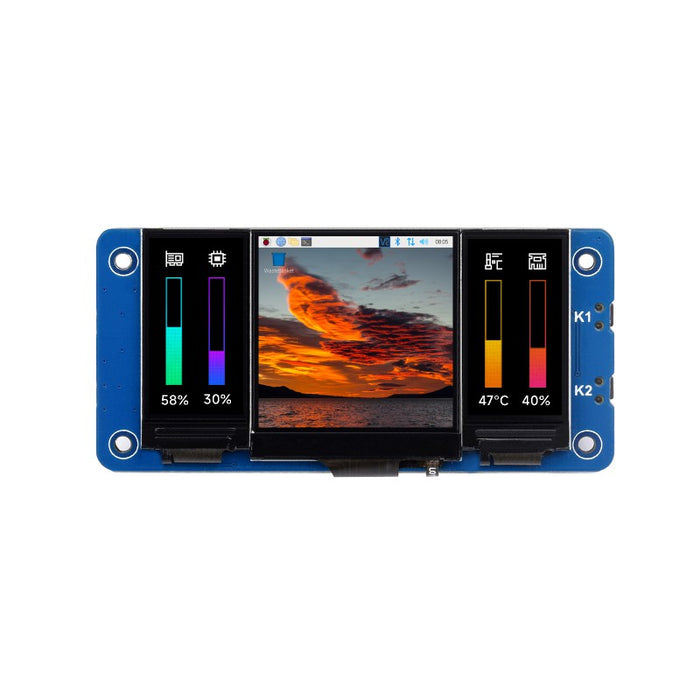

Triple LCD HAT For Raspberry Pi, Onboard 1.3inch IPS LCD Main Screen and Dual 0.96inch IPS LCD Secondary Screens
We have ✅ 2 available of the WS-25586 in our Sydney warehouse. An extra 10 units available with a short lead time.
A triple-display HAT for Raspberry Pi featuring a 1.3" IPS LCD main screen and two 0.96" IPS LCD secondary screens. All three displays communicate over SPI and support 65K colour output, making this HAT ideal for system monitoring dashboards, status displays, and multi-information interfaces.
The board connects via the standard 40-pin GPIO header and is compatible with Raspberry Pi series boards. Two user-defined buttons are included for custom input functions.
Key Features
- 1.3" Main Display – 240×240 pixel IPS LCD, ST7789 driver, SPI interface
- Dual 0.96" Secondary Displays – 160×80 pixel IPS LCD, ST7735S driver, SPI interface
- 65K Colour – Full-colour output on all three screens
- 2 User-Defined Buttons – Customisable key functions
- 40-Pin GPIO Header – Compatible with Raspberry Pi series boards
- Multi-Platform Support – Raspberry Pi, VisionFive2, Arduino, STM32
Specifications
- Main Screen: 1.3" IPS LCD, 240×240 pixels, ST7789
- Secondary Screens: 2× 0.96" IPS LCD, 160×80 pixels, ST7735S
- Interface: SPI
- Colour Depth: 65K colours
- Connector: 40-pin GPIO header
Ideal For
- System monitoring dashboards (CPU, RAM, network)
- Status indicator displays
- Multi-information IoT interfaces
- Compact HMI projects
Package Contents
- 1× Triple LCD HAT
- 1× Standoffs pack
