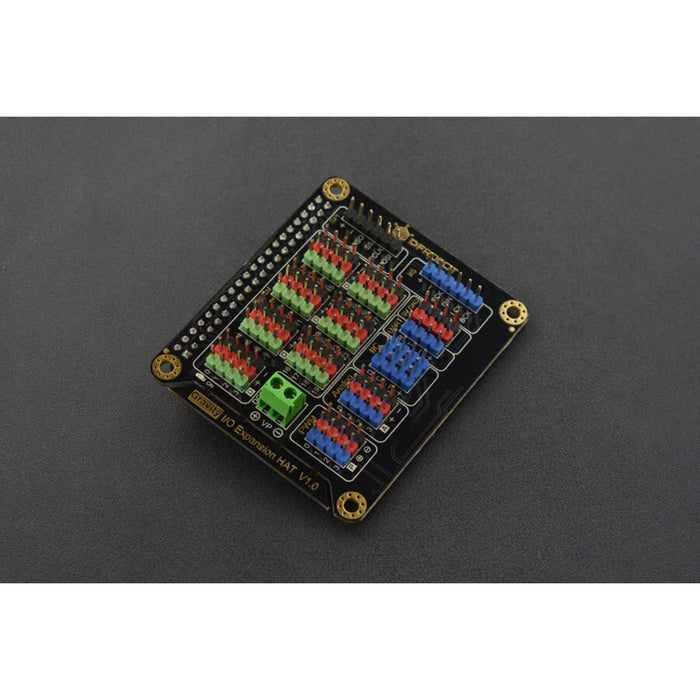

IO Expansion HAT for Raspberry Pi 4B/3B+
280 units will be available shortly.
This IO Expansion HAT from DFRobot is the perfect companion for your Raspberry Pi 4B/3B+! It leads out all of the IO ports on Raspberry Pi including digital port, analog port, PWM, IIC, UART, SPI, and IIS. Besides that, the HAT is totally compatible with DFRobot Gravity Series, which frees users from complicated connection work and enables them to just concentrate on their projects building.
Raspberry Pi GPIO pins work with a maximum logic level of 3.3V. Besides the sensor and module of 3.3V power supply, the product also supports:
- Sensor and module with 5V power supply and 3.3V level
- PWM external power supply (6~12V)
- Controlling multiple servos
Dimension Diagram
SPECIFICATION
- Operating Voltage: 5V
- PWM Port External Power: 6-12V
- Sensor Interface External Power: 3.3V
- Dimension: 65*56 mm/2.56*2.20”
