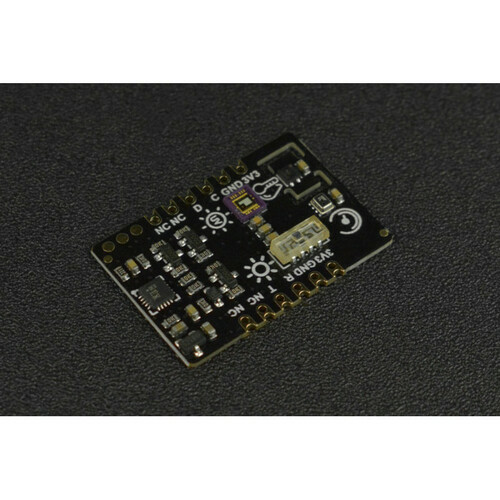

Fermion: Multifunctional Environmental Sensor (Breakout)

This compact multifunctional environmental sensor combines four professional sensor chips into a single breakout board: SHTC3 (temperature and humidity), BMP280 (barometric pressure), VEML7700 (ambient light), and ML8511 (UV). An on-board MCU converts raw sensor data into standard units, so you get ready-to-use readings without complex calibration.

Supporting both UART and I2C communication, the Fermion breakout version is designed for direct PCB soldering. Complete Arduino and Python libraries are provided for quick integration.

Key Features

• 5 Environmental Parameters – Temperature, humidity, pressure, ambient light, and UV intensity
• On-Board MCU – Outputs data in standard units (°C, %, kPa, lx, mW/m²)
• Dual Interface – Switchable I2C and UART output modes
• Compact Breakout – Solderable directly onto PCBs
• High Precision – Professional-grade sensor chips with careful thermal layout

Specifications

• Working Voltage: 3.3V DC
• Working Current: 35 mA
• Interface: I2C, UART
• Operating Temperature: −20°C to 70°C
• Dimensions: 30 × 20.5mm

Sensor Details

• Temperature (SHTC3): −40°C to 125°C, ±0.2°C accuracy, 0.01°C resolution
• Humidity (SHTC3): 0–100% RH, ±2% RH accuracy, 0.01% RH resolution
• Barometric Pressure (BMP280): 300–1100 hPa, ±1 hPa absolute accuracy
• Ambient Light (VEML7700): 0–120 klx, 0.0036 lx/ct resolution
• UV (ML8511): UV-A (320–400 nm) and UV-B (280–320 nm), output in mW/m²

Ideal For

• Indoor and outdoor environmental monitoring
• Weather station projects
• Smart home environmental sensing
• UV exposure monitoring

Package Contents

• 1× Fermion Multifunctional Environmental Sensor (Breakout)
