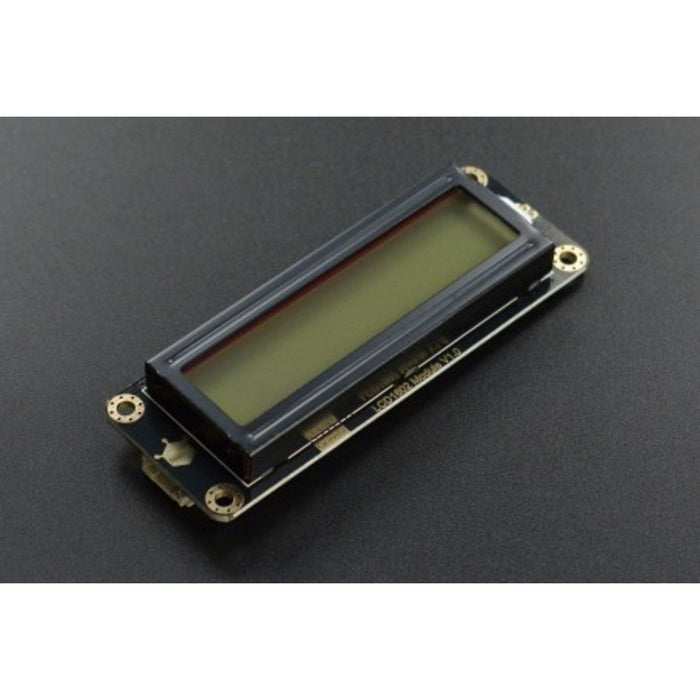

Gravity: I2C LCD1602 Arduino LCD Display Module (Gray)
We have ✅ 1 available of the DF-DFR0557 in our Sydney warehouse. An extra 133 units available with a short lead time.
The Gravity I2C LCD1602 is a 16×2 character LCD display module from DFRobot's Gravity series, redesigned with a clean modern look and simplified I2C interface. It eliminates the need for contrast adjustment, retains backlight control, and is compatible with both 3.3 V and 5 V systems — making it a plug-and-play display for Arduino and other microcontroller projects.
Using I2C communication, the module requires just two data lines (SDA and SCL) plus power, freeing up GPIO pins for other components. The gray backlight gives a subtle, professional look compared to traditional green LCD modules.
Key Features
- 16×2 Character Display – Two rows of 16 characters for text, values, and status
- I2C Interface – Simple two-wire connection saves GPIO pins
- 3.3 V and 5 V Compatible – Works with both voltage levels without level shifting
- No Contrast Adjustment Needed – Pre-configured for optimal readability
- Controllable Backlight – Gray backlight with software on/off control
- Gravity Connector – Part of the DFRobot Gravity ecosystem for easy integration
Specifications
- Operating Voltage – 3.3–5.0 V
- Operating Current – ≤20 mA
- Display – 16×2 characters
- Communication – I2C
- Backlight – Gray
- Operating Temperature – –20 °C to +70 °C
- Storage Temperature – –30 °C to +80 °C
- Dimensions – 87.0 × 32.0 × 13.0 mm
Ideal For
- Displaying sensor readings and status information
- Arduino and microcontroller projects needing text output
- Beginner electronics and STEM learning
- Dashboards and monitoring displays
Resources
