Stepper Motor - 68 oz.in (400 steps/rev)
This NEMA 17 bipolar stepper motor delivers 68 oz·in (48 N·cm) of holding torque with a fine 0.9° step angle, providing 400 steps per revolution for high-pre...

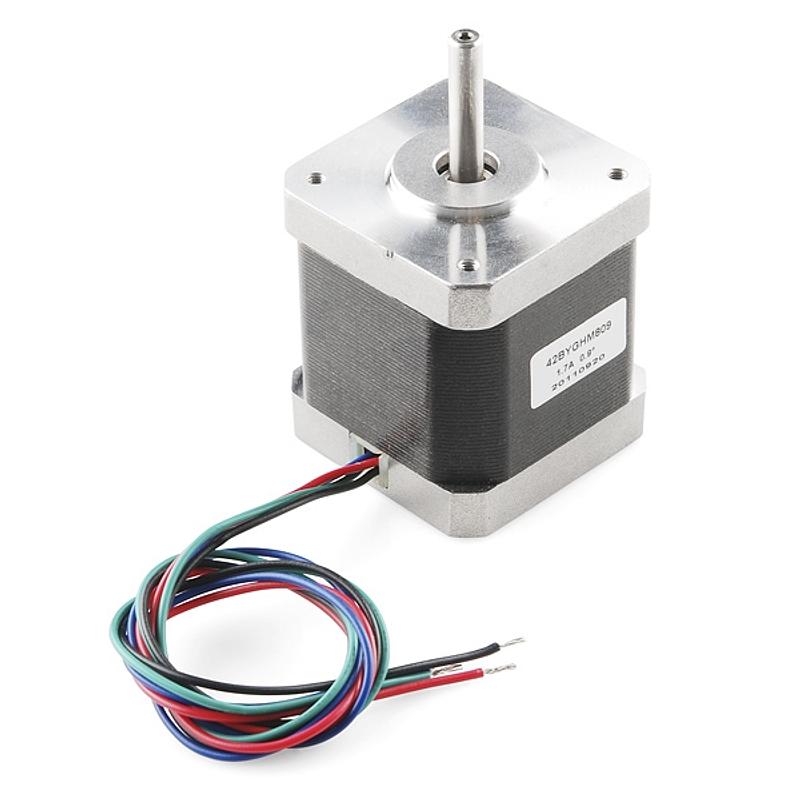

This NEMA 17 bipolar stepper motor delivers 68 oz·in (48 N·cm) of holding torque with a fine 0.9° step angle, providing 400 steps per revolution for high-precision positioning. Its 5mm D-shaft and standard NEMA 17 mounting make it compatible with a wide range of CNC, 3D printing, and robotics applications.
Specifications
- Step Angle: 0.9° (400 steps/rev)
- Type: Bipolar, 2-phase
- Rated Voltage: 3V
- Rated Current: 1.7A per phase
- Holding Torque: 48 N·cm (68 oz·in)
- Drive Shaft: 5mm diameter
- Form Factor: NEMA 17
Key Features
- High Resolution – 0.9° step angle for twice the precision of standard 1.8° steppers
- Strong Holding Torque – 68 oz·in for reliable positioning under load

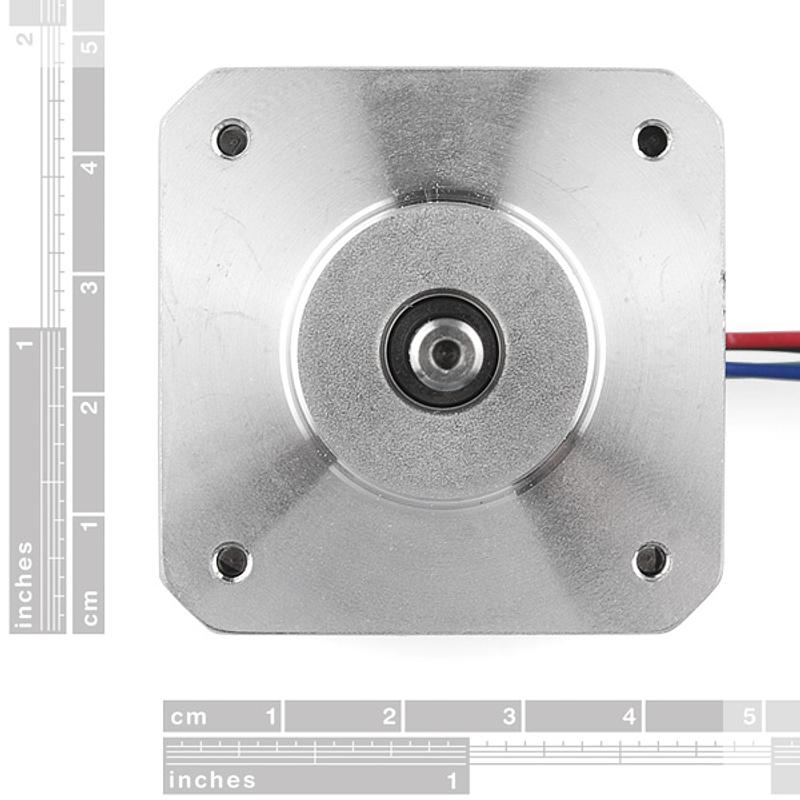

- NEMA 17 Standard – Drop-in compatible with standard NEMA 17 mounts
Ideal For
- CNC machines and 3D printers requiring fine resolution
- Precision positioning systems
- Robotics and automation projects
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- Torque
- A twisting force that causes something to rotate, usually measured in newton-metres or kilogram-centimetres. It matters when choosing motors, servos, gears, and tools because higher torque is needed to lift heavier loads, turn larger wheels, or move mechanisms without stalling.
Find this product in
Brands
Robotics & Motion

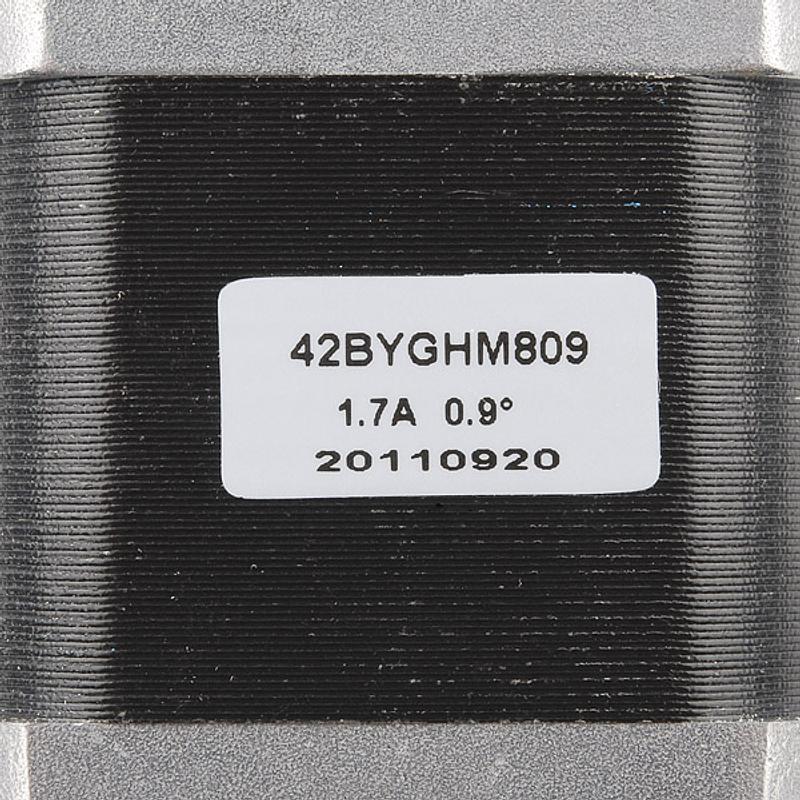

42BYGHM809 Stepper Motor Datasheet
