SparkFun MicroMod ESP32 Processor
We have ✅ 1 available of the SF-WRL-16781 in our Sydney warehouse. An extra 17 units available with a short lead time.

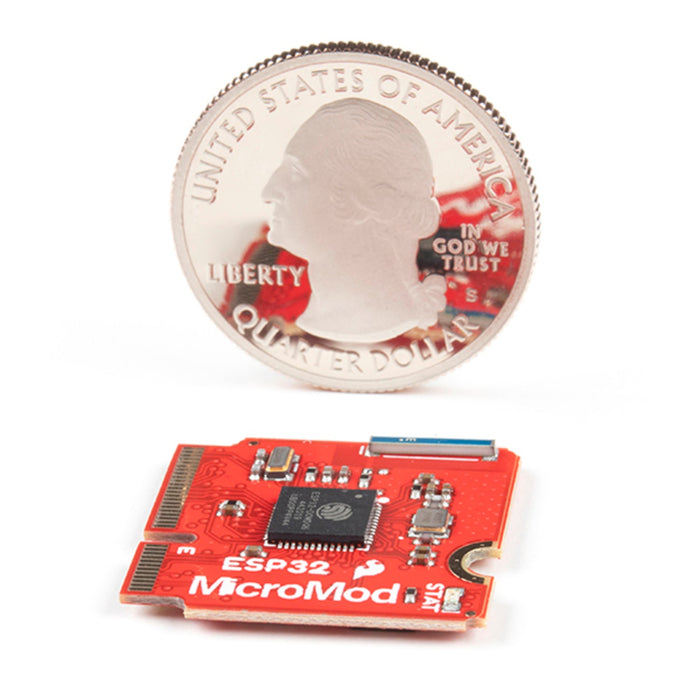

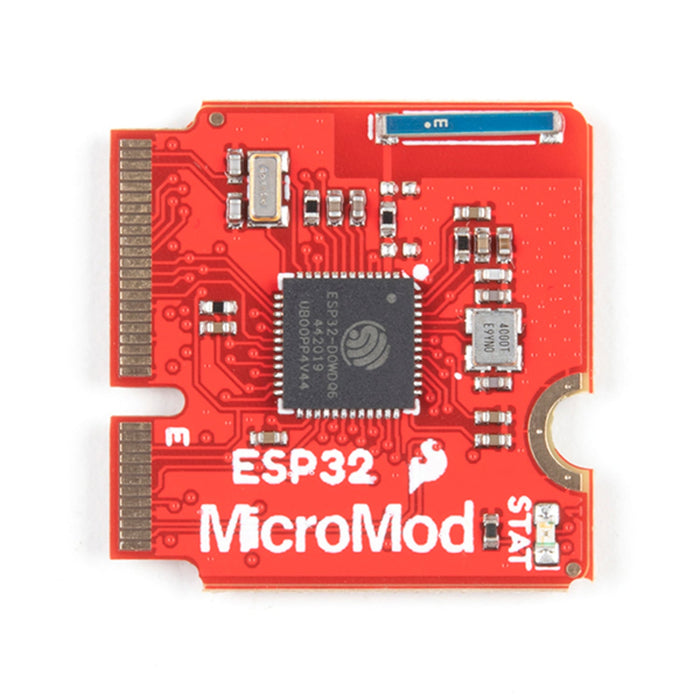

The SparkFun MicroMod ESP32 Processor Board brings Espressif's ESP32 into the MicroMod ecosystem via the M.2 connector interface. It provides WiFi and Bluetooth connectivity with the processing power of a dual-core Tensilica LX6 at 240 MHz.

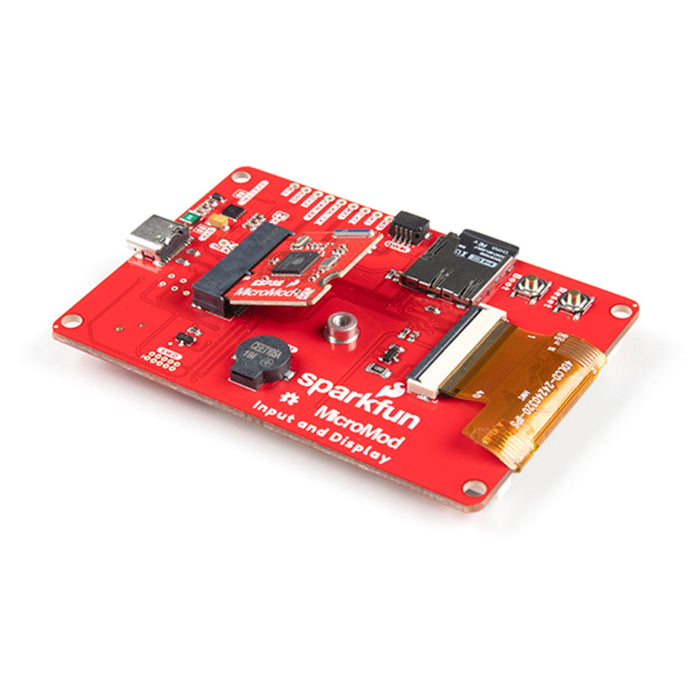

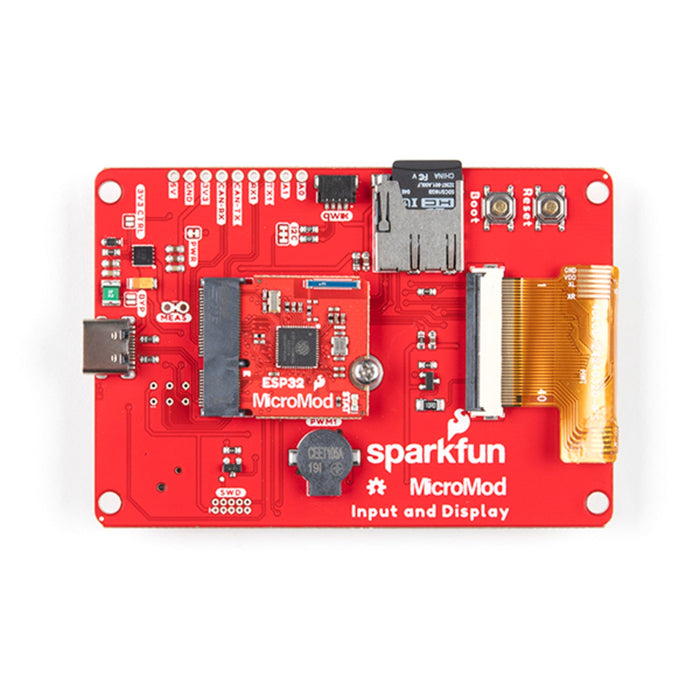

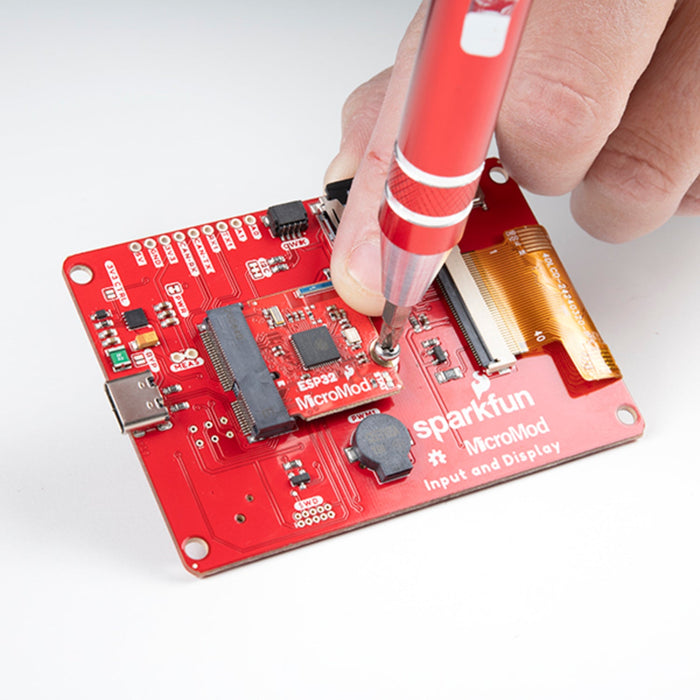

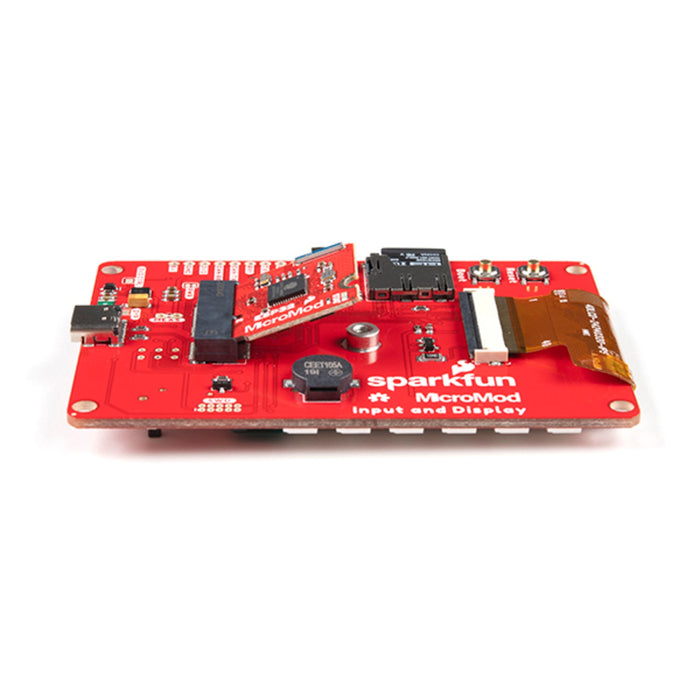

Simply align the keyed edge connector with any MicroMod Carrier Board and secure with a screw. Swap processors whenever your project needs change — no rewiring required.
Key Features
- Dual-Core Tensilica LX6 – 240 MHz clock frequency
- 520 KB SRAM – Internal memory
- 16 MB Flash – Program and data storage
- WiFi – Integrated 802.11 b/g/n transceiver
- Bluetooth – Dual-mode (Classic + BLE)
- Hardware Encryption – AES, SHA2, ECC, RSA-4096
- Low Sleep Current – ~500 µA
- MicroMod M.2 Connector – Tool-free processor swapping
I/O & Interfaces
- 8× General-purpose I/O pins
- Dedicated analogue, digital, and PWM pins
- SPI, I2C, UART, and SDIO
Ideal For
- IoT and connected device projects
- WiFi and Bluetooth-enabled applications
- MicroMod carrier board projects requiring wireless connectivity
Resources
The SparkFun MicroMod ESP32 Processor appears in the following collections:
SKU SF-WRL-16781
by SparkFun
