RS485 to Ethernet Serial Server - 8-Ch, Rail-Mount, Isolated, Network Port Option
100 units will be available shortly.
Transform your industrial network connectivity with the cutting-edge 8-Channel RS485 to RJ45 Ethernet Serial Server. Engineered for resilience and performance, this robust serial module is the ultimate solution for seamless data acquisition and intelligent instrument monitoring across diverse application scenarios.
Product Features:

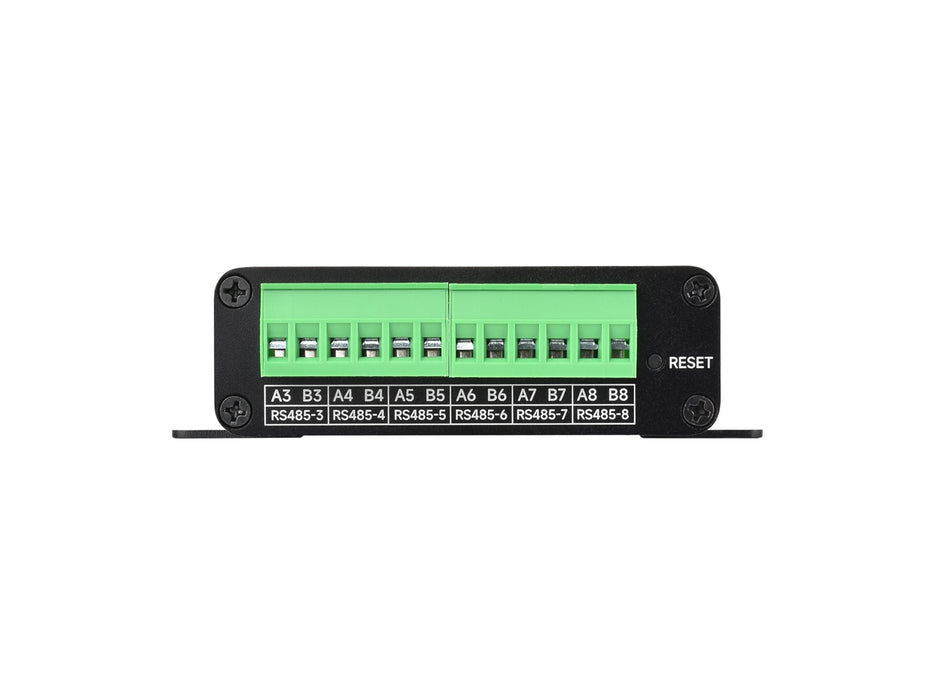

- 8 Independent RS485 Channels: Each channel operates autonomously, configured for different baud rates and ensuring interference-free communication.
- Versatile Communication Protocols: Supports TCP Server, TCP Client, UDP, and UDP Multicast modes, along with Modbus, MQTT, and JSON for comprehensive data handling.

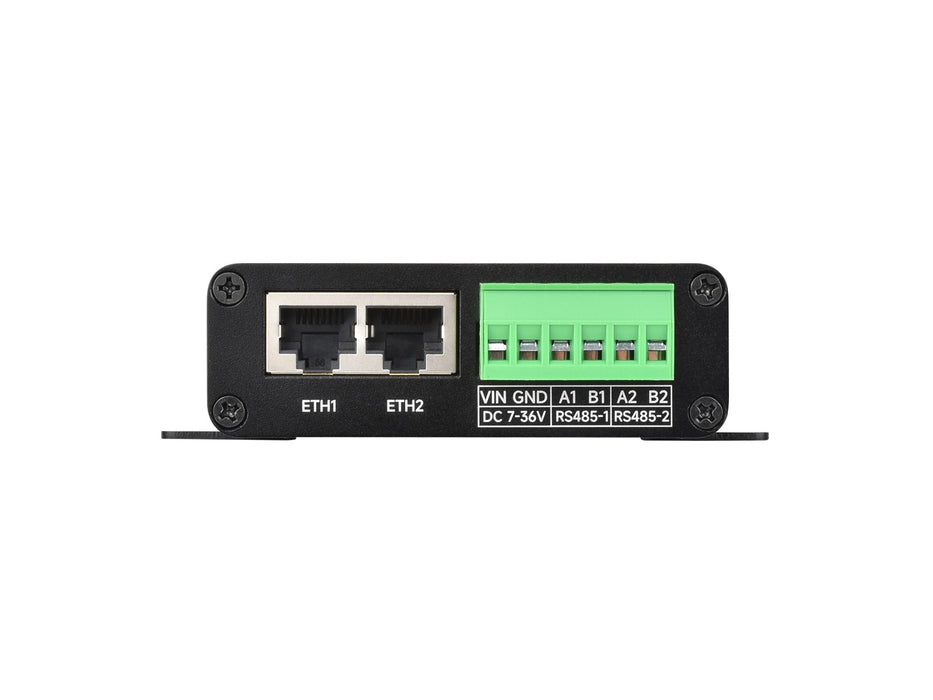

- Dual Ethernet Ports: Comes with two Ethernet ports for network flexibility, with an optional Power over Ethernet (PoE) functionality for streamlined power and data delivery.
- Isolation Protection: Electrical isolation for both power supply and signals provides a safeguard against voltage spikes and ensures system stability.

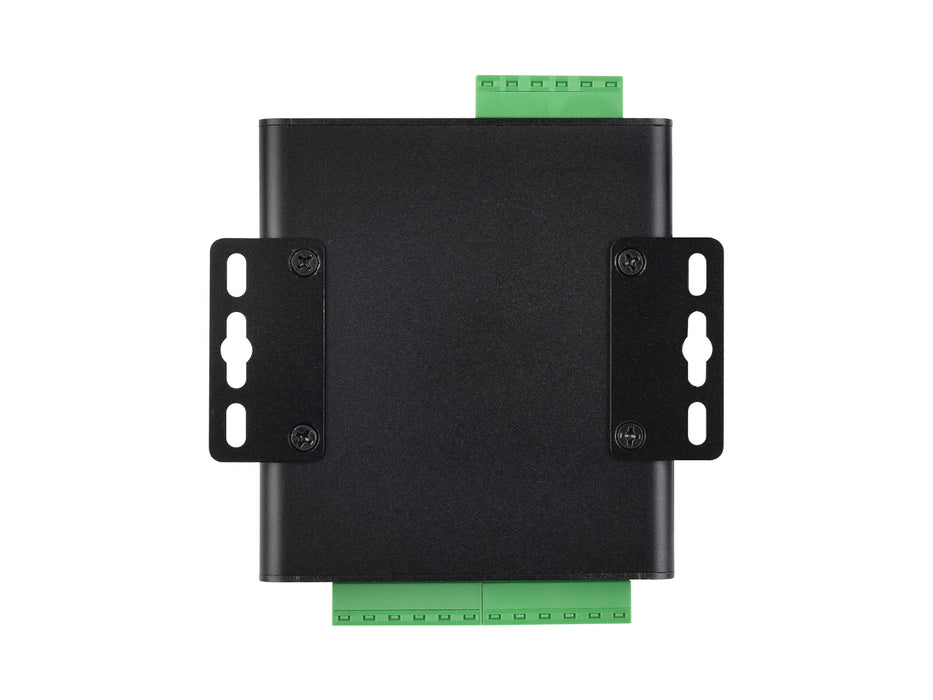

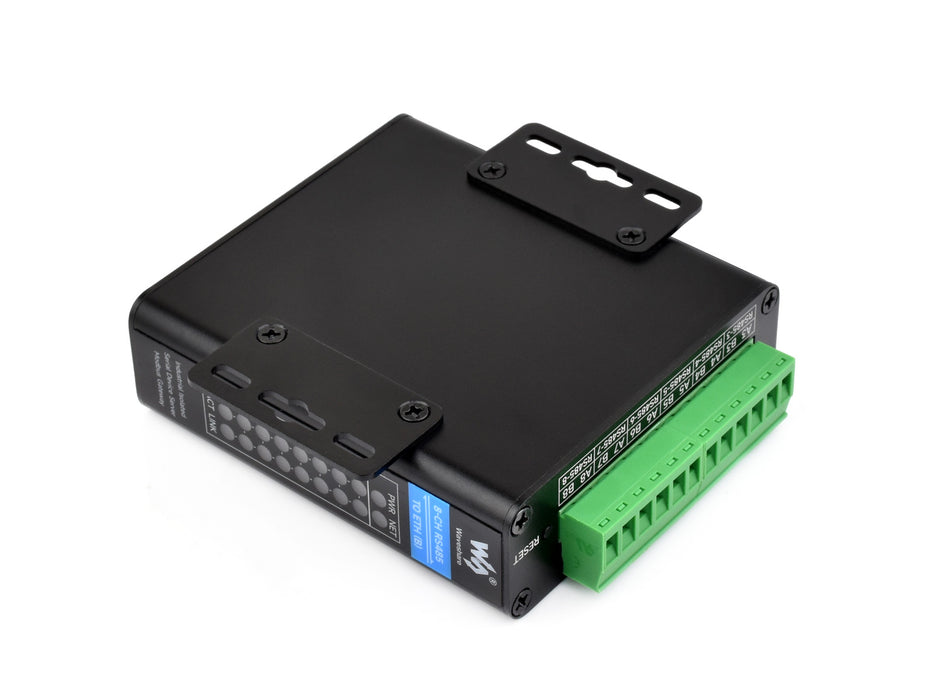

- Industrial Build: The rail-mounted metal case allows for secure installation in demanding environments, with wall-mount options also available for versatile deployment.

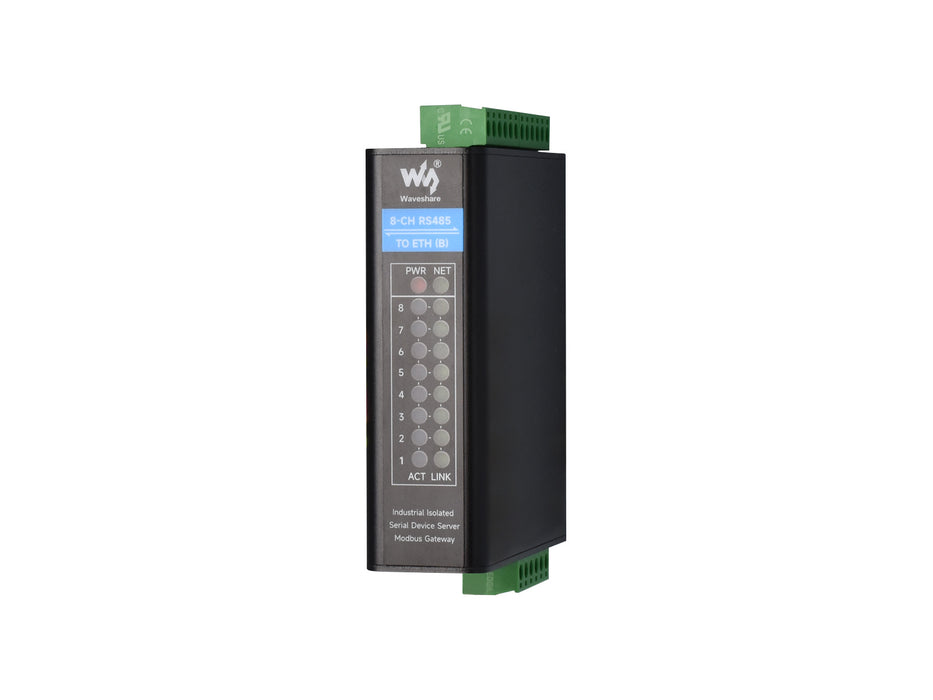

- Intuitive Status Indicators: Multiple on-board LEDs offer real-time monitoring of the device status, keeping you informed and in control.
- Broad Operating Conditions: Designed to function within a temperature range of -40℃ to 85℃ and a humidity range of 5% to 95%, making it suitable for harsh industrial conditions.
Technical Specifications: - Communication Interface: RS485 port × 8, Ethernet port × 2 (with optional PoE) - Power Supply: DC 7V ~ 36V via screw terminal or PoE port (for PoE models) - Serial Specifications: Baud rate ranging from 300 to 115200 bps with various parity bit settings - Ethernet Compliance: 10/100M auto-negotiation RJ45 connectors, featuring 2 KV surge protection - Operational Modes: TCP server/client, UDP, UDP multicast among others - Multi-protocol Support: Enables direct communication via Ethernet/IP/TCP/UDP and more - Dimensions: 93 × 103.5 × 29.7 mm for a compact footprint
Advantages: - Rail-mount Industrial Design: Easy installation and expansion capabilities make it the go-to device for modern industrial networking. - Bi-directional Transparent Transmission: Ensures seamless data exchange between RS485 and Ethernet networks. - Optional PoE Functionality: Simplifies wiring and enhances power efficiency in network layouts where PoE infrastructure exists. - Configurable Data Upload: Supports Modbus RTU, MQTT protocol to Baidu Cloud, Alibaba Cloud, and other services, enabling diverse route for data transmission. - Multi-host Polling: Safely manage communication with various network devices without overlap or confusion. - Protection and Durability: Sturdy aluminum alloy enclosure with anodization withstands tough environments and provides ESD and surge protection.
This Industrial Isolated 8-Channel RS485 to RJ45 Ethernet Serial Server streamlines sophisticated industrial systems, serving as a dependable bridge between RS485 serial devices and Ethernet networks. Whether you're upgrading a Modbus network or integrating IoT applications, this versatile, high-performance serial server is your gateway to a smarter, more connected industrial landscape.
Package Content: - 8-Ch RS485 to RJ45 Ethernet Serial Server (Quantity and version as per selection) - Optional accessories depending on the chosen model
Elevate your industrial communication infrastructure today with this state-of-the-art serial server and witness unparalleled performance and reliability.
