Raspberry Pi GPIO Ribbon Cable - 40-pin, 6 (RPi 3, RPi2, B+)
This 40-pin (2×20) flat ribbon cable connects to the GPIO header on the Raspberry Pi, providing easy access to all GPIO, I2C, SPI, UART, and power pins. The ...

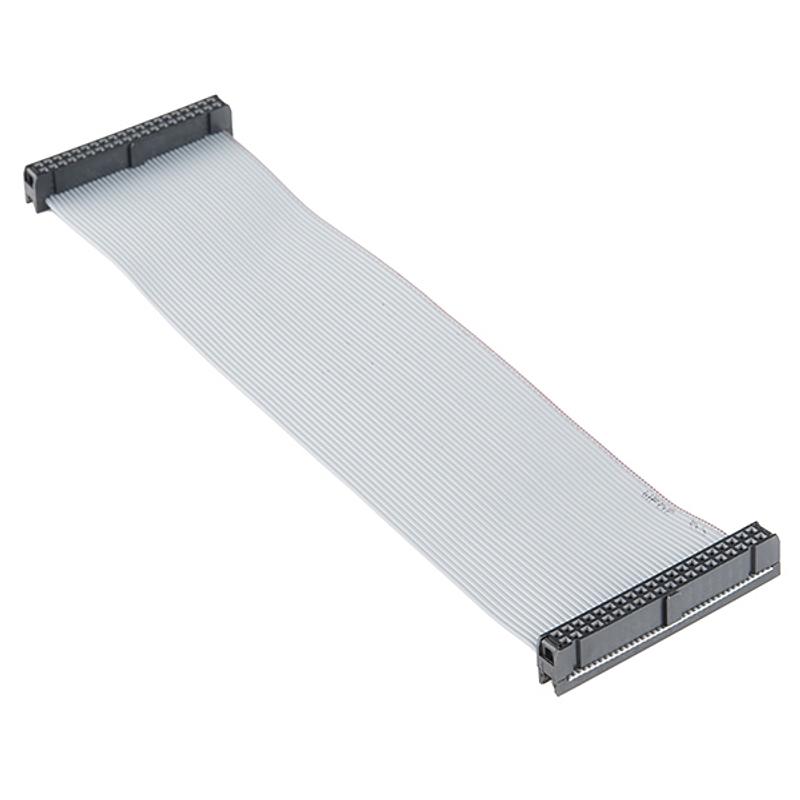

This 40-pin (2×20) flat ribbon cable connects to the GPIO header on the Raspberry Pi, providing easy access to all GPIO, I2C, SPI, UART, and power pins. The 6-inch (15 cm) length keeps things tidy while giving you room to work with breadboards, breakout boards, and HATs.

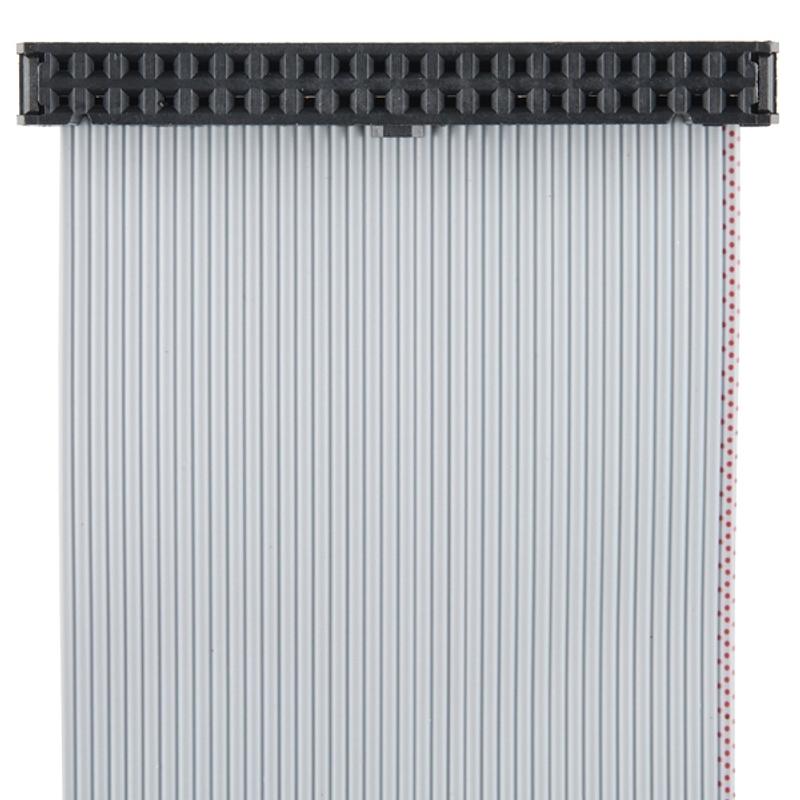

The cable uses standard 0.1" pitch IDC connectors and is keyed for correct polarity, preventing accidental reversed connections.
Key Features
- 40-Pin (2×20) IDC – Fits the full Raspberry Pi GPIO header
- Keyed Connectors – Polarised for correct orientation
- 0.1" Pitch – Standard spacing compatible with breadboards and breakout boards
- 6-Inch Length – Compact cable for clean setups
Compatibility
- Raspberry Pi 3 Model B / B+
- Raspberry Pi 2 Model B
- Raspberry Pi Model B+
- Any board with a 40-pin GPIO header
Package Contents
- 1× 40-Pin GPIO Ribbon Cable (6 inches)
