Qwiic Module for Tessel 2

The Qwiic Module for Tessel 2 connects the I²C bus (GND, 3.3V, SDA, and SCL) on the Tessel 2 to the SparkFun Qwiic system. Just plug the module onto either Tessel Port (A or B), plug in a cable, and start playing with a variety of sensors and actuators. There are two connectors, all on the same I²C bus, so you can connect multiple devices.

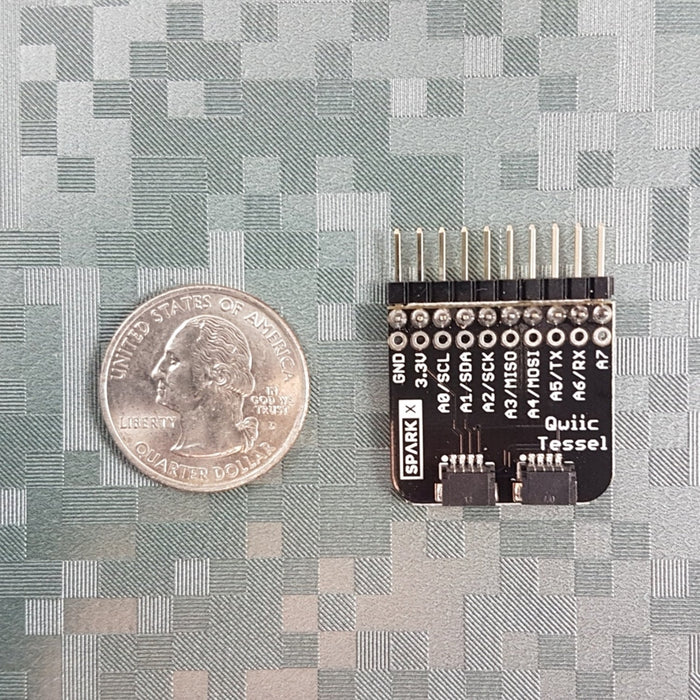

The module comes soldered with a male header so you can get started immediately! We also exposed a 2nd row of hardware pins so that you can create connections to the hardware pins (Serial, SPI, and GPIO) if needed.

The Qwiic system enables fast and solderless connection between popular platforms and various sensors and actuators. You can read more about the Qwiic system here. We carry 50mm, 100mm, 200mm, 500mm, and breadboard friendly Qwiic cables.

We do not plan to regularly produce SparkX products so get them while they’re hot!

Features:

• Two Qwiic connectors
• Male 10-pin header
• Connector: SM04B-SRSS or equivalent
• 2nd row of hardware pins exposed in 0.1" header for easy soldering

Documents:

• Schematic
• Example JSON connecting the BME280 to the Tessel 2
• Eagle Files
• To get the latest files please visit the GitHub repo
