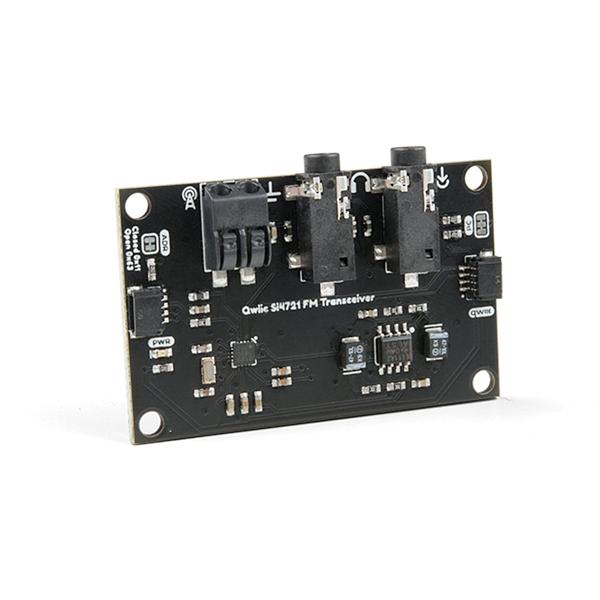

Qwiic FM Transceiver - Si4721
The Qwiic FM Transceiver breakout board features the Silicon Labs Si4721, which integrates both FM broadcast reception and low-power FM stereo transmission into a single IC. It can tune FM stations for listening and transmit audio on the FM band — all controllable over I2C via Qwiic connectors.
In addition to stereo audio, the Si4721 supports RDS/RBDS for transmitting and receiving text data on the FM band — the same technology commercial stations use for call signs and song titles. The board includes a 3.5 mm line-in jack for audio input, a 3.5 mm headphone output with onboard TPA6111 headphone amplifier, and a poke-home connector for antenna attachment.
Key Features
- Silicon Labs Si4721 – Combined FM receiver and transmitter
- FM Stereo Transmission – Low-power, standards-compliant broadcast
- FM Reception – Full FM band tuner
- RDS/RBDS Support – Send and receive text data over FM
- 3.5 mm Line-In – Audio input jack for transmission
- 3.5 mm Headphone Out – TPA6111 headphone amplifier
- I2C Interface – Qwiic connectors, address configurable (0x11 or 0x63)
- Antenna Connector – Two-position poke-home terminal
- Reliable Range – Approximately 10–20 metres
Ideal For
- FM radio projects and experimentation
- Wireless audio streaming over short distances
- Broadcasting sensor data or text via RDS
- Intercom and local broadcast applications
Note: This is an extremely low-power transmitter designed for unlicensed use in most regions. However, you are responsible for complying with local RF transmission regulations. Always check your local laws before transmitting.
