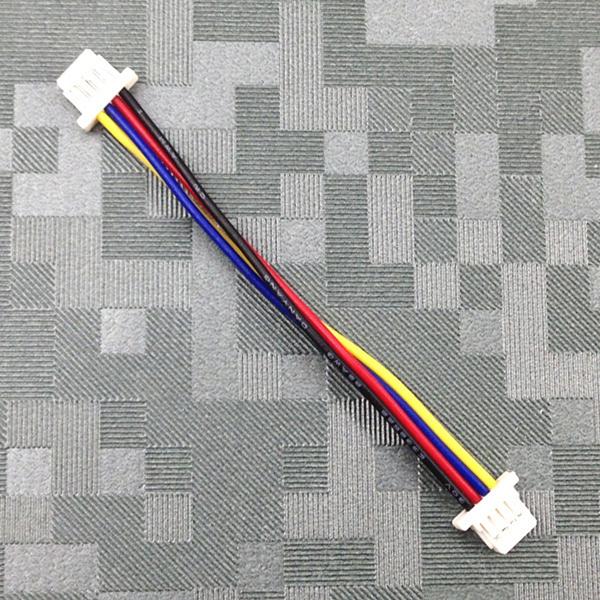

Qwiic Cable - 50mm

This 50 mm Qwiic cable is a 4-conductor cable with 1 mm pitch JST SH connectors on both ends, used to connect Qwiic-compatible boards together for solderless I²C communication. The colour-coded wires (black, red, blue, yellow) are wired straight through.

Key Features

• 50 mm Length – Ideal for compact builds where boards are close together
• 4-Conductor – GND, 3.3 V, SDA, SCL
• JST SH Connectors – 1 mm pitch, polarised to prevent incorrect connection
• Colour-Coded Wires – Black (GND), red (3.3 V), blue (SDA), yellow (SCL)

Specifications

• Length – 50 mm
• Wire Gauge – 28 AWG
• Connector – SHR04V-S-B
• Mating Connector – SM04B-SRSS or equivalent
• Wiring – Straight through

Package Contents

• 1× Qwiic Cable (50 mm)
