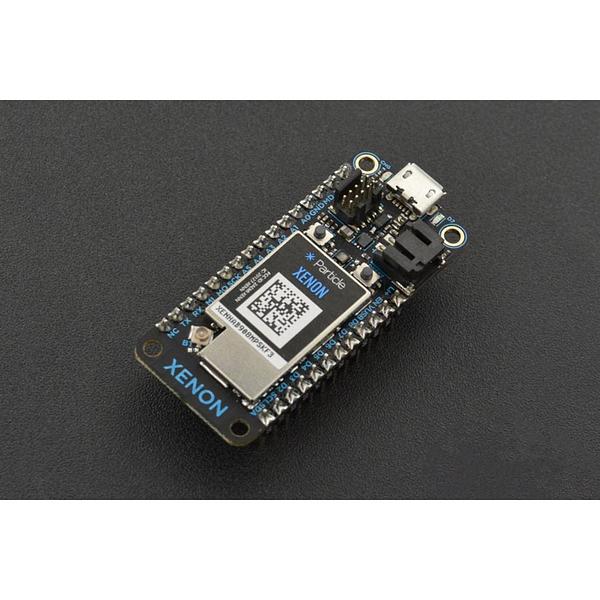

Particle Xenon IoT Development Board (Mesh+Bluetooth)
Xenon is a mesh-enabled IoT development board from Particle, low-cost and very suitable for beginners. It is designed to act as a standalone endpoint and repeater in a Particle Mesh network.
Xenon is pretty small, you can easily cover it with one hand. It adopts the Nordic nRF52840 processor that can provide excellent performance in complicated application. Meanwhile, Xenon is equipped with large-capacity Flash, RAM and peripherals, including native USB support, and also has built-in battery charging circuitry so it’s easy to connect a Li-Po. You can deploy your local network in minutes! The Xenon is best for connecting sensors, motors, pumps, valves and points of data-interest. Pair it with an Argon or Boron gateway to osmosis all that great data into the Device Cloud.
All Particle hardware is designed from the ground up to work with the Device Cloud. This is a powerful set of tools and infrastructure to build, connect, and manage your IoT fleet. The Particle Could has some great features for building connected projects, including over-the-air firmware updates, and easy-to-use REST API, and firmware development supported by web and local IDEs.
SPECIFICATION
Nordic Semiconductor nRF52840 SoC
- ARM Cortex-M4F 32-bit processor @64MHz
- 1MB flash, 256KB RAM
- IEEE 802.15.4-2006: 250 Kbps
- Bluetooth 5: 2 Mbps, 1 Mbps, 500 Kbps, 125 Kbps
- Supports DSP instructions, HW accelerated Floating Point Unit (FPU) calculations
- ARM TrustZone CryptoCell-310 Cryptographic and security module
- Up to +8 dBm TX power (down to -20 dBm in 4 dB steps)
- NFC-A tag
Main Parameters
- On-board additional 2MB SPI flash
- 20 mixed signal GPIO (6 x Analog, 8 x PWM), UART, I2C, SPI
- Micro USB 2.0 full speed (12 Mbps)
- Integrated Li-Po charging and battery connector
- JTAG (SWD) Connector
- RGB status LED
- Reset and Mode buttons
- On-board PCB antenna
- U.FL connector for external antenna
- FCC, CE and IC certified
- RoHS compliant (lead-free)
- Dimension: 50.8x22.8x15.3mm/2.0x0.90x0.60”
- Weight: 7.3g
