MyoWare Muscle Sensor Development Kit

The MyoWare Muscle Sensor Development Kit is an Arduino-powered electromyography (EMG) sensor kit that lets you measure and respond to muscle activity. The MyoWare board outputs 0V to Vs (supply voltage) depending on the amount of activity in the selected muscle — simply attach the included biomedical sensor pads, read the analogue output, and start building muscle-controlled projects.

This kit includes the MyoWare Muscle Sensor along with all four shields (Power, Cable, LED, and Proto), sensor pads, a sensor cable, and stackable headers for easy shield stacking in multiple configurations.

Key Features

• EMG Muscle Sensing – Measures filtered and rectified electrical muscle activity
• Analogue Output – 0V to Vs proportional to muscle activation level
• 4 Stackable Shields – Power, Cable, LED, and Proto shields included
• Arduino Compatible – Simple analogue read for easy integration
• Stackable Headers – 3-pin stackable headers for flexible shield configurations

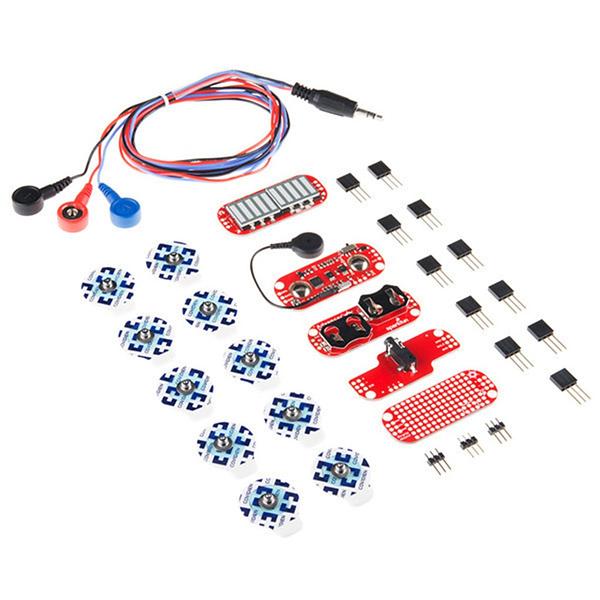

Package Contents

• 1× MyoWare Muscle Sensor
• 1× MyoWare Power Shield
• 1× MyoWare Cable Shield
• 1× MyoWare LED Shield
• 1× MyoWare Proto Shield
• 1× Sensor cable (3-connector)
• 10× Biomedical sensor pads
• 11× Stackable headers (3-pin, female)
• 3× Headers (3-pin, male)

Ideal For

• Muscle-controlled robotics and prosthetics
• Biometric sensing and health monitoring projects
• Human-computer interaction research

Resources

• MyoWare Muscle Sensor Kit Guide
• MyoWare User Manual (PDF)
• Sensor Pad Datasheet
• Arduino Example Code
• Eagle Files (Shields)
• GitHub – Example Code & Design Files
