Microsoft Hackster.io Virtual IoT Pack – w/ Raspberry Pi 3

A comprehensive IoT starter kit built around the Adafruit Feather HUZZAH ESP8266 WiFi board and a Raspberry Pi 3 Model B. Originally curated for the Microsoft and Hackster.io IoT Virtual Bootcamp, this pack includes everything you need to get started with Internet of Things projects — sensors, actuators, a display, breadboard, jumper wires, and more.

The pre-soldered Feather HUZZAH ESP8266 runs at 80 MHz with built-in WiFi, USB, and battery charging. Program it via the Arduino IDE for quick IoT prototyping. The included Raspberry Pi 3 adds a full Linux computer to your setup for cloud connectivity and data processing.

Key Features

• Feather HUZZAH ESP8266 – Pre-soldered WiFi development board with USB and battery charging
• Raspberry Pi 3 Model B – Full Linux computer with WiFi and Bluetooth
• 7″ HDMI Display – 800×480 display backpack for visual output
• Sensors Included – Temperature/humidity, PIR motion, vibration, magnetic contact, and light sensors
• Actuators Included – Micro servo and piezo buzzer
• Complete Prototyping Kit – Breadboard, jumper wires, LEDs, resistors, switches, and more

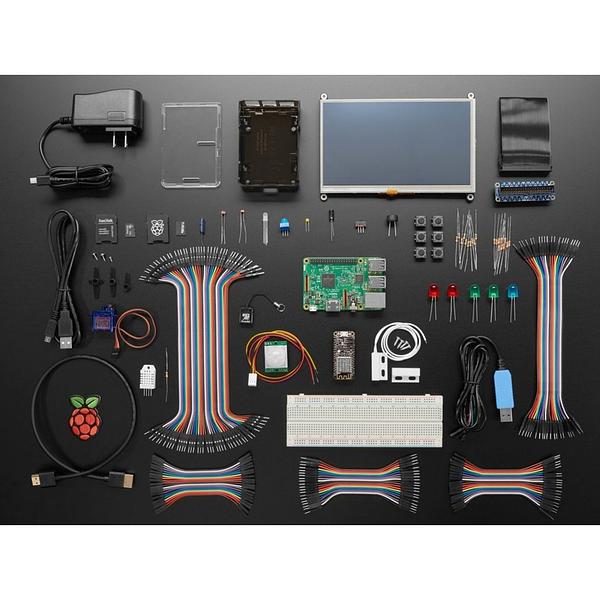

Package Contents

Boards & Computing

• 1× Assembled Adafruit Feather HUZZAH ESP8266 WiFi
• 1× Raspberry Pi 3 Model B (1 GB RAM)
• 1× Raspberry Pi Case (smoke base, clear top)
• 1× Assembled Pi Cobbler Plus Breakout Cable
• 1× 8 GB MicroSD Card with NOOBS
• 1× SD/MicroSD Memory Card (8 GB SDHC)
• 1× USB MicroSD Card Reader/Writer

Display & Cables

• 1× HDMI 7″ 800×480 Display Backpack (without touch)
• 1× Slim HDMI Cable (1.5 ft)
• 1× USB Cable A/Micro-B
• 1× USB to TTL Serial Debug Cable
• 1× 5V 2.4A Power Supply with Micro-USB Cable

Sensors & Actuators

• 2× AM2302 (DHT22) Temperature-Humidity Sensor
• 1× PIR Motion Sensor
• 1× Fast Vibration Switch
• 1× Magnetic Contact Switch (door sensor)
• 2× Photo Cell Light Sensor
• 1× Micro Servo
• 1× Piezo Buzzer

Prototyping Components

• 1× Full-Sized Breadboard
• 1× Male/Male Jumper Wires (40× 12″)
• 1× Female/Female Jumper Wires (20× 6″)
• 1× Female/Male Extension Jumper Wires (20× 6″)
• 1× Male/Male Jumper Wires (20× 3″)
• 6× 12mm Tactile Switches
• 1× 10K Breadboard Trim Potentiometer
• 2× Diffused 10mm Green LED
• 2× Diffused 10mm Red LED
• 1× Diffused 10mm Blue LED
• 1× Diffused RGB (tri-colour) LED
• 10× 10K Resistors (5%, 1/4W)
• 10× 560 Ohm Resistors (5%, 1/4W)
• 1× 1.0 µF Electrolytic Capacitor
• 1× SPDT Slide Switch
• 1× Raspberry Pi Iron-On Skill Badge

Resources

• Feather HUZZAH ESP8266 Guide
