$11.65
|
In stock
The Little Bird Toucan is an smart RGB LED HAT designed for the Raspberry Pi!Based on the APA102, the Toucan packs 8 super-bright LEDs.Each of the LEDs ar...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout

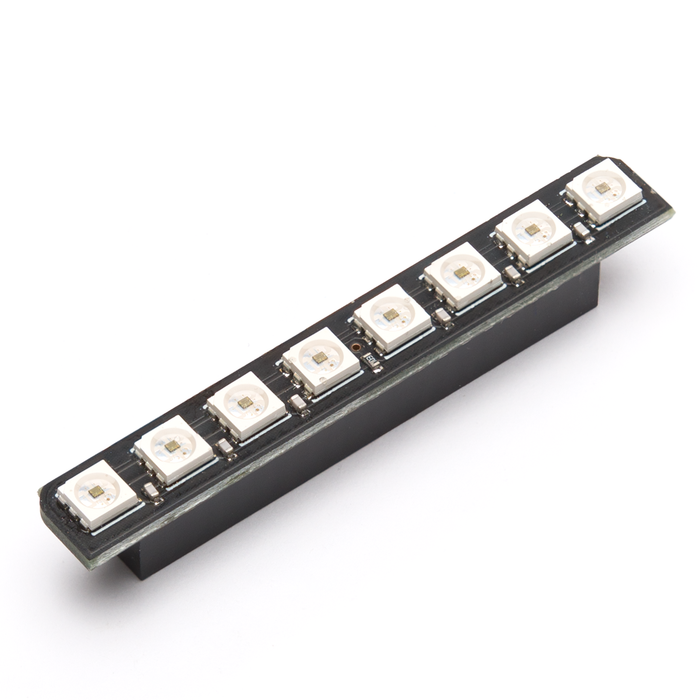

The Little Bird Toucan is an smart RGB LED HAT designed for the Raspberry Pi!
Based on the APA102, the Toucan packs 8 super-bright LEDs.
Each of the LEDs are dimmable, and individually controllable (Raspberry Pi Rainbow LEDs anyone?)!
You can use the Toucan for creating Raspberry Pi LEDs status indicators, and they make a great Raspberry Pi Neopixel alternative!
Based on the APA102, the Toucan packs 8 super-bright LEDs.
Each of the LEDs are dimmable, and individually controllable (Raspberry Pi Rainbow LEDs anyone?)!
You can use the Toucan for creating Raspberry Pi LEDs status indicators, and they make a great Raspberry Pi Neopixel alternative!
Just like other Raspberry Pi RGB LEDs, you can create generate colourful gradients, pulsing effects or just flash them on and off like crazy.
Simply plug it atop the Pi, where it sits conveniently, and fire up the Python library to blast out some rainbows or flickering lights!
If you're looking for LEDs for Raspberry Pi, or controllable LED lights, the Toucan is for you. Not only is low cost, but is made in Sydney, Australia!
The Data Line is on Pin 16 (GPIO23) and Clock Line is on Pin 18 (GPIO24).
Includes:
- 1x Little Bird Toucan Board
Specifications:
- 5V input voltage.
- APA102(datasheet) - LED
- Single Wire Serial
- 40 Pin header
- Dimensions: 9mm (width) x 65mm (height) x mm (depth)
- WARNING! These lights can be very bright.
Features
- Eight APA102 RGB LEDs
- Individually controllable pixels
- Sits directly on top of your Pi in a tiny footprint
- Fits inside most Pi cases
- Doesn't interfere with PWM audio
- Compatible with Raspberry Pi 3B+, 3, 2, B+, A+, Zero, and Zero W
- Libraries available:
- A library that drives APA102 · PyPI
- Or the blinkt library
- If you’re using an Arduino, check out these libraries
- Comes fully assembled
Notes
- Be careful to plug in your Toucan the correct way round, it has curves on the top that match the corners of your Raspberry Pi
- The dimensions of Toucan are 65mm long x 8mm wide x 10mm thick (thickness includes header and pixels)
Jargon buster
Plain-language definitions for the technical terms used above.
- LED
- A light-emitting diode (LED) is a small electronic component that emits light when current flows through it in the correct direction. Because it only conducts one way, its polarity matters, and a through-hole LED must be soldered the correct way around to light up.
- NeoPixel
- A type of addressable LED system where colour data is sent along a single digital data line from one LED or controller to the next. Compatibility matters because the timing and signal format must match for the lights or driver board to respond correctly.
- PWM
- Pulse Width Modulation is a way for a digital pin to simulate variable output power by switching on and off very quickly. It matters for controlling things like LED brightness, motor speed, or servo-style signals from a microcontroller pin.
- RGB
- Short for red, green and blue, the three primary colours of light that are mixed in varying amounts to make a wide range of colours. In electronics RGB can refer to an LED or pixel that blends these three colours, or to a colour signal or interface that carries separate red, green and blue channels.
