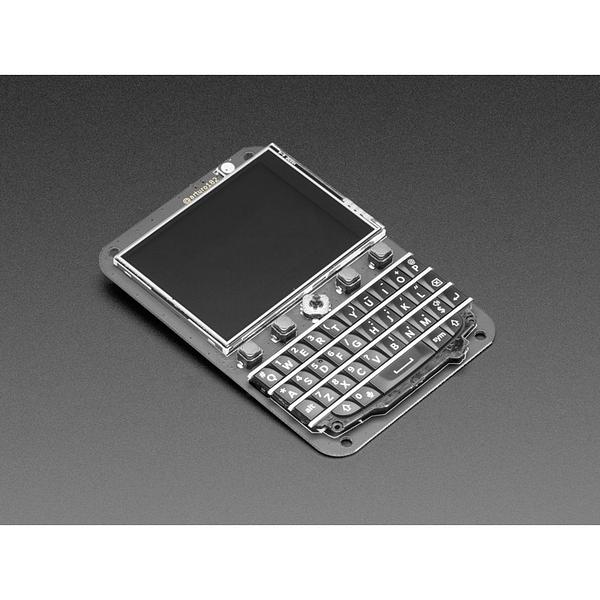

Keyboard FeatherWing - QWERTY Keyboard + 2.6 LCD
Discontinued
The Keyboard FeatherWing from Solder Party adds a handheld QWERTY keyboard and a 2.6-inch colour LCD to any board compatible with the Adafruit Feather ecosystem. Its compact, thumb-friendly form factor makes it ideal for building portable computing devices, terminals, and handheld interfaces.
The FeatherWing does not include a processor — plug in your choice of Feather board (ESP32, nRF52840, RP2040, etc.) to create a complete handheld device. Support is available for both Arduino and CircuitPython with example code provided.
Key Features
- 2.6-Inch Colour LCD – 320×240, 16-bit colour with resistive touchscreen
- QWERTY Keyboard – BlackBerry-compatible layout, designed for thumb typing
- 5-Way Navigation Button – Directional input plus centre press
- 4 Soft Tactile Buttons – Programmable function keys
- 1× NeoPixel – Addressable RGB LED for status indication
- MicroSD Connector – Data storage for files, logs, and assets
- Stemma QT / Qwiic Connector – Quick I2C sensor connection
- On/Off Switch – Hardware power control
- Dual-Row Feather Sockets – Plug in any compatible Feather board
- 4 Mounting Holes – For enclosure and project integration
- GPIO Solder Jumpers – Configurable pin assignments
Note: A Feather-compatible board is required and sold separately. The Keyboard FeatherWing does not contain a microcontroller.
Ideal For
- Portable computing devices and handheld terminals
- IoT interfaces with keyboard and display
- Field data entry and sensor monitoring
- Retro handheld computer projects
Package Contents
- 1× Keyboard FeatherWing (keyboard + LCD assembly)
