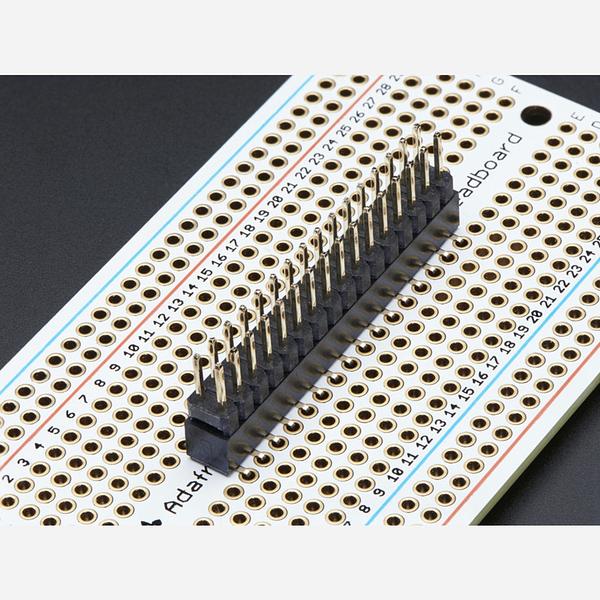

IDC Breakout Helper - 2x16 (32 pin)

$2.91

Part Number:  AF-2103
Brand:  Adafruit Australia

DescriptionThis 2x16 (32 pin - 0.1 spaced) IDC Breadboard Helper is great in conjunction with any 32-pin IDC cables.  It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a breadboard or Perma-Proto and then header plugs into the top of the socket. Since IDC cables are so standard, but a royal pain to use with breadboards, this is a good and cheap...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

This 2x16 (32 pin - 0.1 spaced) IDC Breadboard Helper is great in conjunction with any 32-pin IDC cables.  It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a breadboard or Perma-Proto and then header plugs into the top of the socket. Since IDC cables are so standard, but a royal pain to use with breadboards, this is a good and cheap hack for prototyping. Works best when soldered in place. Adafruit have used these to prototype on a solderless breadboard but some customers report their breadboards don't play nice with the shorter pins so your mileage may vary

Each order comes with one socket and one header. Breadboard, Perma Proto and IDC cable not included!

Adafruit also have helpers for:






Technical Details

  • Dimensions (assembled): 41mm x 8mm x 17mm / 1.6" x 0.3" x 0.7"
  • Dimensions (header): 40mm x 5mm x 12mm / 1.6" x 0.2" x 0.5"
  • Dimensions (socket): 41mm x 8mm x 8mm / 1.6" x 0.3" x 0.3"
  • Weight (assembled): 4g
