All Products
Showing 1-16 of 16 products · 6 unavailable products hidden

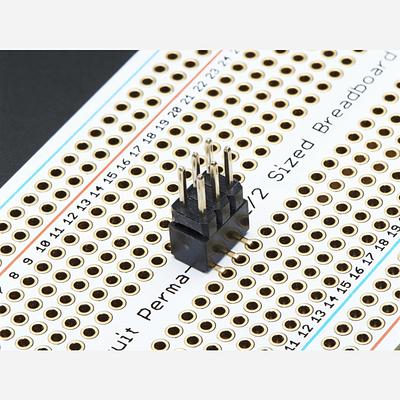

IDC Breakout Helper - 2x3 (6 pin)
·
This little 2x3 (6 pin - 0.1 spaced) IDC Breadboard Helper is great in conjunction with our 6-pin IDC cable. It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a breadboard or Perma-Proto and then header p...
IDC Breakout Helper - 2x20 (40 pin)
·
The "poor woman's" Raspberry Pi A+ / B+ / Pi 2 cobbler! This combo of 2x20 pin (0.1 spaced) header and socket is for our popular GPIO Ribbon Cable for Raspberry Pi Model A+/B+/Pi 2 (40 pins). It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the c...
IDC Breakout Helper - 2x13 (26 pin)
·
The "poor woman's" Raspberry Pi cobbler! This combo of 2x13 pin (0.1 spaced) header and socket is for our popular GPIO Ribbon Cable for Raspberry Pi Model A and B. It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a breadboard o...
IDC Breakout Helper - 2x8 (16 pin)
·
This 2x8 (16 pin - 0.1" spaced) IDC Breadboard Helper is great in conjunction with any 16-pin IDC cables. It comes in two parts, a 'pin-through' socket and a male header. The socket straddles the center of a breadboard or Perma-Proto and then header p...
IDC Breakout Helper - 2x5 (10 pin)
·
This 2×5 (10-pin) IDC breadboard helper makes it easy to connect standard 10-pin IDC ribbon cables to a breadboard or Perma-Proto board. The two-piece design consists of a pin-through socket that straddles the centre of a breadboard and a male header that plugs into the top of the socket. A prac...
10-pin IDC Socket Rainbow Breakout Cable
·
A breakout cable with a 10-pin IDC socket connector on one end and individual 0.1" female socket pins on the other, connected by 6 inches (150mm) of colour-coded rainbow ribbon cable. Useful for breaking out 10-pin headers to individual connections on a breadboard or test setup. Key Features 1...
2x3 Pin Shrouded Header
This 2×3 (6-pin) shrouded header with 2.54 mm (0.1″) pitch provides a keyed connection that prevents cable mishaps. The shroud ensures correct orientation when connecting ribbon cables or IDC connectors. Key Features 6-Pin (2×3) – Dual-row header layout Shrouded/Keyed – Prevents incorrect cab...
2x20 pin IDC Box Header - Raspberry Pi A+/B+/Pi 2/Pi 3
·
This 2×20 (40-pin) IDC box header is the matching connector for 40-pin GPIO ribbon cables used with Raspberry Pi models that have a 40-pin GPIO header. Solder it onto perfboard to create a breakout point for your Pi's GPIO, or use it in any custom PCB design. Key Features 40-Pin (2×20) – Match...
Raspberry Pi GPIO Ribbon Cable - 40-pin, 6 (RPi 3, RPi2, B+)
This 40-pin (2×20) flat ribbon cable connects to the GPIO header on the Raspberry Pi, providing easy access to all GPIO, I2C, SPI, UART, and power pins. The 6-inch (15 cm) length keeps things tidy while giving you room to work with breadboards, breakout boards, and HATs. The cable uses standard ...
GPIO Ribbon Cable 2x10 IDC Cable - 20 pins 12" long
·
This 20-pin GPIO ribbon cable provides a clean, reliable connection between PCBs, development boards, and breakout headers. The soft, flexible 0.05″ ribbon cable with keyed IDC connectors on both ends ensures correct orientation every time. Pin 1 is marked with a pink stripe along the side of th...
SWD 0.05 Pitch Connector - 10 Pin SMT Box Header
·
This 1.27mm pitch, 2x5 male SMT Box Header is the same one used on our SWD Cable Breakout Board. The header alone is great if you want to incorporate this piece of hardware with your own software. We're specifically selling it so you can solder it onto our nRF52 Feather to add SWD debu...
Adafruit GPIO Expander Bonnet - 16 Additional I/O over I2C
·
The Adafruit GPIO Expander Bonnet adds 16 extra digital I/O pins to your Raspberry Pi over I²C. Based on the MCP23017 chip, it plugs directly onto the Pi's 40-pin header and communicates via SDA/SCL, leaving your other GPIO pins free. Each pin can be configured as a digital output (up to 20 mA pe...
40-pin FPC to Right Angle 2x20 IDC Female Socket Header
·
A 40-pin FPC to right-angle 2×20 IDC female socket header adapter board. Converts a standard 40-pin 0.5mm pitch FPC/FFC cable connection into a Raspberry Pi-compatible GPIO socket, allowing you to extend or relocate your Pi's GPIO header using a slim, flexible cable. Plug the female socket direc...
DIN Rail 2x20 IDC to Terminal Block Adapter Breakout
·
This one's going out to all the makers and designers who use DIN railing in their builds. This adapter plate is perfect for simplifying complex wiring. You connect a 2x20 IDC cable to this very PCB, which can be DIN rail-mounted. Then, all 40 pins are broken out into terminal blocks, so...
40-pin FPC to Right Angle 2x20 IDC Male Plug Header Adapter
·
A 40-pin FPC to right-angle 2×20 IDC male plug header adapter board. Converts a standard 40-pin 0.5mm pitch FPC/FFC cable connection into a male GPIO plug, allowing you to connect HATs and Bonnets at a distance from your Raspberry Pi via a slim, flexible cable. Insert the male plug into your HAT...
40-pin FPC to Straight 2x20 IDC Female Socket Header
·
A 40-pin FPC to straight 2×20 IDC female socket header adapter board. Converts a standard 40-pin 0.5mm pitch FPC/FFC cable connection into a Raspberry Pi-compatible GPIO socket, allowing you to extend or relocate your Pi's GPIO header using a slim, flexible cable. Plug the female socket directly...
