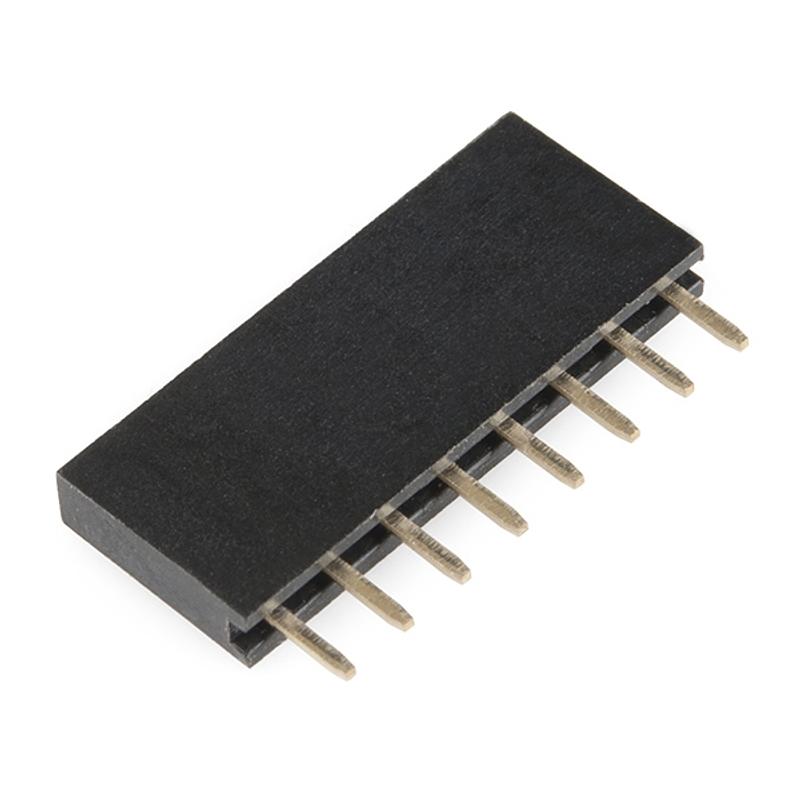

Header - 8-pin Female (PTH, 0.1)
All Products
Headers & Connectors
New Arrivals
SparkFun
Brands and Manufacturers
Prototyping
Components
$1.60
|
In stock
A standard 8-pin female header with 0.1" (2.54 mm) pitch, designed for through-hole mounting. Connects with most standard 8-pin male headers. Specifications...
Get notified when back in stock
Estimated Delivery
Arrives
Disclaimer
Secure checkout
A standard 8-pin female header with 0.1" (2.54 mm) pitch, designed for through-hole mounting. Connects with most standard 8-pin male headers.
Specifications
- Pins – 8
- Pitch – 0.1" (2.54 mm)
- Type – Female, through-hole (PTH)
Package Contents
- 1× 8-Pin Female Header
Resources
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- PTH
- Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
- through-hole
- A mounting style where the component leads pass through holes in a circuit board and are soldered on the other side. Through-hole parts are often easier to handle and solder by hand, which is useful for classroom and hobby projects.
Find this product in
Brands
Header 8-pin Female 0.1in Datasheet
Datasheet · 51.1 KB · Click any page to view full size
Supplier page — sparkfun.com
Supplier Description · 399.0 KB · Click any page to view full size
