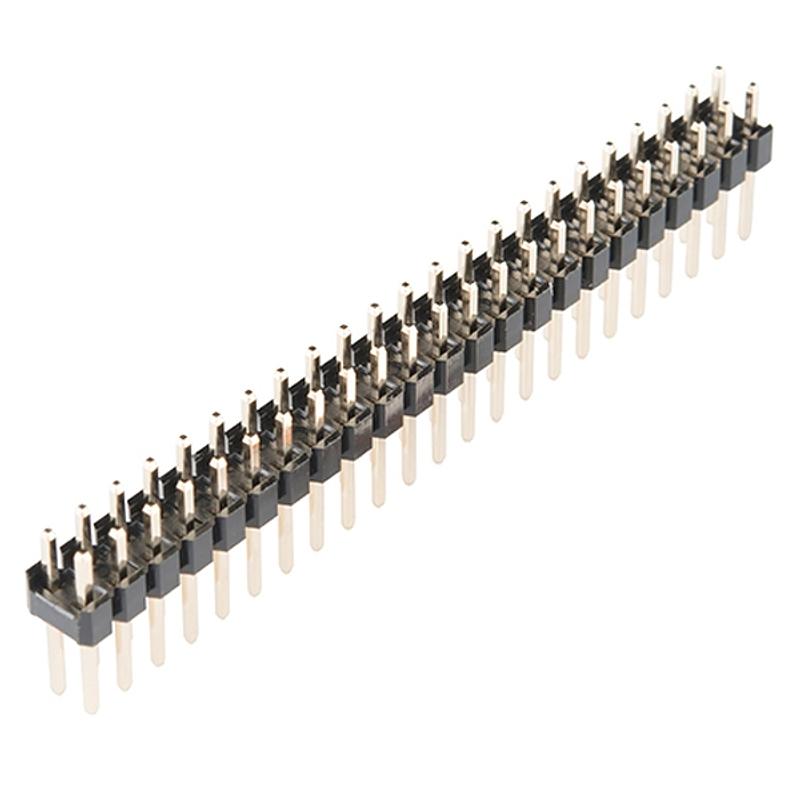

Header - 2x23-pin Male (PTH, 0.1)
This is a 2x23 pin male PTH header. This piece is in the common configuration for Beaglebone Black headers that can be broken apart to form smaller header fo...
Get notified when back in stock
This is a 2x23 pin male PTH header. This piece is in the common configuration for Beaglebone Black headers that can be broken apart to form smaller header formations. Each pin has a spacing of 0.1" in between each other.
Documents:
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of connector contacts on a fixed pitch (commonly 2.54 mm) used to link a board to a breadboard, jumper wires, or another board. They come as male pin headers and female socket headers; when a module ships with pre-soldered headers it can be used straight away, whereas bare pads require soldering the pins yourself.
- PTH
- Plated through-hole means the pin holes are metal-lined so solder connects the pad on both sides of the board. It is useful for connectors and headers that need a strong mechanical and electrical connection.
