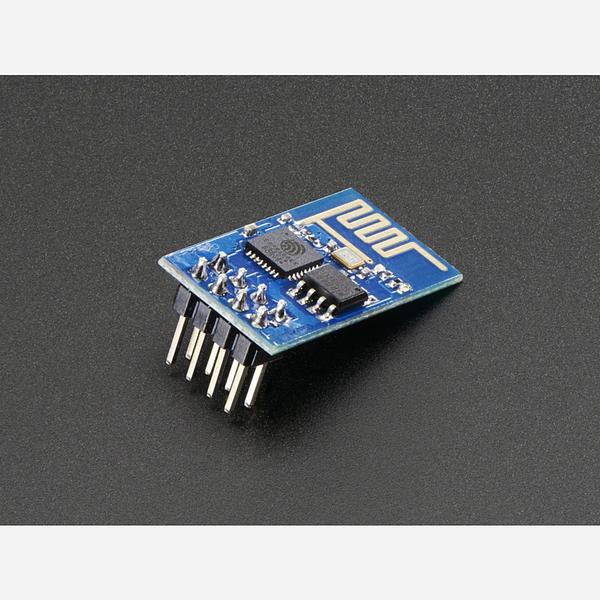

ESP8266 WiFi Module

$10.56

Part Number:  AF-2282
Brand:  Adafruit Australia

DescriptionThis interesting module is a lot of fun for hobbyists and students who are interested in experimenting with the ESP8266 WiFi chipset. Adafruit bought a bunch of these modules, updated the firmware to the much-easier-to-use v0.924 and wrote some Arduino code to grab a theybpage. Adafruit do not have a detailed tutorial at this time, this chipset/module is for the curious and adventurous! There's tons...
We can dispatch today: - units (delivered by -)
We can dispatch in - days: - units (delivered by -)

Description

This interesting module is a lot of fun for hobbyists and students who are interested in experimenting with the ESP8266 WiFi chipset. Adafruit bought a bunch of these modules, updated the firmware to the much-easier-to-use v0.924 and wrote some Arduino code to grab a theybpage.

Adafruit do not have a detailed tutorial at this time, this chipset/module is for the curious and adventurous! There's tons of details and experiementation over at http://www.esp8266.com

This module is very low cost, but very simple. It doesn't support SSL, or communcation over SPI - just UART!  It doesn't have 5V to 3V logic level shifting so you'll probably want to pick up a logic level shifter, it also doesn't have a regulator on board and it can use big spikes of 300mA or more current at 3.3V so if using with an Arduino, an external 3V regulator is essential! (Seriously don't try to power it from the 3.3V power pin the Arduino!) Also, the connector is kind of annoying and not breadboard-friendly, some female-to-male wires can help out in that case to make it easy to plug into a breadboard

That said, it does do the job, and can be used as a UART-at-9600-baud to WIFI adapter using Adafruit's example code for Arduino or, for the really adventurous, programmed directly using an SDK

- Again, they do not have a detailed tutorial at this time! Right now, they're offering this for experimenters' use only - they cannot offer support, returns or refunds for this product.






Technical Details

  • Dimensions: 25mm x 15mm x 1mm / 1.0" x 0.6" x 0.04"
  • Weight: 1.5g

Some resources:

Revision history:

  • As of Jan 7, 2015 they now ship with 0.924 version firmware
