DSO Nano V3 - Pocket-Sized Digital Oscilloscope

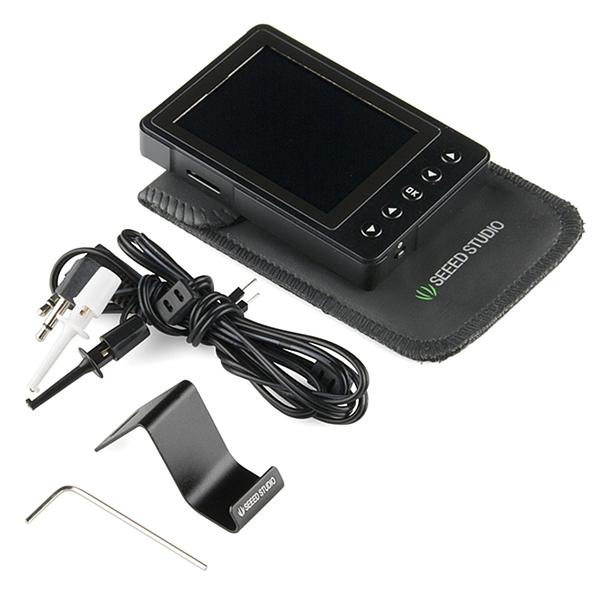

An oscilloscope is an awesome tool to have around the shop. Unfortunately, most scopes take up quite a bit of bench space and they’re not very portable. The DSO Nano v3, on the other hand, is a 32bit digital storage oscilloscope that fits in the palm of your hand! Based on ARM -M3, it’s equipped with a 320x240 color display, internal 2MB storage, USB port and recharging function. It’s compact, simple to operate and perfect for everything from the test bench to field work.

The version 3 of DSO Nano differs from version 2 in that it does not use white plastic shell. Instead, it uses black metal shell which is more durable and rugged.

Note: This item may take longer to process due to battery installed in the equipment and therefore does not qualify for same-day shipping policy. Additionally, these batteries can not be shipped via Ground or Economy methods to Alaska or Hawaii. Sorry for any inconvenience this may cause.

Dimensions: 91 x 62 x 13mm

Features

  • Portable and lightweight
  • Color display
  • Waveform storage and playback
  • 6 triggering modes
  • 200Khz Analog Bandwidth
  • Complete measurement markers and signal characteristics
  • Built-in Signal Generator
  • Analog bandwidth: 0 - 200KHz
  • Max sample rate: 1Msps 12Bits
  • Sample memory depth: 4096 Point
  • Input impedance: >500KΩ
  • Max input voltage: 80Vpp (by ×1 probe)
  • Trig modes: Auto, Normal, Single, None, Scan and Fit; Rising/Falling edge/level trigger; Trig level adjustable with indicator; Trig sensitivity adjustable with indicator.
  • Waveform Functions: Auto measurement: frequency, cycle time, duty cycle, peak voltage, RMS voltage, Average voltage and DC voltage; Precise vertical/horizontal measurement with markers; Hold/Run.
  • Signal Generator: 10Hz~1MHz square wave
  • Waveform storage: Internal 2MB Storage
  • PC connection via USB

Documents:

Replaces:TOL-10244
