Direct Drive Servo Motor DDSM315 – Low Noise, Wide Speed, RC Car & Robot Compatible

Transform your RC car or robot project's mobility and precision with the DDSM315 Direct Drive Servo Motor—a powerhouse of innovation and efficiency. Upgrade your DIY endeavors with this state-of-the-art motor aimed at hobbyists and innovators who refuse to compromise on quality and performance.

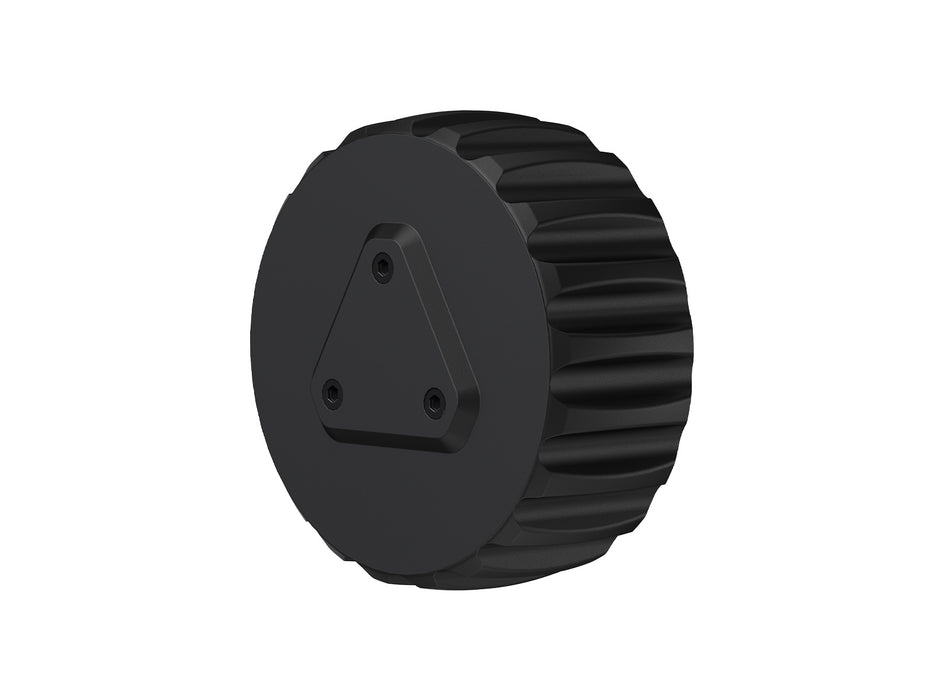

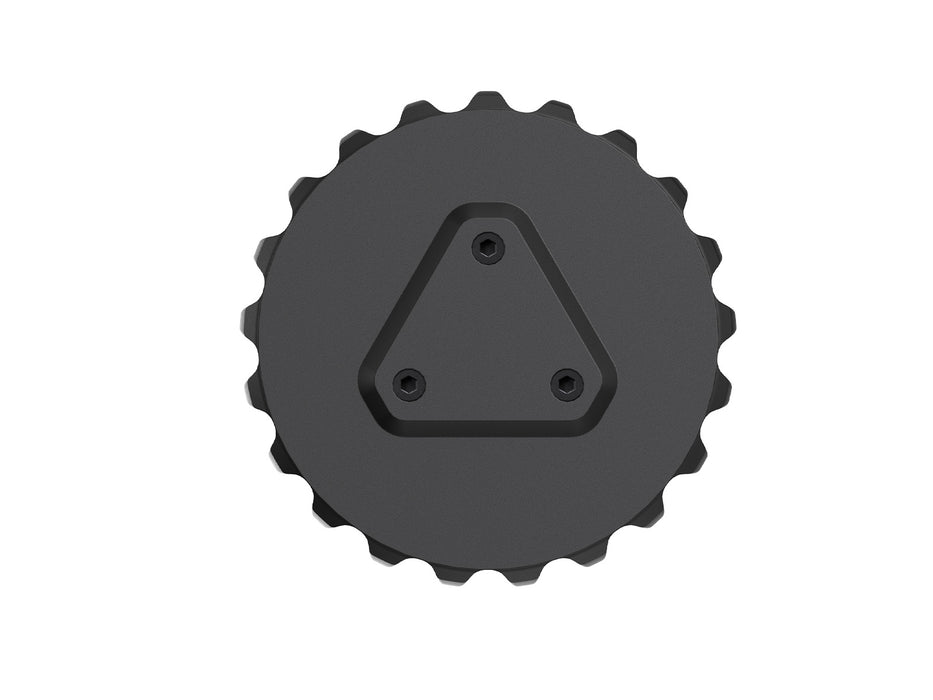

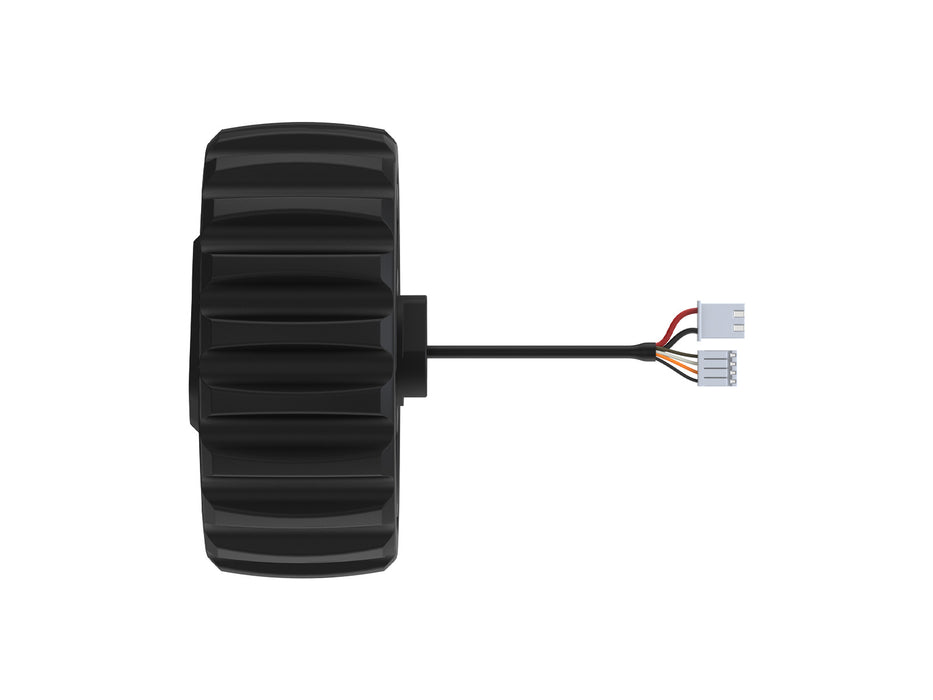

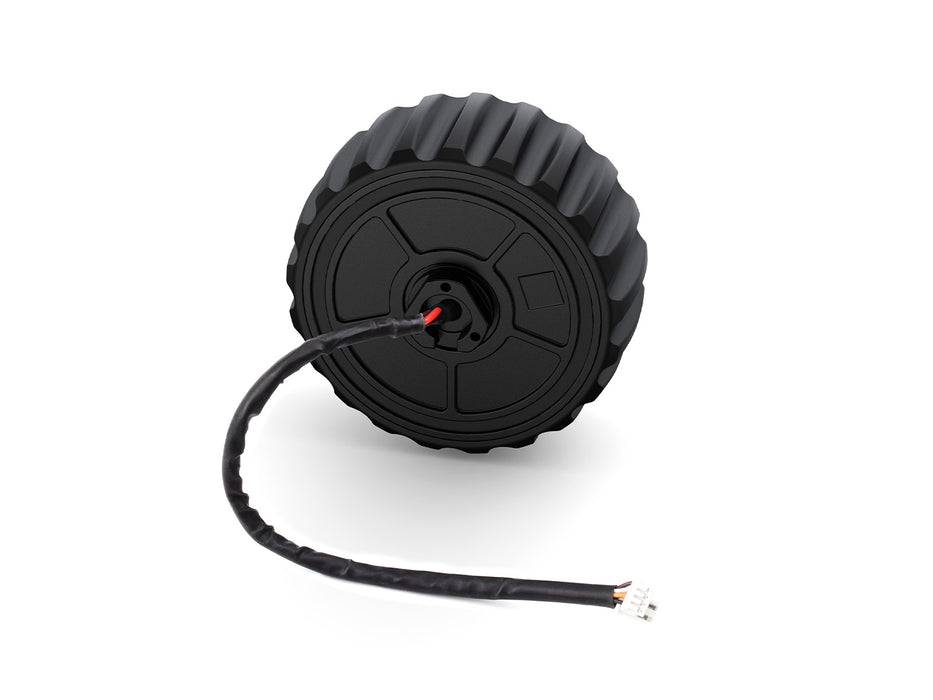

Product Name: DDSM315 Direct Drive Servo Motor for RC Car Robot DIY

Product Description:

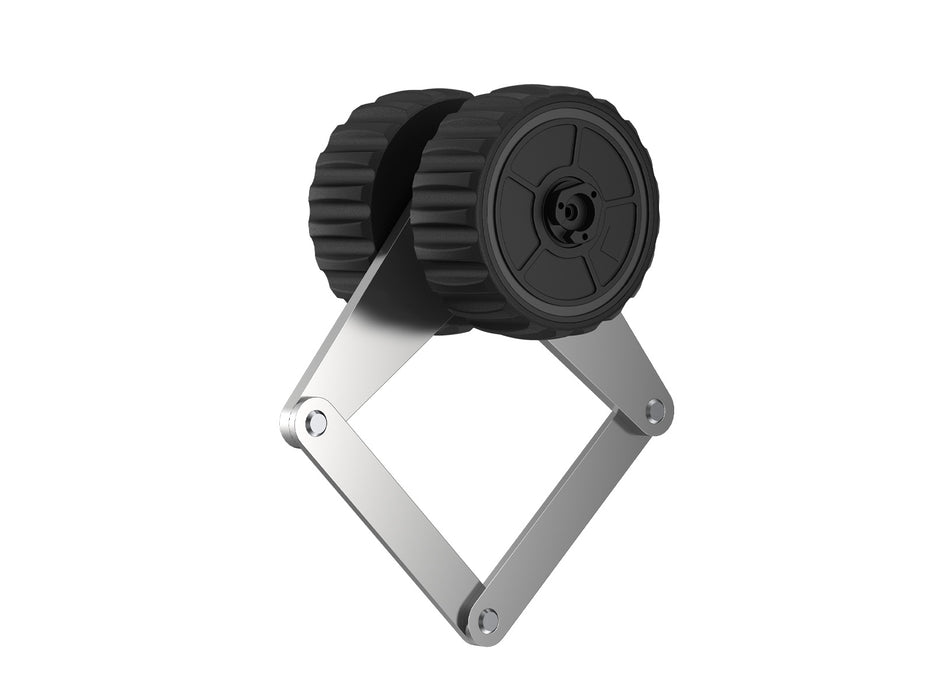

The DDSM315 Direct Drive Servo Motor is a groundbreaking addition to the world of robotics and radio-controlled (RC) vehicles. Embrace the sleek integration of advanced technology with this all-in-one wide speed range adjustable hub motor. Designed for enthusiasts and professionals alike, the DDSM315 provides a low noise operation and supports suspension installation, ensuring your DIY projects operate as smoothly as possible.

Features and Benefits: - Direct Drive Technology: By eliminating the traditional reducer, this servo motor offers efficient, high-precision control without the noise, expense, or bulkiness. - All-In-One Robot Joint: Enjoy the benefits of a Permanent Magnet Synchronous Motor (PMSM) that seamlessly incorporates a brushless outer rotor motor, encoder, and servo capabilities into one compact, reliable unit. - High Precision and Zero-Backlash: Achieve fast, responsive movement without any lag, providing your RC car or robot with superior control and positioning. - Ultra Low Noise: Run your projects at ≤50dB noise levels, making this motor perfect for applications where discretion and minimal auditory disruption are crucial. - Integrated Design: Simplify your setup with an all-inclusive motor and driver system that encourages space efficiency and high integration. - RS485 Bus Communication: Coordinate multiple direct drive servo motors with a single RS485 communication line, enhancing the simplicity of your design.

Technical Specifications: - Operating Speed Ranges: No-load speed at 315±10RPM and a rated speed of 200RPM. - High Torque: Enjoy a rated torque of 0.55Nm with a significant locked-rotor torque of 1.1Nm. - Encoder Resolution: 12bit for precise positioning and movement tracking. - Operating Temperatures: -20℃ to 45℃, allowing for a wide range of environmental resilience. - Versatility in Power: Rated voltage of 18V DC (compatible with 5S LiPo) and a speed constant of 17.5RPM/V.

Additional Features: - Multi-Operating Modes: Select from current loop, position loop, and velocity loop mode to match your specific application requirements. - Protective Measures: Gain peace of mind with Hall position detection and over-current protection integrated into the motor. - Waterproof & Dustproof: With an IP54 protection rating, your motor is safeguarded against dust and splashing water, ensuring a longer service life.

Applications: Crafted for versatility, the DDSM315 is suitable for home robots, industrial and commercial robots, UGV robot chassis, and more.

Package Content: - 1x DDSM315 Direct Drive Servo Motor (Note that the robot chassis shown in the image is not included; however, we provide its open-source drawing)

For more in-depth information, resources, and services, please visit the WIKI at www.waveshare.com/wiki/DDSM315.

Whether you're building from scratch or upgrading an existent project, the DDSM315 Direct Drive Servo Motor is your tool for superior execution and innovation in the realm of RC and robotic DIY. Choose DDSM315 for unparalleled precision and reliability in your craft.
