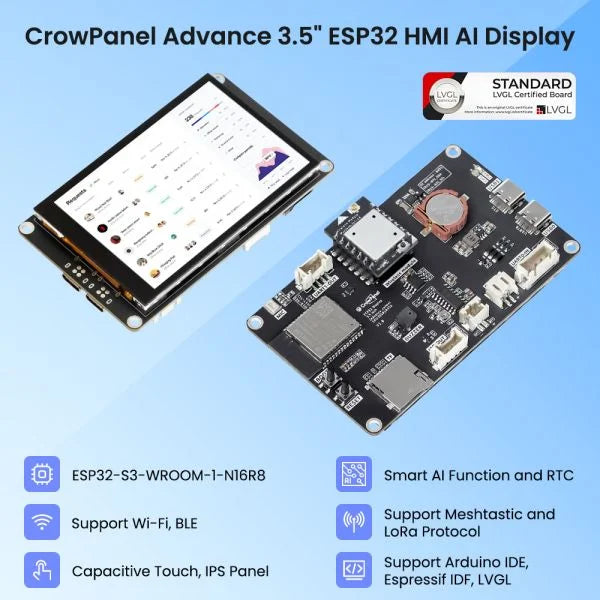

CrowPanel Advance 3.5"-HMI ESP32 AI Display for Meshtastic 480x320 Artificial Intelligent IPS Touch Screen with case

Following the acclaim of the CrowPanel Basic Series screens, we are now launching the upgraded CrowPanel Advance Series screens, aiming to provide more outstanding performance and richer features.

This Advance ESP32 3.5-inch display is the Meshtastic version of the CrowPanel Advanced display. The included SX1262 LoRa module allows the screen to access the Meshtastic network and talk to other Meshtastic devices.



It is a powerful HMI touch display with a 480*320 resolution IPS screen. It uses the ESP32-S3 chip as the core processor. This chip is equipped with an Xtensa 32-bit LX7 dual-core processor with a main frequency of up to 240MHz, equipped with 512KB SRAM, 8M PSRAM and 16M Flash, providing the device with powerful data processing capabilities. The integrated 2.4GHz Wi-Fi and BLE functions, combined with the built-in RF antenna, ensure the stability and reliability of the wireless connection. Also, the diverse interfaces and low power make this 3.5-inch screen ideal for HMI applications that need strong wireless connectivity. It supports the Arduino IDE, Espressif IDF, and PlatformIO. It is compatible with the LVGL graphics library and supports C++.

This 3.5-inch screen uses an IPS panel, and the 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle. Capacitive touchtechnology enables smooth, responsive interactions. It makes every touch accurate and intuitive.

A notable feature of the CrowPanel Advance 3.5-inch display is its integrated AI function. Users can interact by using the microphone and speaker. This includes voice recognition and speech synthesis. They can have seamless conversations with smart assistants to get information. With the SX1262 wireless module, the Advance 3.5" HMI display can support access to the Meshtastic network(An open source, off-grid, decentralized, mesh network built to run on affordable, low-power devices).

This display integrates the latest Meshtastic technology, optimized port layout, excellent display touch performance, and larger storage space. These improvements enhance the flexibility and reliability of connectivity, provide users with more diverse choices and wider application possibilities, and meet the stringent requirements of modern intelligent systems for remote monitoring and control. This 3.5" display also supports tactility. Click here to learn more.


Designed and manufactured by Elecrow, customized requests can be discussed(based on MOQ), you can contact us at service@elecrow.com.

Integrated Intelligent AI Functions

Voice interaction is achieved through the microphone and speaker, allowing seamless conversations with the smart assistant and easy access to information.

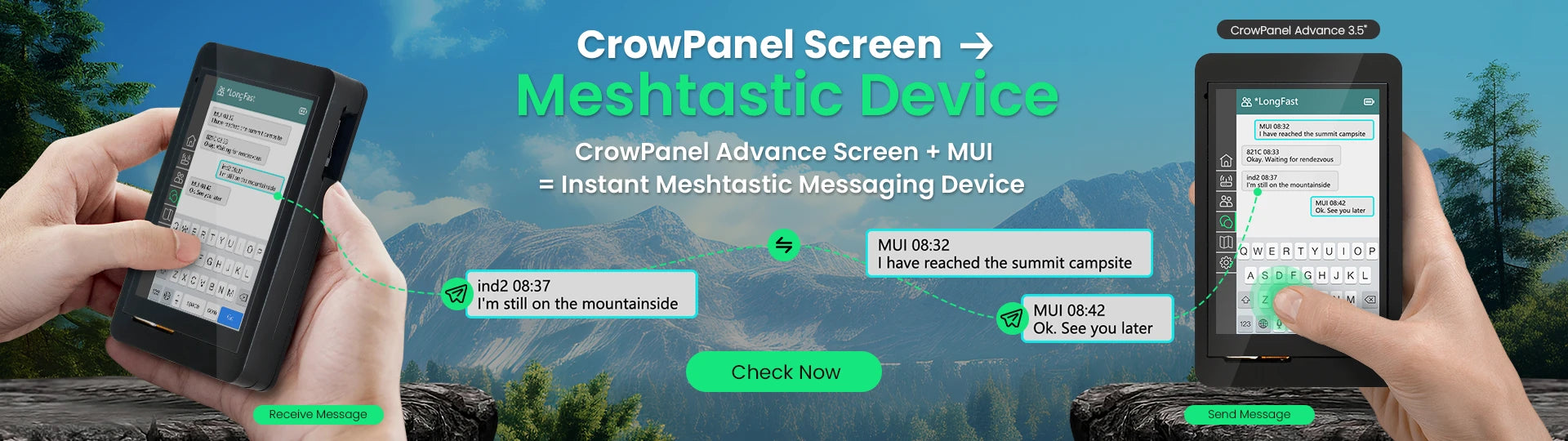

CrowPanel Screen + MUI = Instant Meshtastic Messaging Device

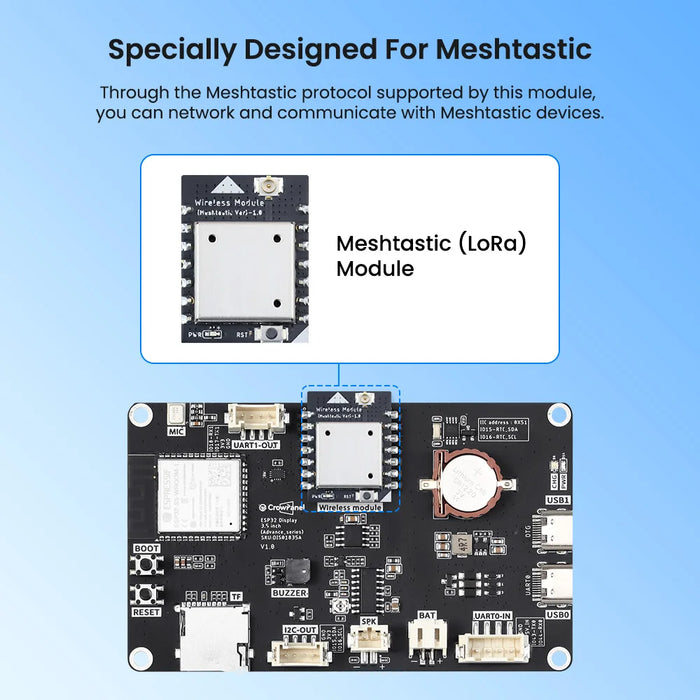

Replaceable Wireless Module Design, Provides Diversified Wireless Communication Options

By replacing the module, the display supports multiple communication protocols such as Zigbee, LoRa, nRF2401, Matter, Thread and Wi-Fi 6. One screen can meet various wireless communication requirements.

Note: Please click here if you need to buy the display with other wireless modules.

IPS Panel With 178°Wide Viewing Angle

The 178°wide viewing angle allows you to enjoy a vivid visual experience at any angle.

Support Multiple Development Environments

It supports multiple development environments, such as Arduino IDE, Espressif IDF, and PlatformIO, and development languages, such as C++, to meet the needs of different developers and make every project possible.

Support Open Source Graphics Library - LVGL

It supports the LVGL graphics library, and you can design various UIs.

Design And Build UI Easily With SquareLine Studio

Easily design and build your own LVGL UI with SquareLine Studios, simplifying design and development.

Squareline Vision has entered BETA, sign up now to get 40% off all licenses. https://vision.squareline.io/

Connect With More Than 150+ Crowtail Sensors

Application Scenario

It is suitable for various scenes such as automotive HMI, medical equipment, drone control, camera control, smart home, home automation, industrial control, civil electronics,  smart agriculture, environmental monitoring and IoT application devices.

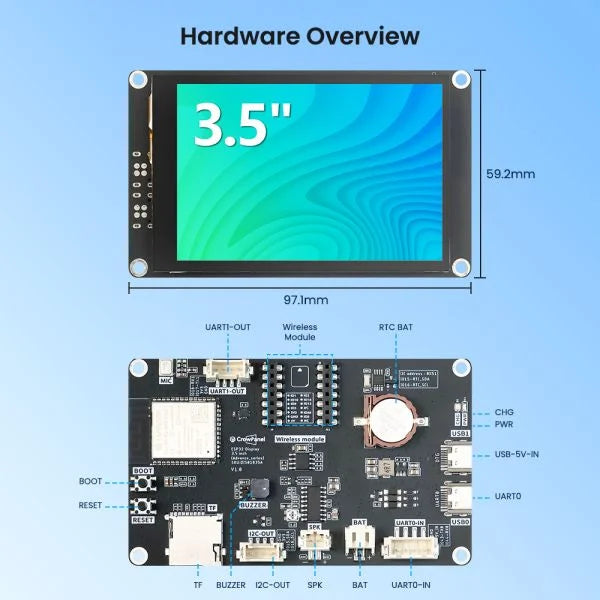

Hardware Overview

Feature

Application scenarios



Target Group

Engineers and technicians, system integrators, facility managers, R&D personnel, agricultural workers, environmental scientists, medical professionals, retailers and restaurant owners, educational institutions, energy companies, etc.

Specification

Main Chip-ESP32-S3-WROOM-1-N16R8
CPU/SoC | high-performance Xtensa 32-bit LX7 dual-core processor, with up to 240MHz
System Memory | 512KB SRAM、8M PSRAM
Memory | 16M Flash，384KB ROM
Development Language | C/C++
Development Environment | ESP-IDF、Arduino IDE、PlatformIO、LVGL
Screen
Size | 3.5 inch
Diver IC | ILI9488
Resolution | 480*320
Display Panel | IPS Panel
Touch Panel | Capacitive Single Touch
Viewing Angle | 178°
Brightness | 400 cd/m²(Typ.)
Color Depth | 16-bit
Wireless Communication - Onboard Antenna
WiFi | Support 2.4GHz, 802.11a/b/g/n
Bluetooth | Support Bluetooth 5.0 and BLE
Other | LoRa
Interface/Function
Interface | USB port, UART, I2C, SD card slot, battery socket, speaker port, microphone, etc.
Function | RTC clock, audio amplifier, volume control, battery charge management, USB to UART, etc.
Button/LED Indicator |
Reset Button | Yes, press to reset the device
Boot Button | Yes, press and hold the power button to burn the program
PWR | Power indicator
CHG | Lithium battery charging status, completion indication
Other
Installation method | Back hanging, fixed hole
Operating temperature | -20~70 °C
Storage temperature | -30~80 °C
Power Input | 5V/2A, USB or UART terminal
Dimensions | 101.4*63.3*15.8mm

Wireless Module Details for SX1262(LoRa)

Pin | Pin Direction | Note
DIO1 | Input/Output | Configurable general purpose IO ports
SCK | Input | SPI Data Pin
MISO | Input | SPI Data Pin
MOSI | Output | SPI Data Pin
3V3 |   | Power supply
GND |   | Ground wire, connected to the power reference ground
NRESET | Output | Chip reset trigger input pin, low level is effective
DIO2 | Input | RF switch send/receive control pin, low level is receiving, high level is sending
BUSY | Output | Used for status indication
NSS | Input | Module chip select pin, used for SPI communication
DIO3 | Input/Output | Configurable general purpose IO ports



Antenna Performance

Gain（dBi） | 3.5dBi
VSWR | <=1.9
Input impedance（Ω） | 50
Polarization | Vertical
Lightning Protection | DC Ground
Mechanical Specification
Wire Spec | RF1.13
Wire length(cm) | 10cm
Input connector type  | IPEX-1
Antenna weight(kg) | 0.01
Operating temperature | -40℃~85℃



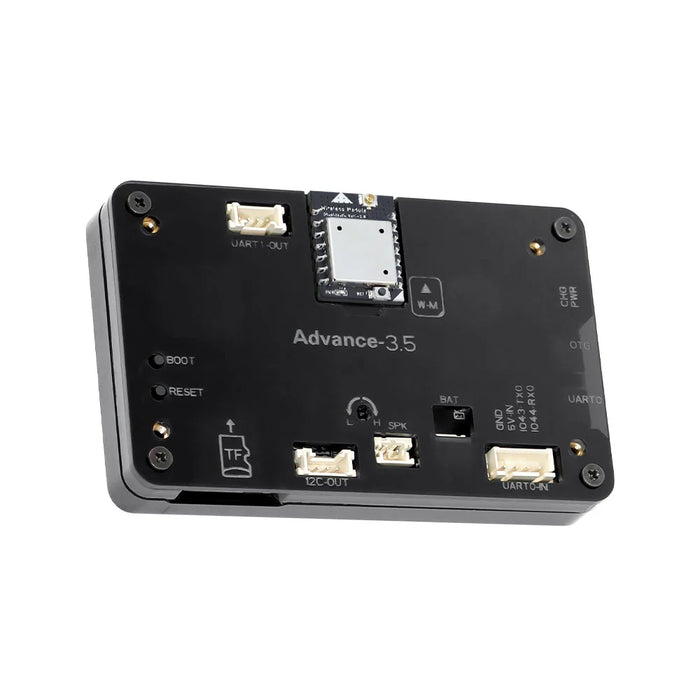

Display Pin Definition

Pin | Description | Connector Type
SPK | Output audio signal and connect to speakers. The mainboard has a power amplifier chip circuit. | PH2.0-2P
PWR | Power LED |
RST | Reset button. Press it to reset the system. |
BOOT |   |
UART0-OUT | Build communication between Logic modules, including serial communication module and printing module. | HY2.0-4P
UART0-IN |   | XH2.54-4P
I2C-OUT | Establish communication between the microcontroller and peripheral devices. | HY2.0-4P
BAT | Connect lithium battery. (With battery charging circuit) | PH2.0-2P

For more pin functions, see Wiki.
