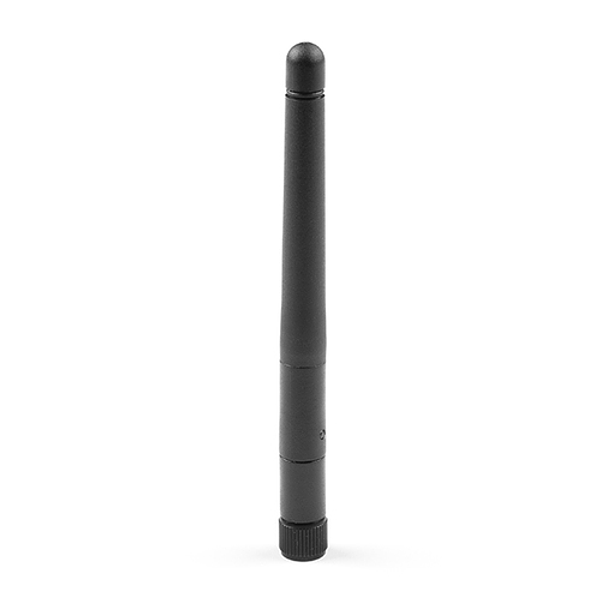

868MHz European LoRa Antenna RP-SMA - 1/4 Wave 2dBi

This compact 1/4 wave rubber duck antenna is designed for the European 868 MHz LoRa band, providing 2 dBi gain in a shorter 105 mm form factor. It connects via an RP-SMA connector, making it compatible with most LoRa modules and gateways.

Key Features

• 868 MHz Centre Frequency – Designed for the European LoRa ISM band
• 2 dBi Gain – Improved range over basic antennas
• 1/4 Wave Design – Compact 105 mm length
• RP-SMA Connector – Standard connector for LoRa modules and gateways

Also Available

• 868 MHz LoRa Antenna – 1/2 Wave Dipole – Longer 200 mm dipole version

Specifications

• Centre Frequency: 868 MHz
• Gain: 2 dBi
• Type: 1/4 wave rubber duck
• Connector: RP-SMA
• Length: 105 mm

Ideal For

• European LoRa/LoRaWAN nodes and gateways
• 868 MHz ISM band applications
• Compact IoT deployments

Package Contents

• 1× 868 MHz RP-SMA 1/4 Wave Antenna

Resources

• Dimensional Drawing (PDF)
