4-Pin LED Strip Connector Cable-Single Head (5PCS)
These solderless 4-pin LED strip connector cables have a snap-down connector on one end and DuPont-style female headers on the other, making it easy to conne...

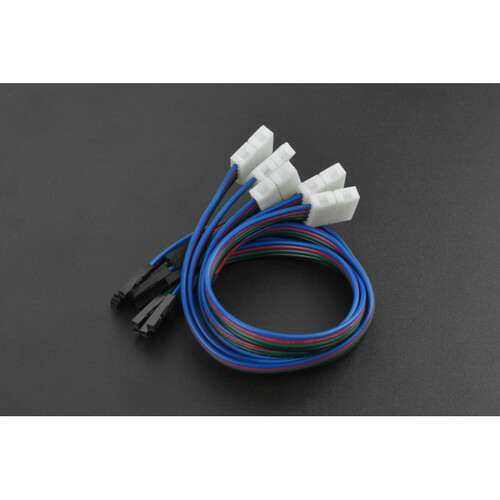

These solderless 4-pin LED strip connector cables have a snap-down connector on one end and DuPont-style female headers on the other, making it easy to connect an RGB LED strip directly to a microcontroller or driver board. The 20cm colour-coded wires with clearly marked polarity simplify wiring. Designed for 10mm wide, 4-wire RGB LED strips.
Key Features
- Snap-Down + DuPont Design – Strip connector on one end, female DuPont headers on the other
- Colour-Coded Wires – Clearly marked polarity for easy identification
- 20cm Wire Length – 22AWG UL-certified wire
- Pack of 5 – Multiple cables for larger installations
Specifications
- Suitable Strip Width – 10mm
- Suitable Strip Thickness – 0.2–0.3mm
- Wire Length – 20cm
- Wire Gauge – 22AWG (UL certified)
- Max Current – 5A
- Operating Temperature – −45°C to +105°C
- Connector – DuPont female (breadboard/header compatible)
Ideal For
- Connecting RGB LED strips to Arduino, Raspberry Pi, or driver boards
- LED lighting installations and decorations
- Prototyping with breadboard-compatible connections
Package Contents
- 5× 4-Pin LED Strip Connector Cables (single head)
Jargon buster
Plain-language definitions for the technical terms used above.
- Headers
- Rows of metal pins used to plug a module into a breadboard or connect it with jumper wires. Pre-soldered headers make the module easier to use straight away without needing to solder the pins yourself.
- LED
- A light-emitting diode is a small electronic component that lights up when current flows through it in the correct direction. In this kit, LEDs create the flashing effect, so polarity and correct soldering matter for the project to work.
- microcontroller
- A microcontroller is a small computer on a chip that runs your program and controls connected inputs and outputs. For this product, it is the part that reads buttons and sensors, drives the display and speaker, and communicates over Bluetooth.
- RGB
- Short for red, green and blue, usually referring to an LED that can mix those three colours. It matters because controlling an RGB LED teaches how separate outputs combine to create different colours.
