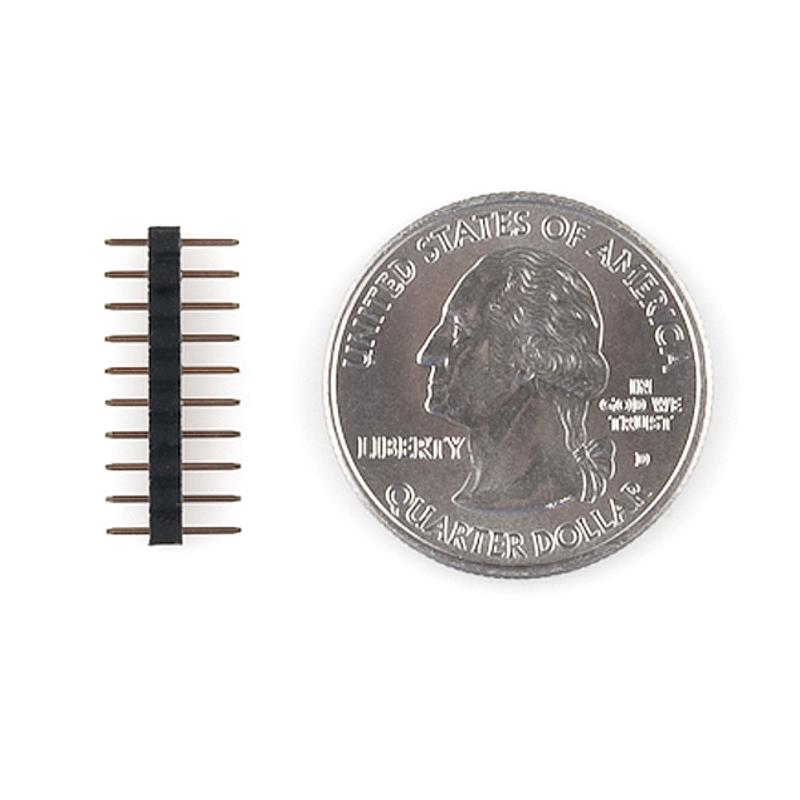

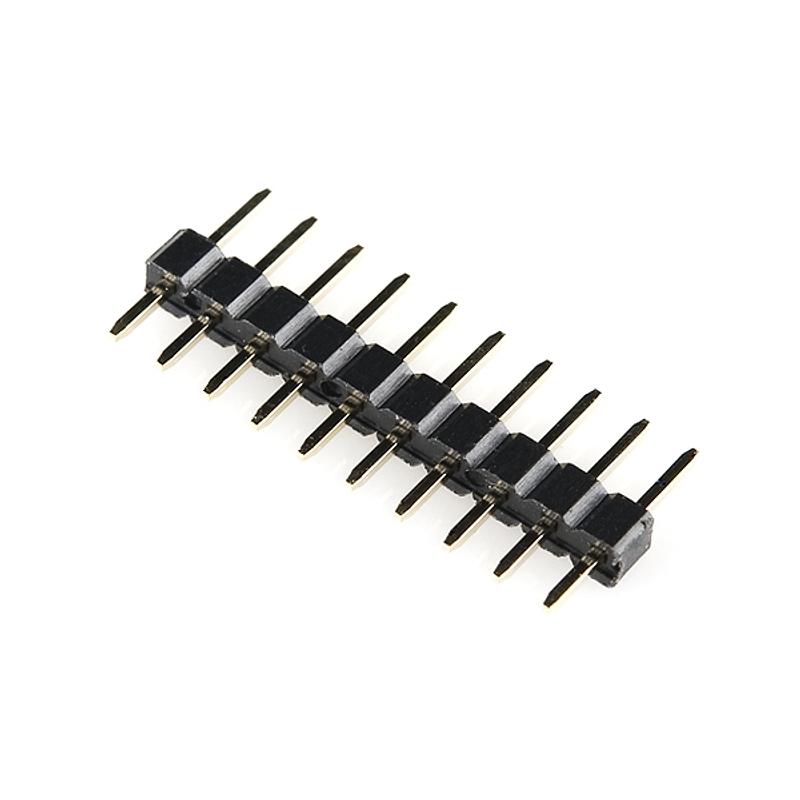

2mm 10pin XBee Header
This 2 mm pitch 10-pin header mates with 2 mm XBee sockets and is ideal for creating custom breakout boards, "dummy" XBee modules for testing, or any project...
This 2 mm pitch 10-pin header mates with 2 mm XBee sockets and is ideal for creating custom breakout boards, "dummy" XBee modules for testing, or any project requiring 2 mm pitch pin headers.
Key Features
- 2 mm Pitch – Matches XBee socket spacing
- 10 Pins – Compatible with standard XBee footprint
- Through-Hole – Solder directly to your PCB
Ideal For
- Custom XBee breakout boards and adapters
- Building "dummy" XBee modules for testing
- Any project requiring 2 mm pitch pin headers
Package Contents
- 1× 2 mm 10-pin header
Jargon buster
Plain-language definitions for the technical terms used above.
- breakout
- A breakout is a small circuit board that makes a tiny or hard-to-solder component easier to connect to with standard pins. It matters because this OLED module can be wired into a microcontroller project without needing to solder directly to the display’s fine contacts.
- Headers
- Rows of metal pins used to plug a module into a breadboard or connect it with jumper wires. Pre-soldered headers make the module easier to use straight away without needing to solder the pins yourself.
- PCB
- A printed circuit board is a rigid board with copper tracks that connect electronic parts without loose wires. For this kit, the PCBs also form the airplane shape, so they are both the circuit base and part of the finished model.
