USB to TTL 4-pin Wire
A USB to TTL serial adapter cable with an embedded PL2303 converter chip. This 1-metre cable provides a simple way to add serial communication to your projec...

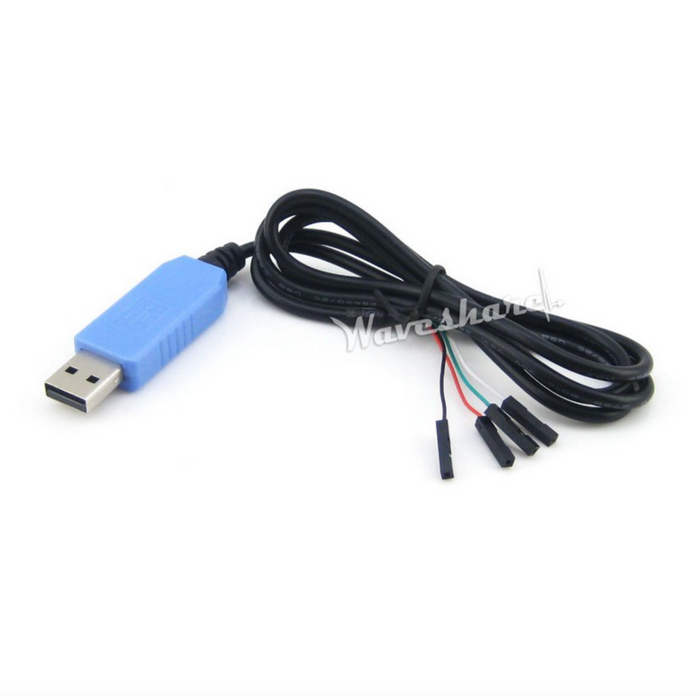

A USB to TTL serial adapter cable with an embedded PL2303 converter chip. This 1-metre cable provides a simple way to add serial communication to your projects, connecting a standard USB-A port to 3.3V TTL-level UART signals via a 4-pin 2.54mm header.
Ideal for accessing serial consoles on single-board computers like Raspberry Pi, debugging microcontrollers, or communicating with any device that uses TTL-level serial.
Key Features
- PL2303 Converter Chip – Reliable USB to UART bridge with wide OS support
- 3.3V TTL Logic – TX and RX lines operate at 3.3V, safe for modern microcontrollers
- 5V Power Output – VCC pin provides 5V from USB for powering target devices
- 2.54mm Pin Header – Standard pitch for easy breadboard and header connections
- 1m Cable Length – Generous length for comfortable bench use
Pinout
- Red – VCC (5V)
- Black – GND
- Green – TXD (3.3V TTL, connects to target RXD)
- White – RXD (3.3V TTL, connects to target TXD)
Compatibility
- Windows XP, 7, 8, 8.1, 10 and later
- macOS and Linux (driver support may vary)
Ideal For
- Raspberry Pi and single-board computer serial consoles
- Microcontroller UART debugging and programming
- Serial communication with GPS modules, sensors, and other TTL devices
- Embedded system development and diagnostics
Package Contents
- 1× USB to TTL 4-pin serial cable (1m)
