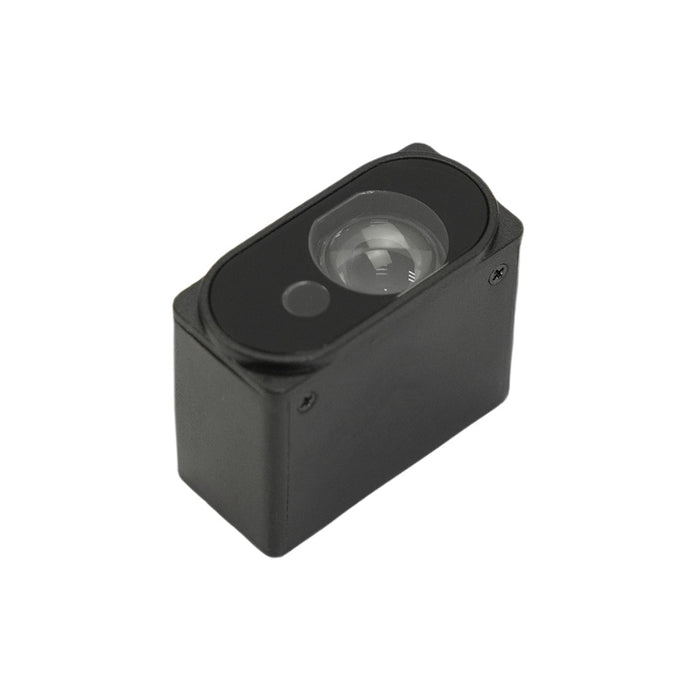

25m Long Distance ToF Laser Sensor (±3cm Accuracy, 100Hz, 100K LUX Resistant)

The TOFSense F2 is a high-performance laser distance sensor using dTOF (Direct Time-of-Flight) technology. With 25m range, ±3cm accuracy, and 100Hz refresh rate, it's ideal for robotics, industrial automation, drones, and smart traffic systems.

Engineered for robustness, its 100K LUX ambient light resistance ensures reliable operation outdoors and in high-interference environments. Multi-interface support (UART/I2C/GPIO) enables flexible integration with Raspberry Pi, Arduino, ESP32, and PLCs.

Key Features

• 25m Range – Mid-range detection for automation and robotics
• ±3cm Accuracy – Precise measurements with 1mm resolution
• 100Hz Refresh Rate – Real-time updates for dynamic applications
• 100K LUX Resistant – Operates reliably in direct sunlight
• Multi-Interface – UART, I2C, and GPIO trigger for sensor synchronisation

Ideal For

• AGV and robot navigation
• Warehouse automation and inventory tracking
• Drone altitude stabilisation
• Smart traffic and parking systems
• Conveyor belt tracking and bin level monitoring

Specifications

• Range – 0.05–25m
• Accuracy – ±3cm
• Resolution – 1mm
• Refresh Rate – 100Hz
• Wavelength – 905nm
• Ambient Light Resistance – Up to 100,000 LUX
• FOV – 1–2°
• Power Supply – 4.3–5.2V DC
• Power Consumption – 250mW (typical)
• Interface – UART / I2C / GPIO
• I2C Address – 0x80 (default)
• Operating Temperature – -10°C to +60°C
• Dimensions – 22.7 × 28.0 × 13.6mm
• Weight – 7.5g

Compatible With

• Raspberry Pi
• Arduino
• ESP32
• PLCs and industrial controllers

Package Contents

• 1× ToF Laser Ranging Sensor (25m)
• 2× Wiring cables
