15.6 Inch 1920x1080 IPS Type-C Touch Screen & Display for Raspberry Pi / LattePanda / Jetson Nano Single Board Computer
327 units available with a short lead time.
Featuring a 15.6-inch capacitive touch display, this product stands out with its high resolution of 1920x1080, full-function Type-C and HDMI dual display interfaces, IPS hard screen technology, optical bonding, and support for ten-point capacitive touch. It exhibits extensive compatibility, capable of connecting with single-board computers such as the LattePanda series, Raspberry Pi 4B, Jetson Nano, as well as various desktop computers, laptop computers, mini PCs, industrial computers, and tablet computers. It is suitable for use in human-machine interaction scenarios, such as terminal device control panels, IoT control panels, and more.
Superior Performance Parameters
This 15.6-inch large screen display boasts a high resolution of 1920x1080, ensuring clear visual effects. It adopts IPS hard screen technology and an optical bonding process, further enhancing the display effect. The surface is treated with anti-glare, enhancing the user experience. In addition, it also supports ten-point capacitive touch.
FEATURES
FEATURES
Supports ten-point capacitive touch
Supports dual-channel audio output
Supports both Type-C and HDMI video transmission methods
The full-featured Type-C interface allows single-line connection for video, audio, and touch signals, and supports reverse PD power delivery.
Type-C does not require distinguishing between power and data interfaces, supporting blind insertion.
Compatible with Raspberry Pi 4B, LattePanda, LattePanda Alpha/Delta, and LattePanda Delta 3 installations.
Compatible with various desktop computers, laptops, mini PCs, industrial computers, and tablets.
APPLICATIONS
Human-Machine Interaction Panel
Terminal Control Panel
IoT Control Panel
SPECIFICATION
Screen parameters
LCD size: 15.6 inches
Resolution: 1920×1080
Pixel pitch (um): 179.25(H) × 179.25(V)
Pixel arrangement : RGB Vertical Stripe
Color gamut: 45%
Display colors: 262k (6-bit)
Active area(mm): 344.16(H)×193.59(V)
Surface treatment: Anti-Glare
Surface hardness: 3H
Brightness: 250cd/㎡
Refresh rate: 60Hz
Transmittance: ≥86%
View angle: Full-view angle
Number of touch: 10
Touch panel hardness: ≥6H
Bonding method: Optical bonding

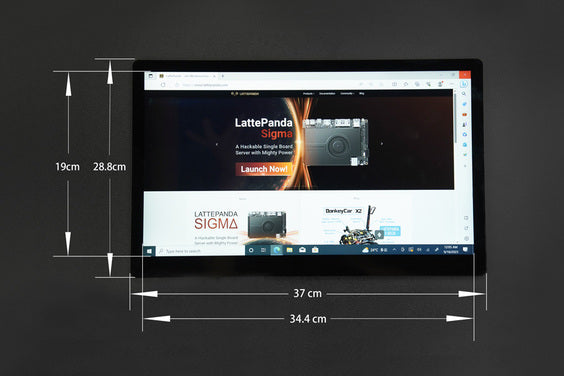

Outline dimension(mm): 369.5(H)×288.6(V)×5.2(D)
Interface: eDP
LCD brand: BOE
Operating temperature: 0~+50℃
Weight: 766g

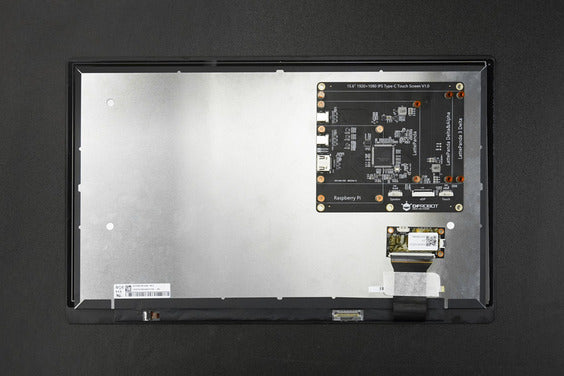

Display driver board parameters
Display interface: Type-C/HDMI
Speaker interface: MX1.25-4P
Touch interface: Type-C
Power interface: Type-C
Power voltage: PD3.0, 5~20V
Mounting hole size: Hole diameter 3.0mm
PCB size(mm): 125(V)×110(H)×1.6(D)
Touch control board parameters
Touch chip: ILI2511
Touch interface: MX1.25-4P
Mounting hole size: Hole diameter 3.0mm
PCB size(mm): 50(H)×26(V)×4.8(D)
DOCUMENTS
SHIPPING LIST
15.6" 1920×1080 IPS Type-C Capacitive Touch Screen ×1
Display Driver Board ×1
Touch Control Board ×1
eDP Screen Connection Cable 210mm ×1
Dual-Head MX1.25-4P Touch Screen Cable ×1
HDMI A to A Adapter Module for LattePanda Delta 3 ×1
HDMI A to A Adapter Module for LattePanda Delta/Alpha ×1
HDMI A to D Adapter Module for Raspberry Pi ×1
M3×6+8mm Single-Head Copper Pillar × 5
M3×6+9mm Single-Head Copper Pillar × 5
M2.5×6+8mm Single-Head Copper Pillar ×5
M3×6 Round Head Screw × 5
M2.5×6 Round Head Screw ×5
Product Certificate and Warranty Card ×1
