3.5inch Touch Display Module for Raspberry Pi Pico, 65K Colours, 480×320, SPI
10 units will be available shortly.
3.5" Touch Display Module For Pico
Resistive Touch Controller XPT2046, ILI9488 Driver, Using SPI Bus
Comes with Raspberry Pi Pico C/C++ and MicroPython Demo
- Size
3.5" - Resolution
480×320 - Display Color
65K Colors - Display Panel
IPS - Touch Type
Resistive - Interface
SPI - Driver/Controller
ILI9488/XPT2046
Features At A Glance

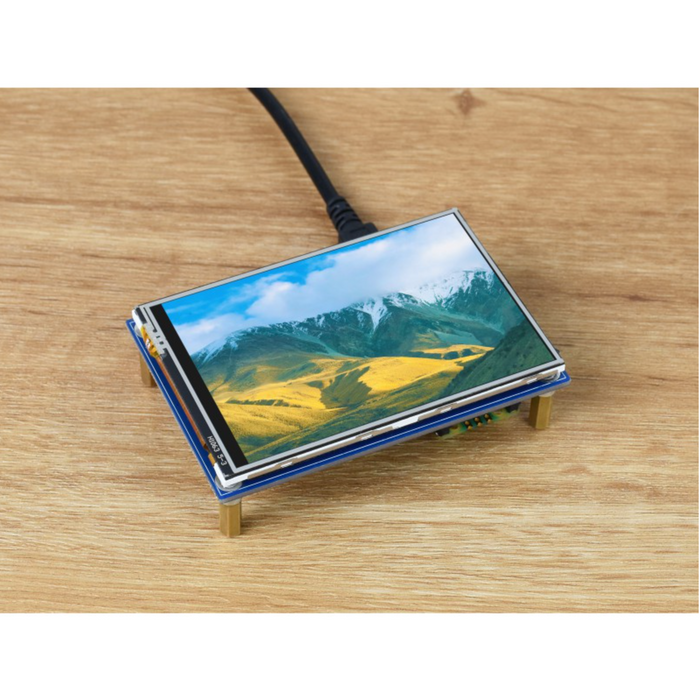

- 480×320 resolution, IPS screen, 65K colors, clear and colorful displaying effect
- Dedicated touch controller, bringing more smooth touching effect than AD-controlled solutions
- MicroSD card slot for storing images and direct displaying them easily
- Programmable backlight control, power saving
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
OPERATING VOLTAGERESOLUTIONCOMMUNICATION INTERFACEDISPLAY SIZEDISPLAY PANELPIXEL SIZEDRIVERDIMENSIONSTOUCH CONTROLLER
5V | 480×320 pixels
SPI | 73.44 × 48.96 mm
IPS | 0.153 × 0.153 mm
ILI9488 | 86.00 × 57.20 mm
XPT2046 |
SPI | 73.44 × 48.96 mm
IPS | 0.153 × 0.153 mm
ILI9488 | 86.00 × 57.20 mm
XPT2046 |

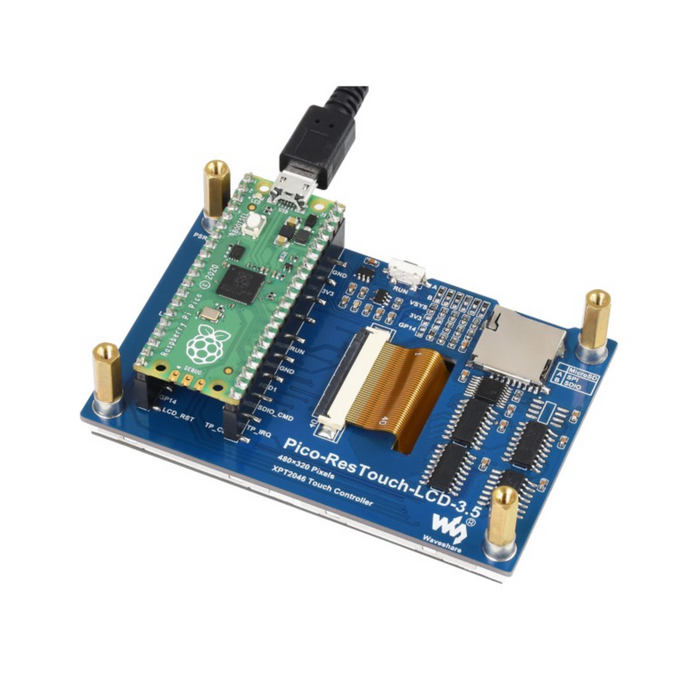

Raspberry Pi Pico Header Compatibility
Onboard Female Pin Header For Direct Attaching To Raspberry Pi Pico
Raspberry Pi Pico is NOT included.
- Rapsberry Pi Pico header
- CAT6219
LCD backlight power chip - RT9193-33
3.3V linear voltage regulator - Pico reset button
- MicroSD card slot
- XPT2046
resistive touch controller - 74HC4040
counter chip, for clock frequency division - 74HC04D
inverter chip - 74HC4094
serial data to parallel data converter
Pinout Definition
Outline Dimensions
Wiki
Documents
Demo codes
Software
Note: Check the wiki link above for more and other information!
