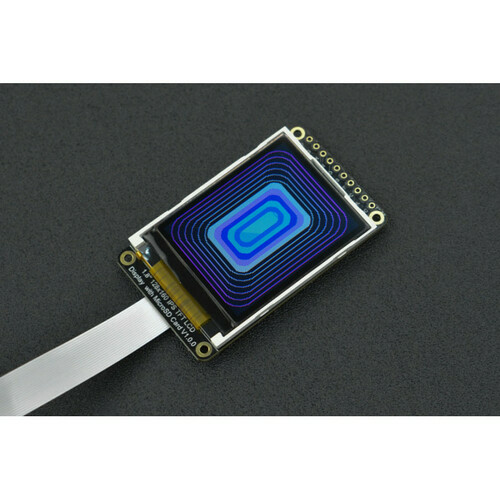

Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Card Slot (Breakout)

Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Card Slot (Breakout)

189 units will be available shortly.

Express post shipping available (product is on backorder)
 More payment options

This ST7735S 1.8" TFT Display features a resolution of 128×160 and SPI (4-wire) communication. Integrated with an SD card slot, it allows to easily read full-color bitmaps from the SD card.

The module provides users with two wiring methods: pin header wiring and GDI (General Display interface). You can directly connect the display to a FireBeetle main controller using an FPC cable. Plug and play, easy to wire. Besides, the display supports a low refresh rate and offers a good display effect and strong versatility.

It can be used in applications like sensor monitoring and alarm, Arduino temperature monitor, fan controller, etc.

Connect Diagram



Features
  • 128x160 Resolution
  • SPI (4-wire) communication
  • Integrated with an SD card slot

    • Applications
  • Sensor monitoring and alarm
  • Arduino temperature monitor
  • Fan controller

    • Specification
  • Operating Voltage: 3.3 V - 5 V
  • TFT Viewing Angle: 120 degrees
  • Pixels: 128 columns x 160 rows
  • Communication: SPI
  • Interface Mode: GDI, pin header
  • Driver Chip: ST7735S
  • Full-screen Power Consumption: 0.11 W
  • MicroSD Slot x 1
  • Operating Temperature: -10°C - +60°C
  • Display Area: 26 mm x 35 mm/1.02x1.38"
  • Module Dimension: 34 mm x 55 mm/1.34x2.17"
  • Mounting Hole Pitch: 29 mm/1.14", 50 mm/1.97"
  • Mounting Hole Size: 2 mm/0.08"

    • Documents
  • Product wiki
  • Schematics
  • Chip Datasheet
  • 3D File
  • 2D File

    • Shipping List
  • Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Card Slot (Breakout) x1
  • GDI Display Cable x1
  • 10P Pin Connector x1

    • The Fermion: 1.8" 128x160 IPS TFT LCD Display with MicroSD Card Slot (Breakout) appears in the following collections:

    SKU DF-DFR0928
